FG712_0100

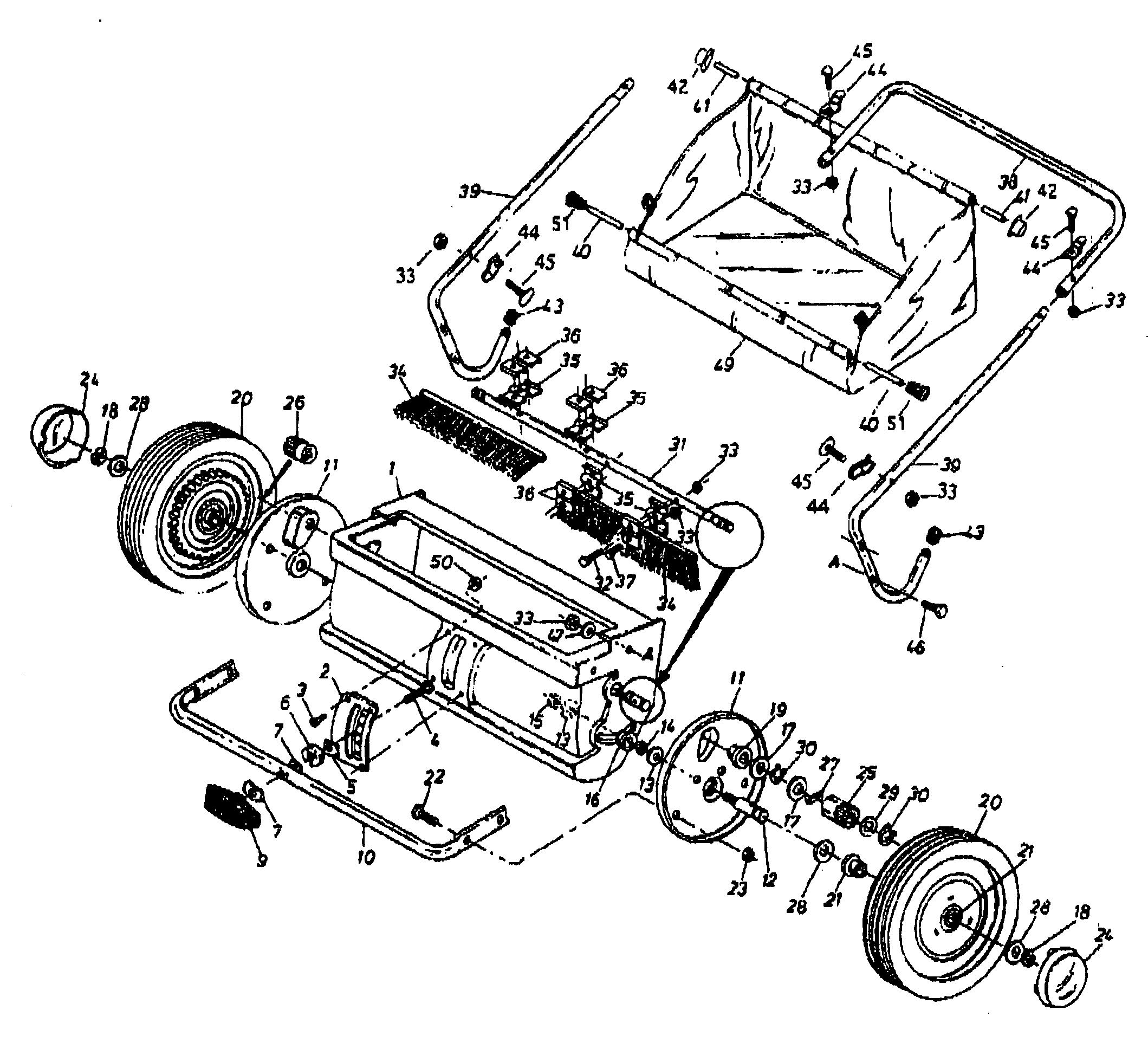

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG712_0100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44848-AF OWNER'S MANUAL £8.75 Add
001 44600-AF Housing 44600 £94.70 Add
002 23784-AF Height Adjustment Plate 23784 £18.40 Add
003 44286-AF Bolt, Hex 10-32 x 5/8" 44286 £3.22 Add
004 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.48 Add
005 44680-AF Washer, Nylon 44680 £4.05 Add
006 1543-69-AF Washer, Nylon 1543-069 N/A POA
007 44695-AF Washer, Bowed 44695 £4.05 Add
008 R19111116-AF WASHER £3.76 Add
009 43720-AF KNOB (RED) £7.83 Add
010 44946-AF Height Adjustment Tube 44946 £38.29 Add
011 23866-AF Dust Cover 23866 £22.39 Add
012 44598-AF Axle 44598 £11.94 Add
013 43070-AF Washer, 3/8" £3.91 Add
014 44684-AF Jam Nut, 3/8-24 Thread 44684 £4.05 Add
015 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
016 44685-AF Spacer, Shoulder 44685 £5.99 Add
017 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
018 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
019 44679-AF Flange Bearing, .59 44679 £5.99 Add
020 44844-AF WHEEL ASS'Y. 44575-AF £71.83 Add
021 741-0249 BEARING £8.44 Add
022 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £4.05 Add
023 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
024 2674-32-AF Hub Cap 2674-32 N/A POA
025 43885-AF PINION LH 11TEETH £21.85 Add
026 43886-AF Gear, Pinion R.H. (not shown) 43886 £23.48 Add
027 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
028 44125-AF Washer, Flat .62" x 1.00" 44125 £4.05 Add
029 44006-AF WASHER £5.01 Add
030 AF-1650-21 RETAINING RING £2.61 Add
031 23782-AF Brush Shaft 23782 £78.03 Add
032 43661-AF HEX BOLT £3.11 Add
033 712-0291 LOCK-NUT £2.77 Add
034 44681-AF Brush, 13-1/4" 44681 £18.75 Add
035 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
036 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
037 43012-AF BOLT £3.32 Add
038 44603-AF Upper Handle Tube 44603 £44.53 Add
039 44595-AF Handle Leg Tube 44595 £49.79 Add
040 44683-AF ROD BAG £10.04 Add
041 44682-AF Bag Rod, 1/4" x 28-1/2" 44682 £10.89 Add
042 726-0106 CAP SPEED NUT £3.33 Add
043 44688-AF Cap, Plastic 44688 £4.05 Add
044 44696-AF BAG ROD CLIP £7.50 Add
045 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
046 1509-090 NO LONGER AVAILABLE N/A POA
047 43088-AF FLAT WASHER £3.11 Add
049 44845-AF BAG HOPPER £72.27 Add
050 43662-AF Lock Nut, 10-32 43662 £3.73 Add
051 44687-AF PLASTIC CAP £3.62 Add
