Parts list

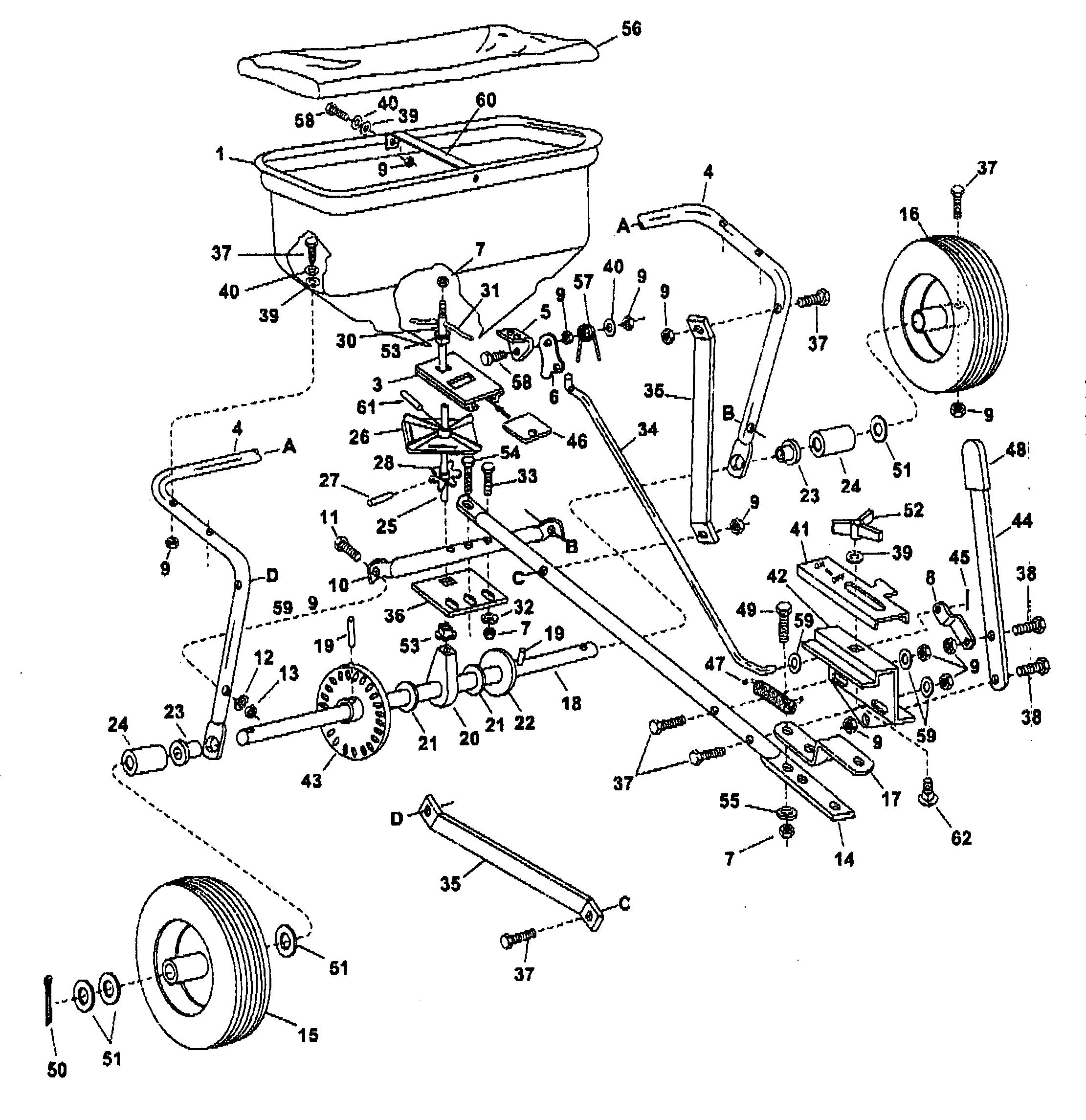

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46513-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44480-AF
|
Hopper 44480
|
£277.26
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44462-AF
|
HANDLE BARS AF-44462
|
£116.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
008
|
23756-AF
|
Flow Control Link 23756
|
£4.05
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
43808-AF
|
Tube, Crossover 43808
|
£57.98
|
Add
|
|
011
|
43084-AF
|
BOLT
|
£2.56
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
014
|
44487-AF
|
Tube, Hitch 44487
|
£63.99
|
Add
|
|
015
|
44458-AF
|
WHEEL ASSY 44458
|
£83.43
|
Add
|
|
016
|
44459-AF
|
ASS'Y, WHEEL & TIRE (A-F) AF-44459
|
£199.05
|
Add
|
|
017
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
018
|
23522-AF
|
CROSS SHAFT PIVOT PIN 23522
|
£61.35
|
Add
|
|
019
|
43851-AF
|
ROLL PIN
|
£13.84
|
Add
|
|
020
|
43871-AF
|
Bushing, Axle Shaft 43871
|
£22.95
|
Add
|
|
021
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
022
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
|
023
|
44798-AF
|
BEARING FLANGE
|
£13.52
|
Add
|
|
024
|
44474-AF
|
Spacer, 2.38" Long 44474
|
£5.79
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
033
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
|
034
|
44469-AF
|
Rod, Flow Control 44469
|
£28.51
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23762-AF
|
Shaft Support Plate 23762
|
£11.15
|
Add
|
|
037
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
038
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
23755-AF
|
Gage, Flow Control 23755
|
£20.71
|
Add
|
|
042
|
23754-AF
|
Bracket, Flow Control Mount 23754
|
£19.59
|
Add
|
|
043
|
62474-AF
|
ASSY GEAR
|
£87.01
|
Add
|
|
044
|
23757-AF
|
SPRING ASSY 23757
|
£13.83
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
43000-AF
|
SPRING EXTENSION
|
£11.08
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
050
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
051
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
052
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
053
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
054
|
43054-AF
|
Bolt, Hex 3/8-16 x 2" Lg. * 43054
|
£5.79
|
Add
|
|
055
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
056
|
43962
|
COVER, VINYL HOPPER
|
£109.92
|
Add
|
|
057
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
058
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
059
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
060
|
23697-AF
|
Strap, Hopper 23697
|
£33.01
|
Add
|
|
061
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
062
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
