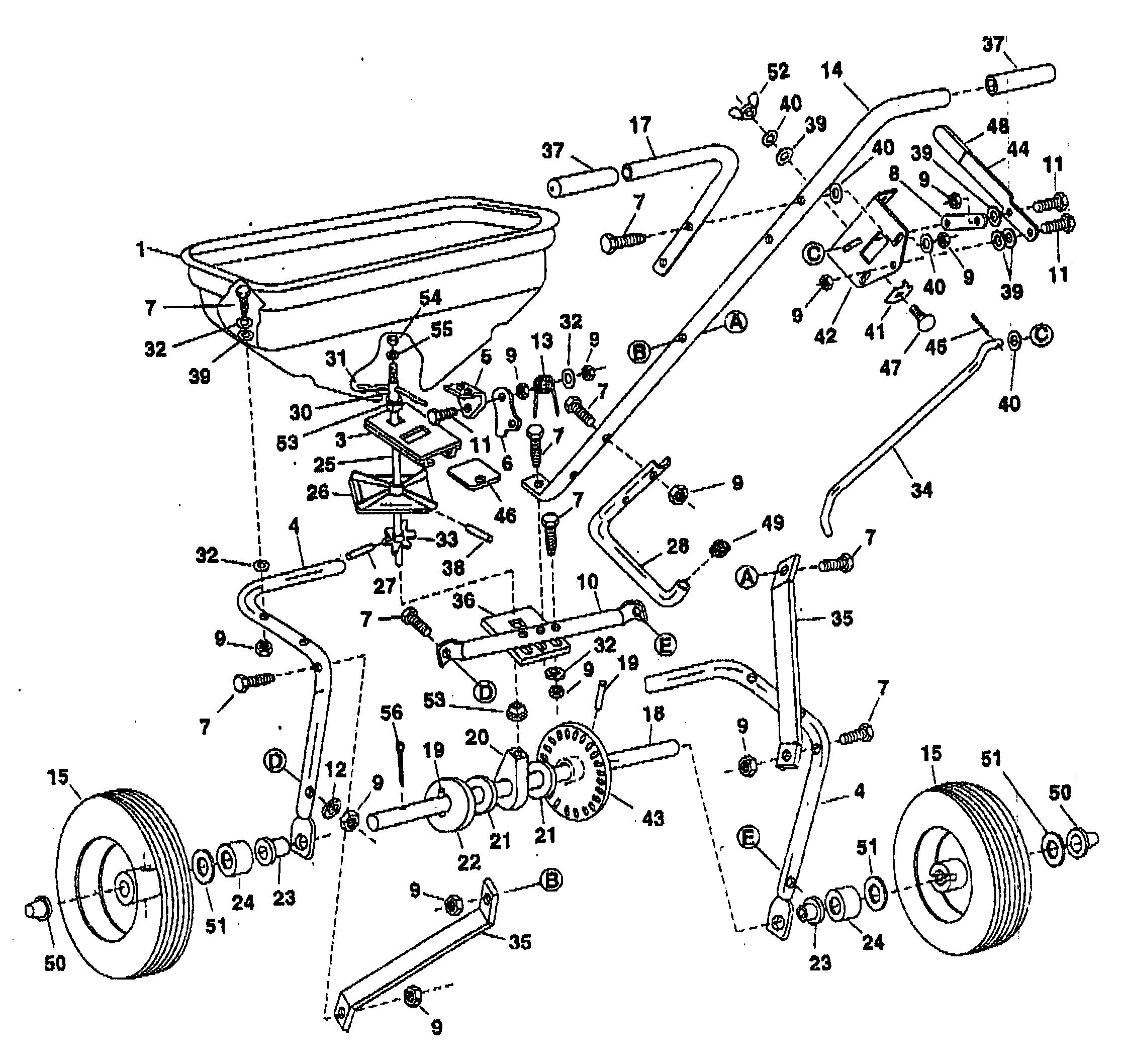

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
48319-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44624-AF
|
Hopper 44624
|
£225.10
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44588-AF
|
Tube, Frame 44588
|
£89.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
008
|
24857-AF
|
Flow Control Link
|
£3.97
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
44591-AF
|
Tube, Crossover 44591
|
£24.35
|
Add
|
|
011
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
012
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44590-AF
|
Tube, Handle (Long)
|
£52.25
|
Add
|
|
015
|
47052-AF
|
WHEEL
|
£102.06
|
Add
|
|
017
|
44589-AF
|
Tube, Handle (Short)
|
£19.65
|
Add
|
|
018
|
24407-AF
|
Shaft, Axle 24407
|
£57.95
|
Add
|
|
019
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
020
|
44672-AF
|
Bushing, Axle Shaft 44672
|
£18.96
|
Add
|
|
021
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
022
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
023
|
741-0248
|
Bearing, Flange
|
£14.56
|
Add
|
|
024
|
46501-AF
|
Tube, Spacer 46501
|
£8.40
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44587-AF
|
Tube, Leg Stand
|
£27.59
|
Add
|
|
029
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
033
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
034
|
44514-AF
|
Rod, Flow Control 44514
|
£26.81
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780-AF
|
Support, Shaft
|
£7.06
|
Add
|
|
037
|
44482-AF
|
Grip, Handle 44482
|
£7.23
|
Add
|
|
038
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
041
|
24858-AF
|
STOP (ADJUSTABLE)
|
£3.49
|
Add
|
|
042
|
24855-AF
|
Bracket, Flow Control Mount 24855
|
£19.79
|
Add
|
|
043
|
62798-AF
|
GEAR ASSY
|
£98.33
|
Add
|
|
044
|
24856-AF
|
Flow Control Arm
|
£13.58
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
44481-AF
|
Cap, Vinyl 44481
|
£4.05
|
Add
|
|
050
|
44663-AF
|
CAP NUT
|
£4.31
|
Add
|
|
051
|
R19171816
|
WASHER, FLET 17/32" I.D.
|
N/A
|
POA
|
|
052
|
47141-AF
|
NUT NYLON WING 1/4-20 NU34
|
£3.49
|
Add
|
|
053
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
054
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
|
055
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
056
|
47063-AF
|
COTTER PIN
|
£3.49
|
Add
|
