FG326_0010

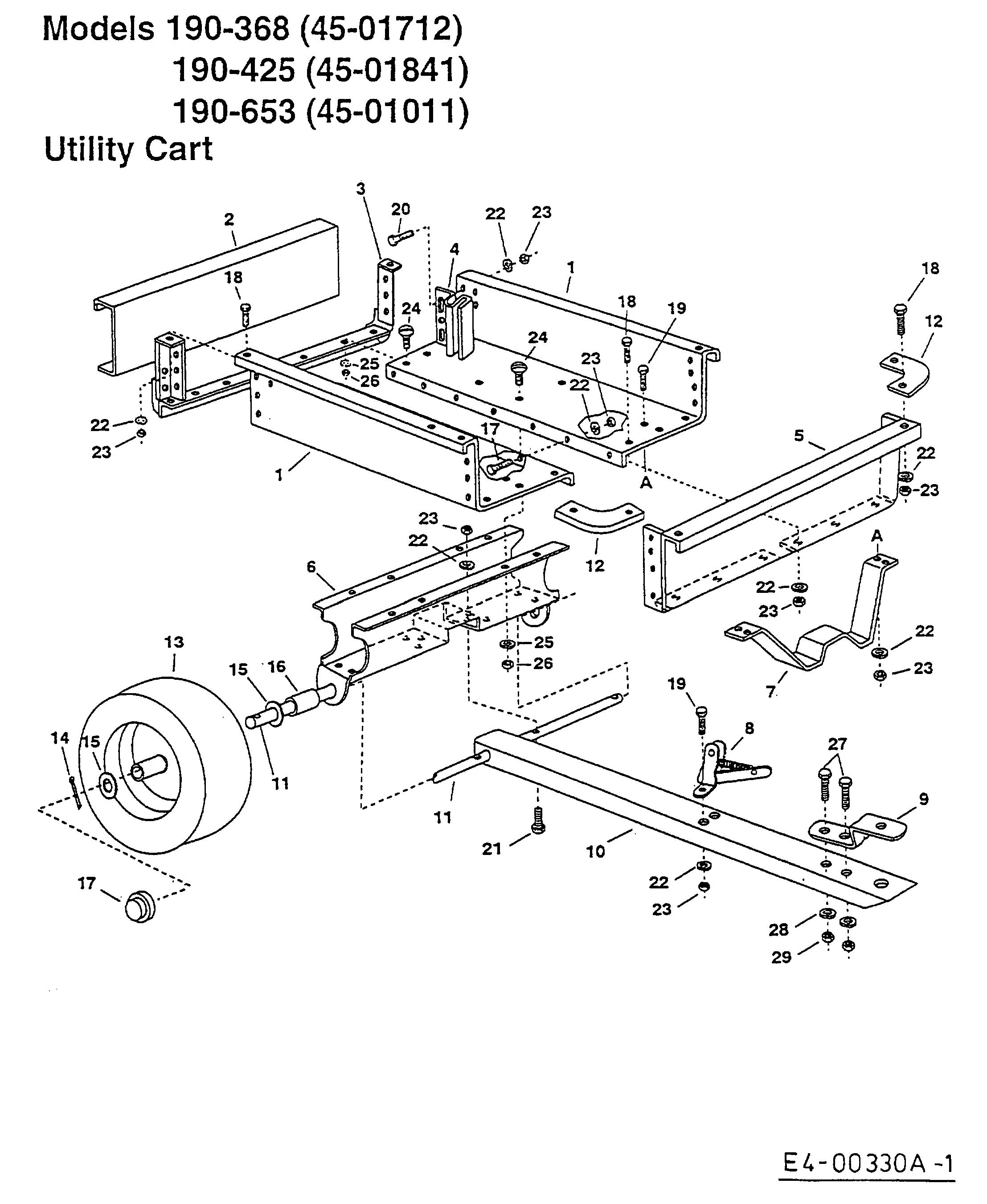

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG326_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 23985-AF Cart Body £163.79 Add
001 23984-AF CART BODY (425) £306.21 Add
002 23502-AF Tailgate 23502 £102.82 Add
002 23504-AF Tailgate 23504 £121.39 Add
003 62458-AF Tailgate Reinforcement Bracket 62458 £93.79 Add
003 62457-AF Tailgate Reinforcement Bracket 62457 £98.16 Add
004 23548-AF Tailgate Guide 23548 £10.62 Add
005 23492-AF Front Panel 23492 £92.13 Add
005 23490-AF Front Panel 23490 £163.81 Add
006 23506-AF SUPPORT-AXLE-FR 23506 £125.04 Add
006 23507-AF Wheel Support 23507 £228.62 Add
006 23487-AF Wheel Support 23487 £228.62 Add
007 23297-AF LATCH STAND BRACKET £54.04 Add
008 62455-AF ASS`Y, LATCH LOCK AF-62455 £51.08 Add
009 23014-AF HITCH BRACKET £30.16 Add
010 23986-AF TONGUE (10.CU.FT.) .75" AXLE AF-23986 £56.73 Add
010 23988-AF DRAW BAR TONGUE (368) N/A POA
010 23989-AF TUBE-TONGUE AF-23989 £83.06 Add
011 23026-AF Axle, 3/4" 23026 £99.98 Add
011 23488-AF Axle, Wheel 1" Dia. 23488 £119.21 Add
012 23484-AF Front Corner Cap 23484 £20.77 Add
013 43008-AF WHEEL 4.8 x 4 £57.49 Add
013 46487-AF ASS`Y, WHL W/BRGS 16X5 AF-46487 £119.01 Add
013 69599-AF WHEEL ASSY £244.98 Add
014 43010-AF COTTER PIN £3.32 Add
014 43093-AF COTTER PIN £2.96 Add
015 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.01 Add
015 43601-AF WASHER £8.56 Add
016 44678-AF Spacer (45-0351) 44678 £13.40 Add
017 731-0484A HUB CAP £4.81 Add
018 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £3.95 Add
019 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.31 Add
020 43012-AF BOLT £3.16 Add
021 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.36 Add
021 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.64 Add
022 43177-AF Washer, Lock 1/4" I.D.* 43177 £2.93 Add
023 43178-AF Hex Nut, 1/4-20 Thread £3.21 Add
024 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £2.96 Add
025 43086-AF Lock Washer, 5/16" 43086 £3.31 Add
026 43083-AF HEX NUT £3.16 Add
027 43001-AF HEX BOLT (RED) £3.32 Add
028 736-0169 L. WASHER £2.75 Add
029 712-0798 HEX. NUT £7.25 Add
