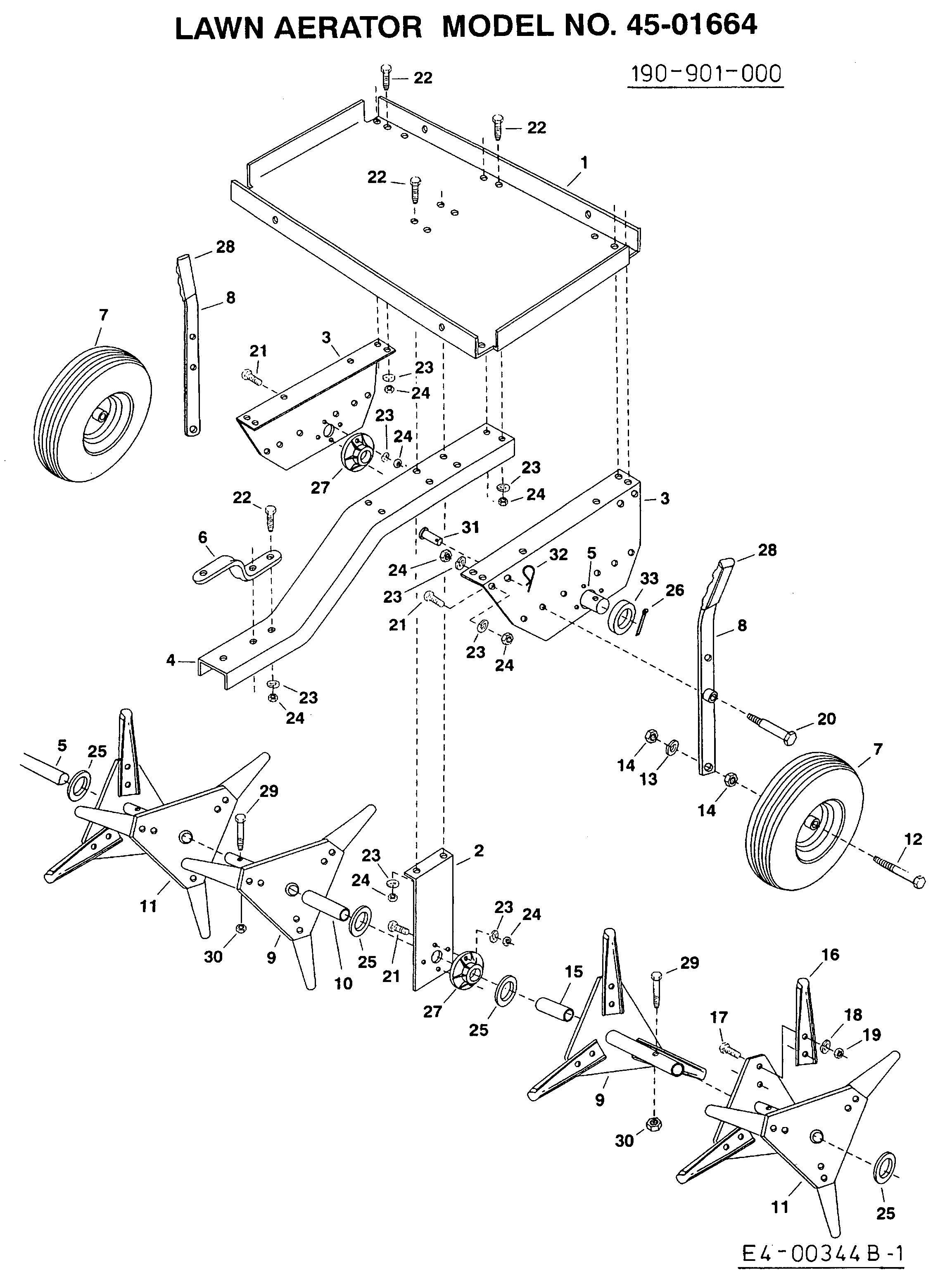

FG327_0010

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	47014-AF	OWNERS MANUAL	N/A	POA
001	24385-AF	TRAY, WEIGHT	£101.71	Add
002	24106-AF	MIDDLE BRACE	£11.98	Add
003	24102-AF	FRAME SIDE BRACKET	N/A	POA
004	24103-AF	TONGUE	£41.74	Add
005	24168-AF	HANDLE 24168	£81.40	Add
006	23687-AF	Hitch Bracket 23687	£33.95	Add
007	47051-AF	WHEELS	N/A	POA
008	63262-AF	ASS`Y, TRANSPORT BAR (WLDM) 63262	£47.92	Add
009	63259-AF	SPOOL ASSEMBLY (SINGLE)	£47.40	Add
010	46537-AF	NLA 46537	£25.05	Add
011	63257-AF	SPOOL ASSEMBLY (DOUBLE)	£61.23	Add
012	47058-AF	HEX BOLT 1/2-13X4"LG AF-47058	£5.54	Add
013	43353-AF	Lock Washer, 1/2" 43353	£3.08	Add
014	43019-AF	Hex Jam Nut, 1/2-13 Thd. 43019	£4.58	Add
015	46499-AF	SPACER, 2.50" LG. (SHORT)	£6.39	Add
016	23084-AF	MESSERFLÜGEL 23084	£12.88	Add
017	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
018	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
019	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
020	43029-AF	BOLT. SHOULDER	£12.88	Add
021	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
022	43001-AF	HEX BOLT (RED)	£3.49	Add
023	736-0169	L. WASHER	£2.89	Add
024	43082-AF	HEX LOCK NUT	£4.12	Add
025	44008-AF	WASHER	£3.24	Add
026	714-0121	PIN-COTTER	£10.72	Add
027	45148-AF	Hub, Spike Disk 45148	£7.23	Add
028	44482-AF	Grip, Handle 44482	£7.23	Add
029	1509-090	NO LONGER AVAILABLE	N/A	POA
030	712-0291	LOCK-NUT	£2.77	Add
031	44044-AF	CLEVIS PIN 3/8" X 3/4" LG.	N/A	POA
032	43055-AF	COTTER PIN	£6.04	Add
033	46754-AF	SPACER, 1"ID X .25" LG 46754	£9.82	Add
