FG331_0010

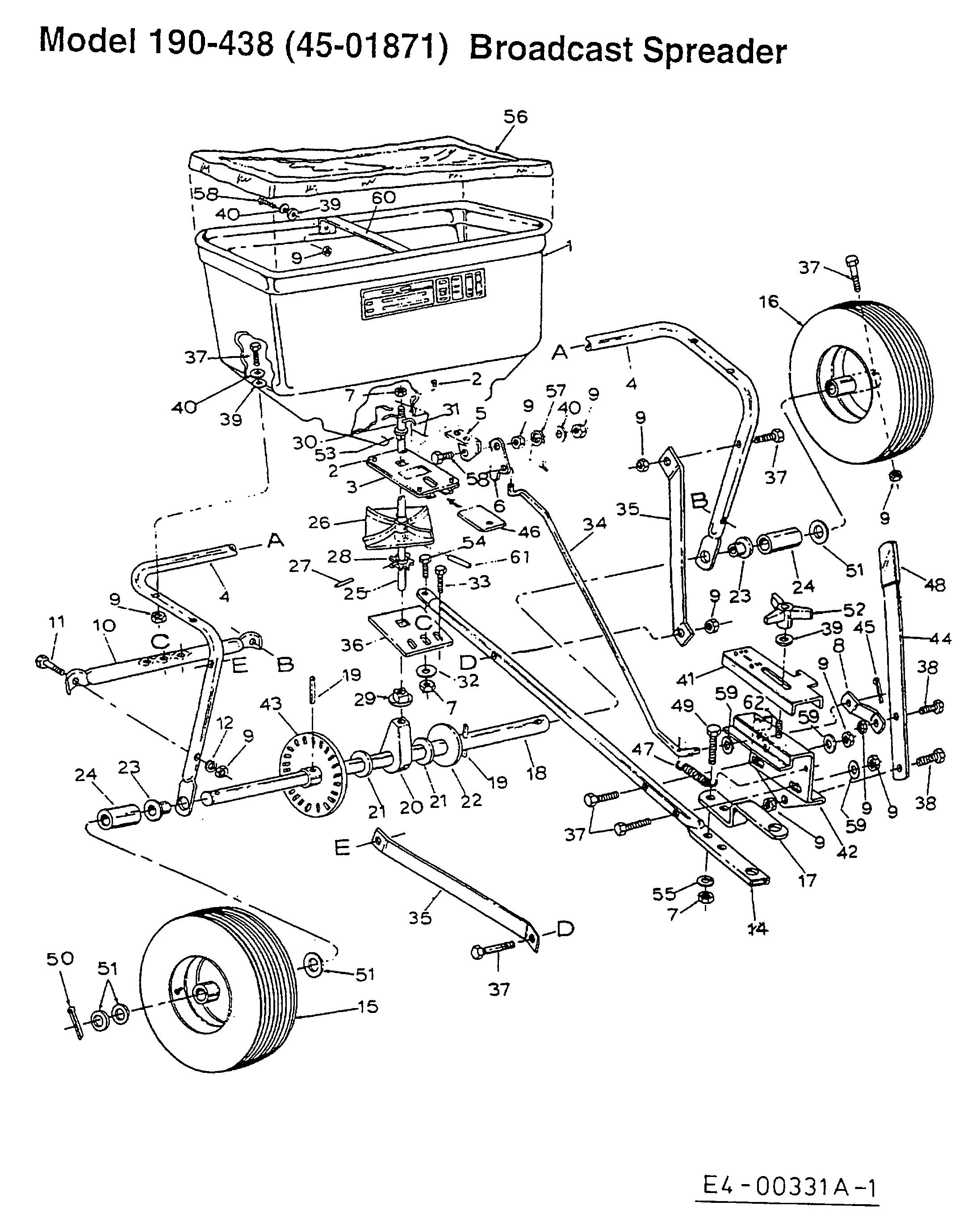

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG331_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 44480-AF Hopper 44480 £277.26 Add
002 43882-AF Rivet, Stainless 43882 £4.85 Add
003 62482-AF ASSY GUIDE CLOSURE £57.27 Add
004 44462-AF HANDLE BARS AF-44462 £116.24 Add
005 23753-AF SLIDE GATE ANGLE BRACKET £3.62 Add
006 23758-AF SLIDE GATE BRACKET £3.87 Add
007 43082-AF HEX LOCK NUT £4.12 Add
008 23756-AF Flow Control Link 23756 £4.05 Add
009 712-0291 LOCK-NUT £2.77 Add
010 43808-AF Tube, Crossover 43808 £57.98 Add
011 43084-AF BOLT £2.56 Add
012 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
013 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
014 44487-AF Tube, Hitch 44487 £63.99 Add
015 44458-AF WHEEL ASSY 44458 £83.43 Add
016 44459-AF ASS'Y, WHEEL & TIRE (A-F) AF-44459 £199.05 Add
017 23687-AF Hitch Bracket 23687 £33.95 Add
018 23522-AF CROSS SHAFT PIVOT PIN 23522 £61.35 Add
019 43851-AF ROLL PIN £13.84 Add
020 43871-AF Bushing, Axle Shaft 43871 £22.95 Add
021 1540-032 NO LONGER AVAILABLE N/A POA
022 1540-162-AF Washer, Flat 1/2" 1540-162 £6.62 Add
023 44798-AF BEARING FLANGE £13.52 Add
024 44474-AF Spacer, 2.38" Long 44474 £5.79 Add
025 23524-AF SHAFT SPROCKET (OBSOLETE) (OBSOLETE) N/A POA
026 04367-AF SPREADER PLATE £33.08 Add
027 43850-AF ROLL PIN £6.78 Add
028 44468-AF SPROCKET 6T £6.85 Add
029 43852-AF LAGERBUCHSE AUS NYLON 43852 N/A POA
030 23766-AF SLEEVE AGITATOR (OBSOLETE) (OBSOLETE) N/A POA
031 43878-AF WIRE AGITATOR £14.86 Add
032 43070-AF Washer, 3/8" £3.91 Add
033 41576-AF Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576 £4.05 Add
034 44469-AF Rod, Flow Control 44469 £28.51 Add
035 23525-AF Brace, Hitch 23525 £38.89 Add
036 23762-AF Shaft Support Plate 23762 £11.15 Add
037 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.58 Add
038 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
039 1543-69-AF Washer, Nylon 1543-069 N/A POA
040 43088-AF FLAT WASHER £3.11 Add
041 23755-AF Gage, Flow Control 23755 £20.71 Add
042 23754-AF Bracket, Flow Control Mount 23754 £19.59 Add
043 62474-AF ASSY GEAR £87.01 Add
044 23757-AF SPRING ASSY 23757 £13.83 Add
045 44101-AF Cotter Pin 3/32" x 3/4" Lg.* 44101 £3.91 Add
046 23533-AF PLATE CLOSURE £15.33 Add
047 43000-AF SPRING EXTENSION £11.08 Add
048 43848-AF Grip, Flow Control Arm 43848 £5.99 Add
049 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
050 43093-AF COTTER PIN £3.11 Add
051 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.26 Add
052 43849-AF Knob, Plastic 1/4-20 Thd. 43849 £24.61 Add
053 44285-AF BUSHING DELRIN £5.63 Add
054 43054-AF Bolt, Hex 3/8-16 x 2" Lg. * 43054 £5.79 Add
055 736-0169 L. WASHER £2.89 Add
056 43962 COVER, VINYL HOPPER £109.92 Add
057 44566-AF SPRING TORSION £4.74 Add
058 43012-AF BOLT £3.32 Add
059 R19111116-AF WASHER £3.76 Add
060 23697-AF Strap, Hopper 23697 £33.01 Add
061 46055-AF PIN SPRING £3.49 Add
062 44950-AF BOLT £3.62 Add
