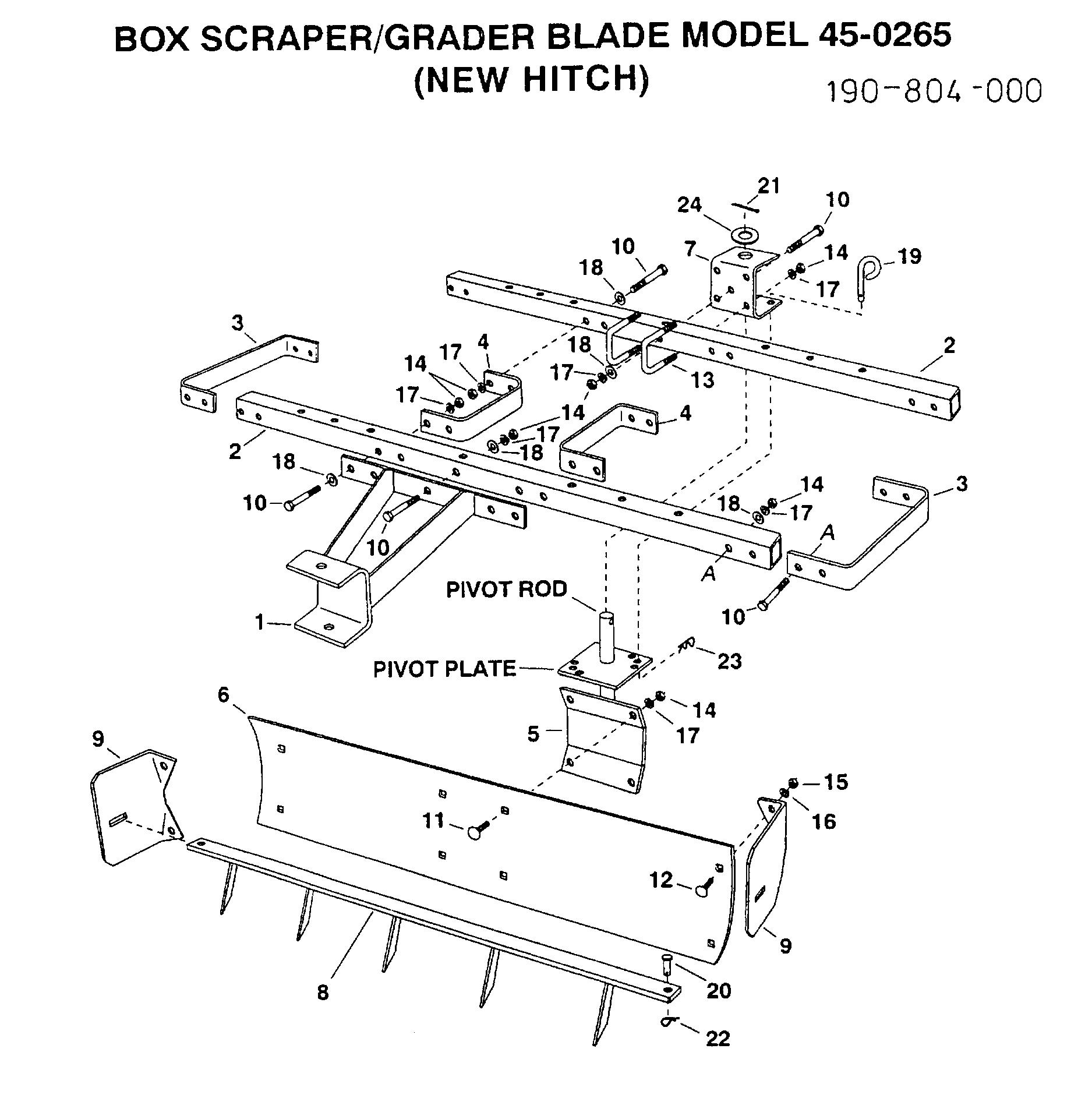

FG345_0010

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	47056-AF	OWNERS MANUAL	N/A	POA
001	63656-AF	HITCH ASSY AF-63656	£125.50	Add
002	46848-AF	FRAME TUBE AF-46848	£72.05	Add
003	24223-AF	FRAME BRACE (END) AF-24223	£23.80	Add
004	24224-AF	FRAME BRACE (MIDDTE) AF-24224	£22.04	Add
005	63506-AF	FASTENING ELEMENT AF-63506	£178.49	Add
006	24233-AF	SHLD-MOTOR 240V AF-24233	£269.59	Add
007	24231-AF	BRACKET ASSY-GUIDE AF-24231	£66.87	Add
008	63507-AF	SCARIFIER ASSY. AF-63507	£130.35	Add
009	24237-AF	BOX END PLATE AF-24237	£57.33	Add
010	43432-AF	Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432	£4.05	Add
011	43350-AF	Bolt, Carriage 3/8-16 x 1" Lg. 43350	£3.73	Add
012	44326-AF	BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326	£3.49	Add
013	46853-AF	U-BOLT,3/8-16 AF-46853	£9.37	Add
014	712-0798	HEX. NUT	£7.61	Add
015	43083-AF	HEX NUT	£3.32	Add
016	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
017	736-0169	L. WASHER	£2.89	Add
018	43070-AF	Washer, 3/8"	£3.91	Add
019	43038-AF	STECKER (AF-43038) 43038	£6.44	Add
020	44044-AF	CLEVIS PIN 3/8" X 3/4" LG.	N/A	POA
021	46855-AF	COTTER PIN 3/16"X2"LG AF-46855	£3.91	Add
022	43055-AF	COTTER PIN	£6.04	Add
023	43343-AF	PIN COTTER	£4.20	Add
024	23336-AF	Washer, Special 23336	£4.88	Add
