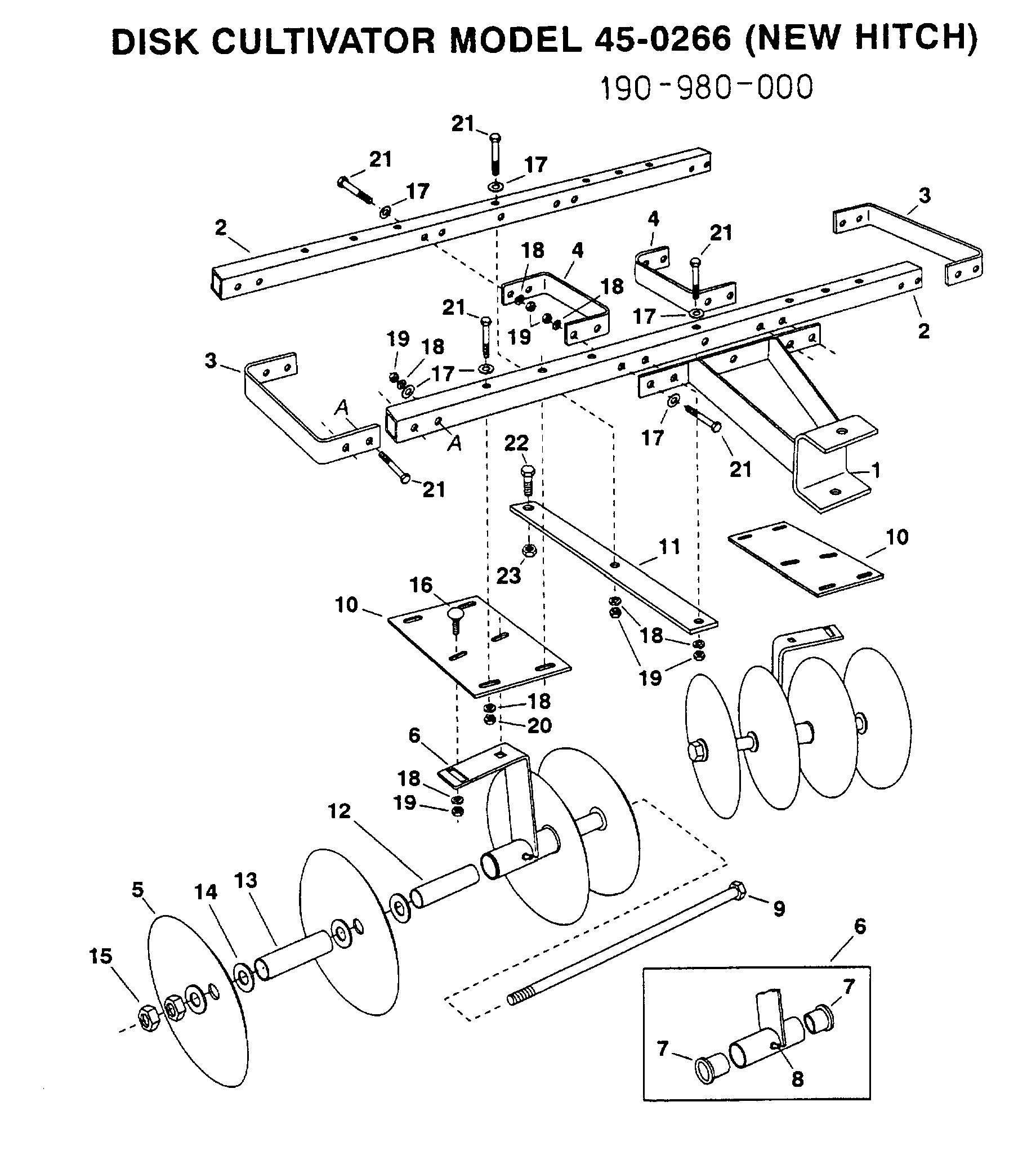

FG346_0010

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	47057-AF	OWNERS MANUAL	N/A	POA
001	63656-AF	HITCH ASSY AF-63656	£125.50	Add
002	46848-AF	FRAME TUBE AF-46848	£72.05	Add
003	24223-AF	FRAME BRACE (END) AF-24223	£23.80	Add
004	24224-AF	FRAME BRACE (MIDDTE) AF-24224	£22.04	Add
005	46856-AF	BLACK DSK AF-46856	£30.04	Add
006	63510-AF	BEARING HANGER BRAKET ASSY AF-63510	£104.98	Add
007	44488-AF	WHEEL BEARING	£6.55	Add
008	46858-AF	GREASE FITTING (INCLUDED IN #63510)	N/A	POA
009	46857-AF	HEX BOLT 3/4-10X16"LG AF-46857	£51.42	Add
010	24226-AF	BLOCK,TRANSMISSION,COVER AF-24226	£33.57	Add
011	24241-AF	FLAP:SCREW ON: AF-24241	£22.18	Add
012	24240-AF	BUSH AF-24240	£8.65	Add
013	46859-AF	SPACER AF-46859	£11.45	Add
014	1540-162RM	FLAT WASHER, 3/4" STD. WRT.	N/A	POA
015	46860-AF	HEX NUT, 3/4-10 THREAD	N/A	POA
016	43350-AF	Bolt, Carriage 3/8-16 x 1" Lg. 43350	£3.73	Add
017	43070-AF	Washer, 3/8"	£3.91	Add
018	736-0169	L. WASHER	£2.89	Add
019	712-0798	HEX. NUT	£7.61	Add
020	43082-AF	HEX LOCK NUT	£4.12	Add
021	43432-AF	Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432	£4.05	Add
022	43020-AF	BOLT 1/2-13 X 1-1/2 HEX HEAD	£7.06	Add
023	43262-AF	NUT 1/2-13 HEX LOCK	£6.20	Add
