FG361_0010

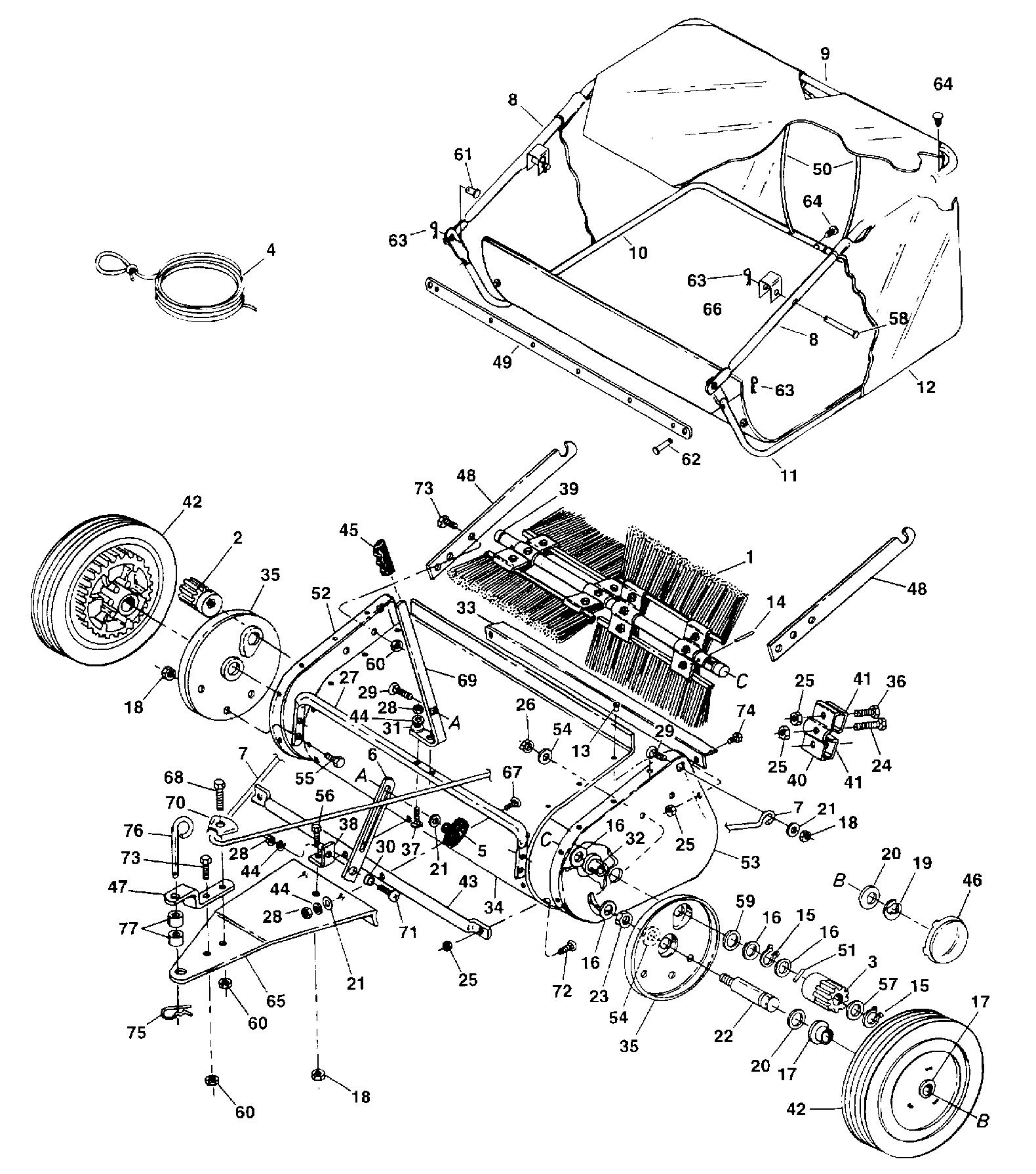

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	48439-AF	OWNERS MANUAL	N/A	POA
001	43903-AF	BRUSH, 32 IN SWEEP 43903	£23.03	Add
002	43886-AF	Gear, Pinion R.H. (not shown) 43886	£23.48	Add
003	43885-AF	PINION LH 11TEETH	£21.85	Add
004	43737-AF	Hopper Rope 43737	£5.99	Add
005	43720-AF	KNOB (RED)	£7.83	Add
006	23851-AF	STELLSCHIENE 23851	£11.94	Add
007	44964-AF	STRAP:LIFT HANDLE SUPPORT 44964	£19.44	Add
008	48466-AF	AF-48466 AF-48466	£30.81	Add
009	48470-AF	UPPER HOPPER TUBE - REAR	£75.73	Add
010	43930-AF	TUBE, HOPPER LOWER R.H. 32" AF-43930	£43.76	Add
011	43929-AF	LOWER HOPPER TUBE RIGHT AF-43929	£46.50	Add
012	48397-AF	HOPPER BAG AF-48397	£210.86	Add
013	C-9M5732	Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A	POA
014	43851-AF	ROLL PIN	£13.84	Add
015	AF-1650-21	RETAINING RING	£2.61	Add
016	40001-AF	Washer, Shim 1-1/8" x .594" x .025" 44007-AF	£3.58	Add
017	741-0249	BEARING	£8.44	Add
018	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
019	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
020	44125-AF	Washer, Flat .62" x 1.00" 44125	£4.05	Add
021	43081-AF	FLAT WASHER	£3.49	Add
022	44598-AF	Axle 44598	£11.94	Add
023	44684-AF	Jam Nut, 3/8-24 Thread 44684	£4.05	Add
024	43661-AF	HEX BOLT	£3.11	Add
025	712-0291	LOCK-NUT	£2.77	Add
026	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
027	44906-AF	ADJUSTING BAIL 44906	£40.31	Add
028	43083-AF	HEX NUT	£3.32	Add
029	43080-AF	CARRIAGE BOLT	£3.49	Add
030	23400-AF	SPACER	£5.85	Add
031	44695-AF	Washer, Bowed 44695	£4.05	Add
032	44909-AF	BRUSH SHAFT	£6.85	Add
033	23853-AF	BRACKET, GATE SLIDE ANGLE 23853	£18.25	Add
034	23848-AF	WRAPPER	£126.34	Add
035	25102-AF	Dust Cover	£13.50	Add
036	43012-AF	BOLT	£3.32	Add
037	44947-AF	Bolt, Curved Head 5/16-18 x 1-5/8" 44947	£4.05	Add
038	23869-AF	BRACKET, GATE SLIDE ANGLE 23869	£4.05	Add
039	23871-AF	SHAFT, BRUSH 32 IN SWEEP 23871	£87.00	Add
040	23580-AF	BRUSH RETAINER 42-0197	£9.24	Add
041	23581-AF	BRUSH RETAINER 42-0197	£5.45	Add
042	44930-AF	WHEEL ASSY 38" SWEEPER	£70.41	Add
043	44903-AF	HITCH TUBE	N/A	POA
044	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
045	43943-AF	Handle Grip 43943	£8.46	Add
046	2674-32-AF	Hub Cap 2674-32	N/A	POA
047	23014-AF	HITCH BRACKET	£31.67	Add
048	23812-AF	ARM, BAG MT LG 23812	£25.40	Add
049	23351-AF	STRAP, BAG FRAME 32 IN AF-23351	£25.88	Add
050	43926-AF	HOPPER SUPPORT ROD	£8.99	Add
051	47046-AF	DOWELL PIN 1/4 X 3/4	£3.56	Add
052	23846-AF	SIDE PANEL CART EXTENSION RH 23846	£55.92	Add
053	23845-AF	PANEL-LH SIDE CUB BEIGE 23845	£23.39	Add
054	R19131316-AF	Washer, .8175 x 1.5 x .06 R19131316	N/A	POA
055	44692-AF	Bolt, Hex 5/16-18 x 1/2" Lg. 44692	£4.05	Add
056	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
057	44006-AF	WASHER	£5.01	Add
058	43513-AF	CLEVIS PIN (RED)	£8.53	Add
059	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
060	43082-AF	HEX LOCK NUT	£4.12	Add
061	48366-AF	PIN	£8.53	Add
062	48365-AF	PIN	£4.92	Add
063	43055-AF	COTTER PIN	£6.04	Add
064	48402-AF	PLUG	£6.01	Add
065	23868-AF	TONGUE, HITCH 23868	£116.34	Add
066	23354-AF	BAIL 23354	£11.94	Add
067	44215-AF	Bolt, Carriage 5/16-18 x 1-3/4" 44215	£3.48	Add
068	43062-AF	BOLT 3/8-16 X 1-1/2 HEX HEAD 43062	£4.99	Add
069	23850-AF	Handle, Height Adjustment 23850	£28.31	Add
070	24161-AF	RING-SNAP-WHL WEIGHT AF-24161	£3.91	Add
071	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
072	44950-AF	BOLT	£3.62	Add
073	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
074	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
075	43343-AF	PIN COTTER	£4.20	Add
076	23353-AF	HITCH PIN	£19.20	Add
077	23368-AF	Tube, Hitch Spacer 23368	£8.18	Add
