FG360_0010

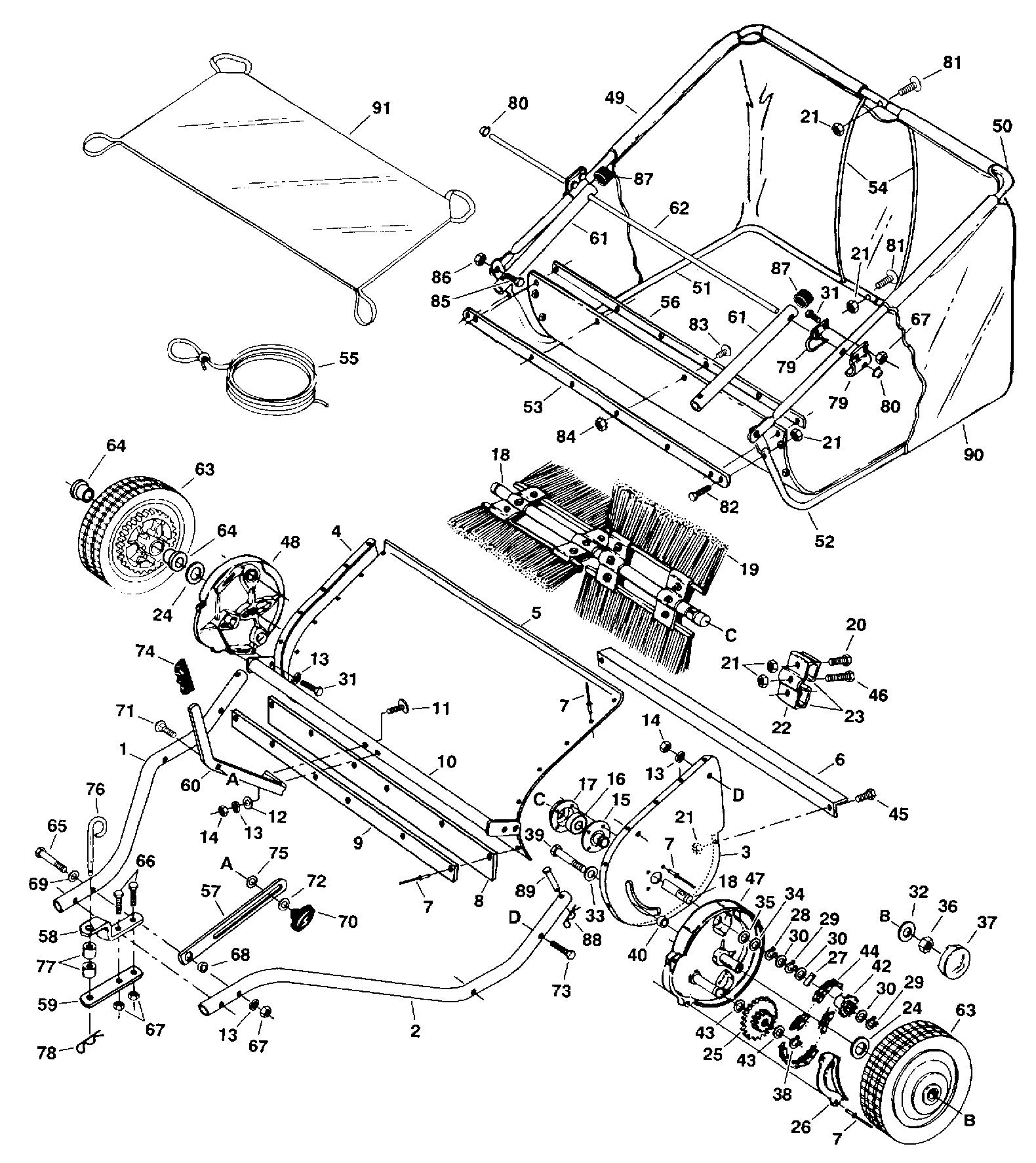

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG360_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
46815-AF OWNERS MANUAL £15.25 Add
001 46776-AF HITCH TUBE R.H. AF-46776 £45.85 Add
002 46777-AF HITCH TUBE L.H. AF-46777 £45.85 Add
003 24195-AF END PLATE, L.H. £45.80 Add
004 24196-AF END PLATE, R.H. £45.80 Add
005 24184-AF COVER-HARD TOP AF-24184 £33.96 Add
006 24185-AF BRACE,REAR SUPPORT AF-24185 £33.67 Add
007 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
008 46778-AF SKIRT,42" AF-46778 £24.73 Add
009 24186-AF RUBBER STRIP AF-24186 £19.24 Add
010 63468-AF HEIGHT ADJUSTMENT TUBE ASS'Y. £62.93 Add
011 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
012 44695-AF Washer, Bowed 44695 £4.05 Add
013 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
014 43083-AF HEX NUT £3.32 Add
015 62489-AF LAGERSCHALE AUßEN 62489 £42.99 Add
016 44232-AF BALL BEARING £35.66 Add
017 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
018 24198-AF SHAFT, BRUSH - 42" HS AF-24198 £98.51 Add
019 46780-AF BRUSH 42" £25.59 Add
020 43012-AF BOLT £3.32 Add
021 712-0291 LOCK-NUT £2.77 Add
022 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
023 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
024 44008-AF WASHER £3.24 Add
025 62490-AF GEAR SPROCKET SUB ASSY £72.48 Add
026 23573-AF DESTPROOF CAP 23573 £8.85 Add
027 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
028 43655-AF SPANNRING.75" 43655 £4.15 Add
029 AF-1650-21 RETAINING RING £2.61 Add
030 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
031 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
032 141-AF Washer, Flat 1-1/2" x .375" x .062" 141 £3.91 Add
033 43070-AF Washer, 3/8" £3.91 Add
034 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
035 736-0198 NO LONGER AVAILABLE N/A POA
036 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
037 2674-32-AF Hub Cap 2674-32 N/A POA
038 43894-AF STOPPING RING 43894 £3.76 Add
039 43932-AF BOLT, ROUND HEAD 43932 £5.18 Add
040 23400-AF SPACER £5.85 Add
041 43890-AF SPROCKET 43890 £26.12 Add
042 43889-AF SPROCKET LH £24.33 Add
043 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
044 44542-AF CHAIN £15.47 Add
045 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
046 43661-AF HEX BOLT £3.11 Add
047 62791-AF RADGEHÄUSE LINKS 62791 £99.19 Add
048 62792-AF RADGEHÄUSE 62792 £57.96 Add
049 46734-AF FRAME, UPPER RIGHT AF-46734 £55.91 Add
050 46735-AF FRAME, UPPER LEFT AF-46735 £54.04 Add
051 46732-AF FRAME, LOWER RIGHT AF-46732 £48.20 Add
052 46733-AF FRAME, LOWER LEFT AF-46733 £48.20 Add
053 24189-AF FIXATION STRIP, OUTSIDE AF-24189 £29.55 Add
054 43938-AF ROD, HOPPER SUPPORT £12.19 Add
055 43737-AF Hopper Rope 43737 £5.99 Add
056 24190-AF FIXATION STRIP, INSIDE AF-24190 £12.88 Add
057 24191-AF STRAP, HEIGHT ADJUSTMENT £14.43 Add
058 23687-AF Hitch Bracket 23687 £33.95 Add
059 24192-AF BRACKET (EXRED) £8.88 Add
060 24193-AF HANDLE, HEIGHT ADJUSTMENT £28.71 Add
061 46781-AF TUBE, BAG ARM £16.99 Add
062 46823-AF ROD,HYDRO DISENGAGEMENT AF-46823 £10.51 Add
063 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
063 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
064 45088-AF WHEEL BEARING £12.03 Add
065 46782-AF BOLT £3.41 Add
066 43224-AF BOLT £5.85 Add
067 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
068 46847-AF SLEEVE AF-46847 £3.85 Add
069 R19111116-AF WASHER £3.76 Add
070 43720-AF KNOB (RED) £7.83 Add
071 43080-AF CARRIAGE BOLT £3.49 Add
072 43081-AF FLAT WASHER £3.49 Add
073 43084-AF BOLT £2.56 Add
074 43943-AF Handle Grip 43943 £8.46 Add
075 44732-AF TOOTH LOCK WASHER £3.49 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43343-AF PIN COTTER £4.20 Add
079 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
080 44917-AF PALNUT (RED) £3.76 Add
081 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
082 1509-090 NO LONGER AVAILABLE N/A POA
083 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
084 43662-AF Lock Nut, 10-32 43662 £3.73 Add
085 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
086 43082-AF HEX LOCK NUT £4.12 Add
087 44481-AF Cap, Vinyl 44481 £4.05 Add
088 43055-AF COTTER PIN £6.04 Add
089 46867-AF Clevis Pin, 1/4" x 1-3/4" Lg. 46867 £4.65 Add
090 46738-AF HOPPER BAG AF-46738 £260.28 Add
091 46739-AF WINDSCREEN 42" AF-46739 £40.14 Add
