FG390_0020

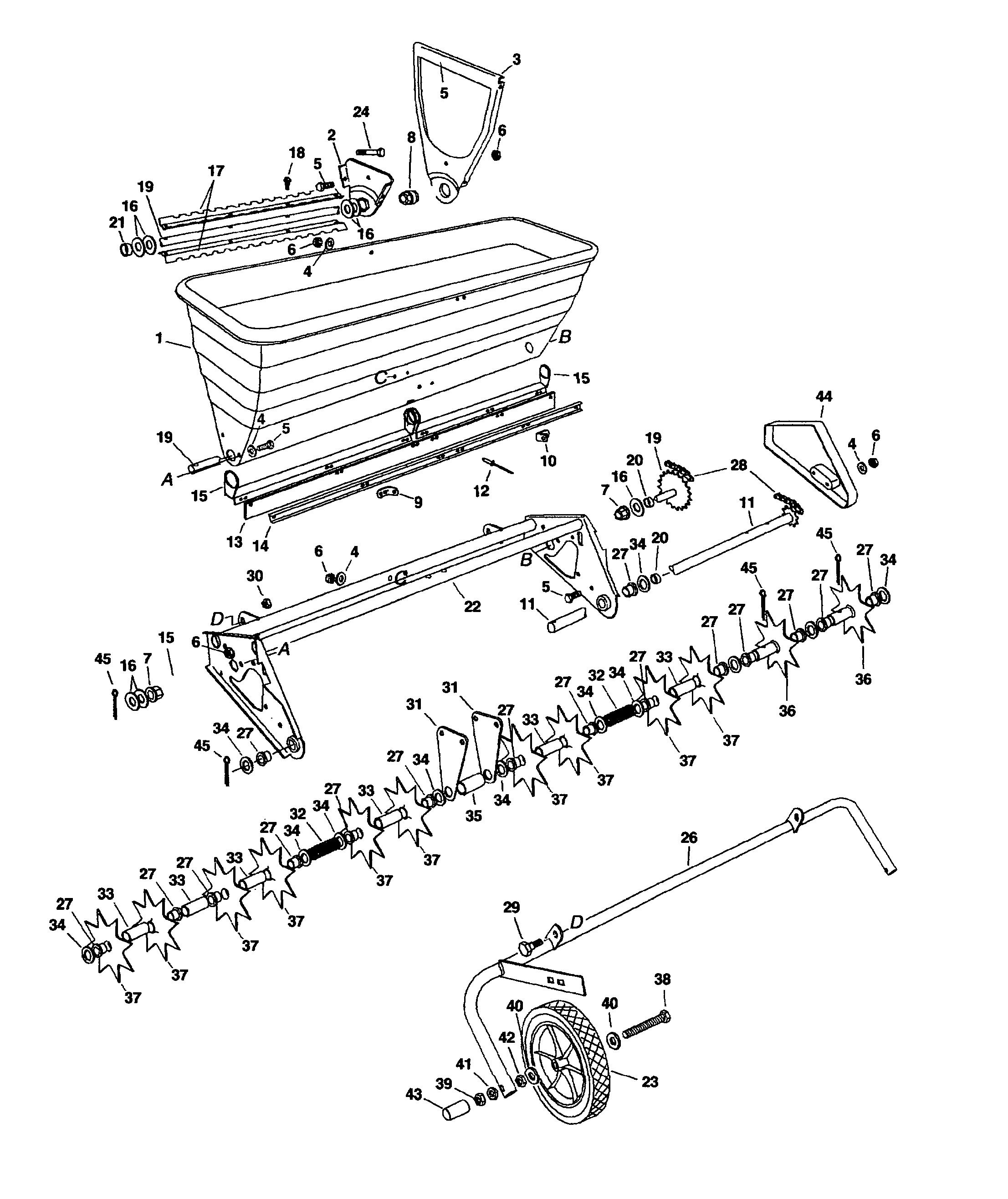

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG390_0020

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47685-AF OWNERS MANUAL N/A POA
001 47451-AF HOPPER £310.42 Add
002 24536-AF HOPPER CENTER PLATE (SMALL) £6.87 Add
003 24535-AF HOPPER CENTER PLATE (LARGE) £35.37 Add
004 43088-AF FLAT WASHER £2.69 Add
005 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.01 Add
006 46978-AF NUT £3.02 Add
007 47615-AF BEARING, FLANGE £5.26 Add
008 47484-AF BEARING, HEX FLANGE £19.84 Add
009 24538-AF BRACKET, FEED PLATE (RH) £5.33 Add
010 24539-AF BRACKET, FEED PLATE (LH) £5.33 Add
011 63949-AF AXLE W/SPROCKET, 5/8" £104.08 Add
012 728-3001 Pop Rivet N/A POA
013 47459-AF SKIRT, 48" £35.65 Add
014 47508-AF RETAINER, SKIRT £39.21 Add
015 24537-AF FLOW PLATE £17.57 Add
016 43000-AF SPRING EXTENSION £9.59 Add
017 47259-AF AGITATOR BLADE £8.90 Add
018 47978-AF SCREW, HEX WASH 8-32 x 1/4"LG AF-47978 £3.57 Add
019 63948-AF AXLE W/SPROCKET. 3/4" £175.97 Add
020 46838-AF TUBE SPACER £3.90 Add
021 47458-AF SPACER, 1.25" OD X .330" LG. £10.37 Add
022 63955-AF HOPPER FRAME ASSEMBLY N/A POA
023 46254-AF WHEEL (OBSOLETE) (OBSOLETE) N/A POA
024 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.40 Add
026 63958-AF LIFT TUBE ASSEMBLY £97.00 Add
027 741-0249 BEARING £4.88 Add
028 47684-AF CHAIN £19.14 Add
029 48106-AF Bolt, Shoulder 3/8-16 x 5/8" 48106 £5.49 Add
030 43082-AF HEX LOCK NUT £3.56 Add
031 24648-AF BRACE, CENTER N/A POA
032 47777-AF SPRING, COMPRESSION N/A POA
033 47683-AF TUBE, SPACER N/A POA
034 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.35 Add
035 47782-AF SPACER, 1.0" I.D. X 3.25" N/A POA
036 63956-AF DRIVE DISK ASSEMBLY N/A POA
037 24332-AF Spike Disk £9.98 Add
038 45100-AF BOLT 1/2-13 X 4" HEX HEAD £3.73 Add
039 7120206 NUT, HEX 1/2-13 N/A POA
040 R19171616-AF Washer, Flat 17/32" I.D. R19171616 N/A POA
041 43353-AF Lock Washer, 1/2" 43353 £2.66 Add
042 43019-AF Hex Jam Nut, 1/2-13 Thd. 43019 £3.96 Add
043 44688-AF Cap, Plastic 44688 £3.51 Add
044 47679-AF CHAIN COVER £73.41 Add
045 43093-AF COTTER PIN £2.69 Add
