AGR08_0014B

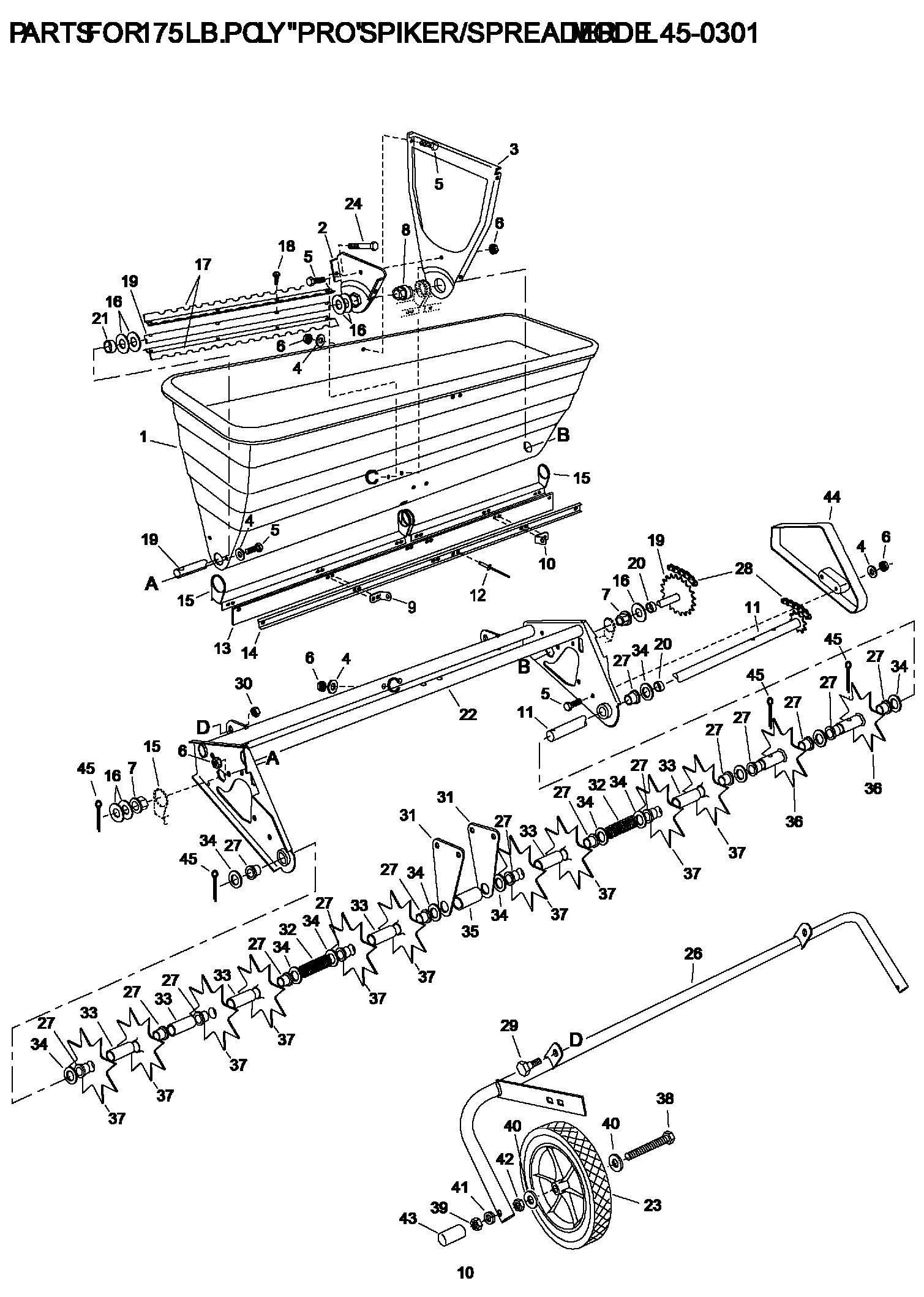

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

AGR08_0014B

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47685 Owners Manual N/A POA
001 47451 Hopper N/A POA
002 24536 Hopper Center Plate (Small) N/A POA
003 24535 Hopper Center Plate (Large) N/A POA
004 43088-AF FLAT WASHER £3.11 Add
005 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
006 46978-AF NUT £3.49 Add
007 47615 BEARING FLANGE £21.89 Add
008 47484 Bearing, Hex Flange N/A POA
009 24538 Bracket, Feed Plate (RH) N/A POA
010 24539 BRACKET FEED PLATE £7.78 Add
011 63949 Axle w/Sprocket, 5/8" N/A POA
012 728-3001 RIVET, POP £4.17 Add
013 47459 Skirt, 48" N/A POA
014 47508 Retainer, Skirt N/A POA
015 24537 Flow Plate N/A POA
016 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.26 Add
017 47259-AF AGITATOR BLADE £10.28 Add
018 47978-AF SCREW, HEX WASH 8-32 x 1/4"LG AF-47978 £4.13 Add
019 63948 Axle w/sprocket. 3/4" N/A POA
020 46838-AF TUBE SPACER £4.50 Add
021 47458 Spacer, 1.25" OD x .330" Lg. N/A POA
022 63955 Hopper Frame Assembly N/A POA
023 46254 Wheel N/A POA
024 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
026 63958 Lift Tube Assembly N/A POA
027 741-0249 BEARING £8.44 Add
028 47684-AF CHAIN £25.87 Add
029 48106-AF Bolt, Shoulder 3/8-16 x 5/8" 48106 £6.34 Add
030 43082-AF HEX LOCK NUT £4.12 Add
031 24648 Brace, Center N/A POA
032 47777 Spring, Compression N/A POA
033 47683 SPACER TUBE £4.11 Add
034 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.87 Add
035 47782 Spacer, 1.0" I.D. x 3.25" N/A POA
036 63956 DRIVE DISK £50.47 Add
037 24332 SPIKE DISK £10.38 Add
038 45100 Bolt, Hex 1/2-13 x 4" N/A POA
039 712-0206 NUT £3.42 Add
040 R19171616-AF WASHER 17/32X1X16GA £3.76 Add
041 43353-AF Lock Washer, 1/2" 43353 £3.08 Add
042 43019-AF Hex Jam Nut, 1/2-13 Thd. 43019 £4.58 Add
043 44688-AF Cap, Plastic 44688 £4.05 Add
044 61629A1 Chain Cover 47679 N/A POA
045 43093-AF COTTER PIN £3.11 Add
