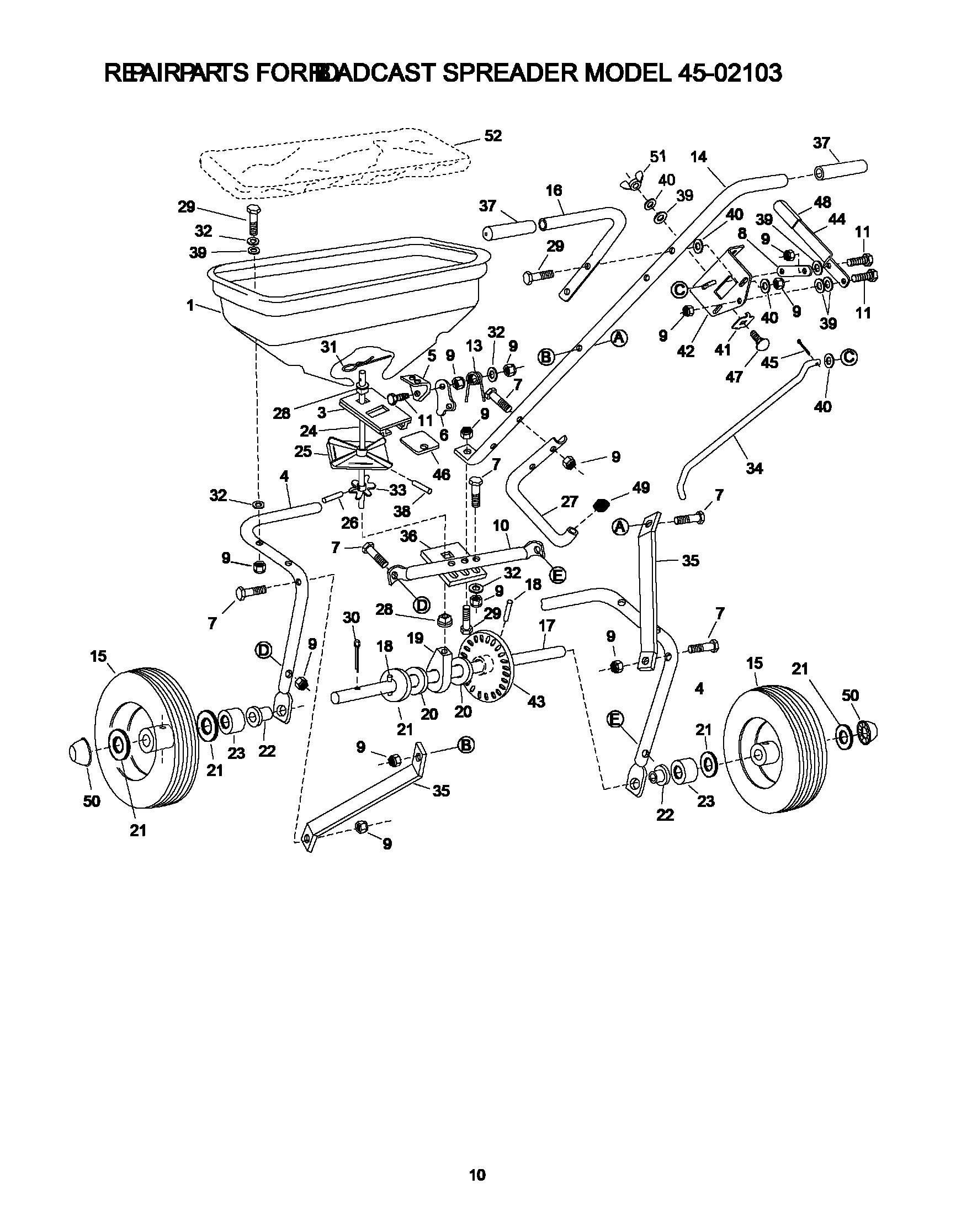

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
49030
|
Owner's Manual
|
£69.92
|
Add
|
|
001
|
16471A1
|
Hopper 44466
|
N/A
|
POA
|
|
002
|
C-9M573 2
|
Pop Rivet (not shown)
|
N/A
|
POA
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
4884 2
|
Tube, Frame
|
N/A
|
POA
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
008
|
24857
|
Flow Control Link
|
N/A
|
POA
|
|
009
|
47189-AF
|
Hex Nylock Nut 1/4" 47189
|
£3.91
|
Add
|
|
010
|
48841
|
Tube, Crossover
|
N/A
|
POA
|
|
011
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44590
|
Tube, Handle (Long)
|
N/A
|
POA
|
|
015
|
48954
|
WHEEL 13X4
|
£90.58
|
Add
|
|
016
|
44589
|
Tube, Handle (Short)
|
N/A
|
POA
|
|
017
|
25067
|
SHAFT, AXLE
|
£92.58
|
Add
|
|
018
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
019
|
48916
|
BUSHING, AXLE SHAFT
|
£41.85
|
Add
|
|
020
|
44125-AF
|
Washer, Flat .62" x 1.00" 44125
|
£4.05
|
Add
|
|
021
|
R19 212016
|
Washer, Flat 5/8" I.D.
|
N/A
|
POA
|
|
022
|
741-0 249
|
Bearing, Flange
|
N/A
|
POA
|
|
023
|
48857
|
SPACER
|
£17.20
|
Add
|
|
024
|
25305-AF
|
Shaft, Sprocket 25305
|
N/A
|
POA
|
|
025
|
04367
|
SPREADER PLATE
|
£61.33
|
Add
|
|
026
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
027
|
44587
|
Tube, Leg Stand
|
N/A
|
POA
|
|
028
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
029
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
030
|
47063-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
031
|
48934-AF
|
HAIRPIN
|
£3.49
|
Add
|
|
032
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
033
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
034
|
44514-AF
|
Rod, Flow Control 44514
|
£26.81
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780
|
Support, Shaft
|
N/A
|
POA
|
|
037
|
4448 2
|
Grip, Handle
|
N/A
|
POA
|
|
038
|
46055A1
|
Pin, Spring 1/8" Dia. x 1" Lg. 46055
|
N/A
|
POA
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
041
|
24858-AF
|
STOP (ADJUSTABLE)
|
£3.49
|
Add
|
|
042
|
24855-AF
|
Bracket, Flow Control Mount 24855
|
£19.79
|
Add
|
|
043
|
48888-AF
|
Gear
|
£54.77
|
Add
|
|
044
|
24856
|
Flow Control Arm
|
N/A
|
POA
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
44481-AF
|
Cap, Vinyl 44481
|
£4.05
|
Add
|
|
050
|
48499B-AF
|
HUB CAP
|
£5.22
|
Add
|
|
051
|
47141-AF
|
NUT NYLON WING 1/4-20 NU34
|
£3.49
|
Add
|
|
052
|
4396 2
|
Vinyl Hopper Cover (Optional)
|
N/A
|
POA
|
