Parts list

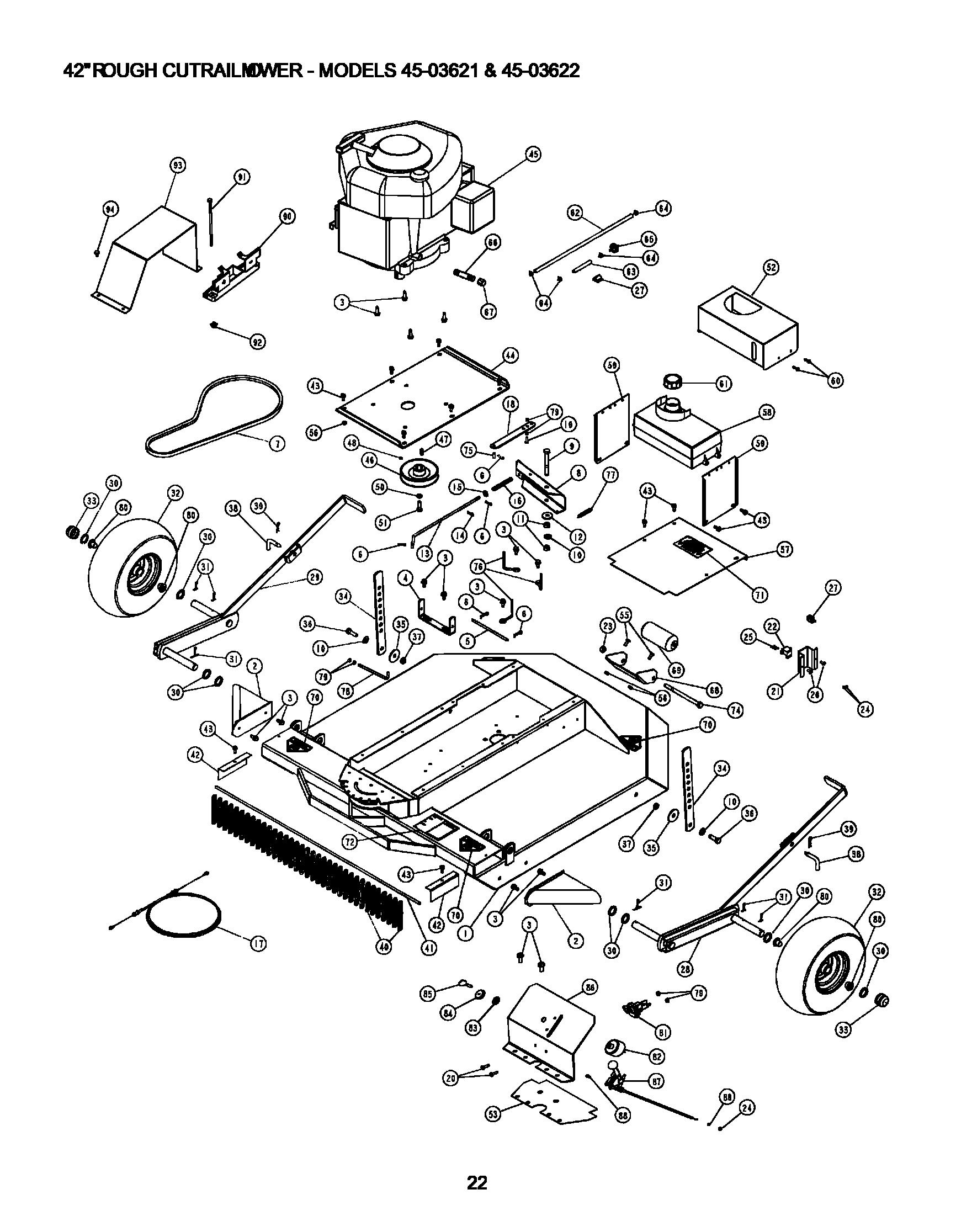

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
002
|
HA24378
|
GUARD WHEEL
|
N/A
|
POA
|
|
003
|
HA23193
|
SCREW 3/8-16 X 1-1/4 THD. FORMING
|
N/A
|
POA
|
|
004
|
HA24292
|
BRACKET BELT GUIDE
|
£23.28
|
Add
|
|
005
|
HA24293
|
ROD BELT GUIDE
|
N/A
|
POA
|
|
006
|
HA3090
|
HAIRPIN COTTER
|
£5.93
|
Add
|
|
008
|
HA24295
|
CHANNEL CLUTCH LEVER
|
N/A
|
POA
|
|
009
|
45100
|
Bolt, Hex 1/2-13 x 4"
|
N/A
|
POA
|
|
010
|
HA120396
|
WASHER 1/2 FLAT
|
N/A
|
POA
|
|
011
|
712-0384
|
NUT 1/2-13 HEX LOCK 43262
|
£14.44
|
Add
|
|
012
|
HA14232
|
WASHER FLAT
|
N/A
|
POA
|
|
013
|
HA24296
|
ROD, CLUTCH LINK
|
£20.99
|
Add
|
|
014
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
015
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
016
|
HA24297
|
SPRING CLUTCH
|
N/A
|
POA
|
|
017
|
49165
|
CLUTCH CABLE
|
£97.27
|
Add
|
|
018
|
25292
|
STRAP, CLUTCH ADJUSTING
|
N/A
|
POA
|
|
019
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
020
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
021
|
25262
|
BRACKET INTERLOCK MOUNTING
|
N/A
|
POA
|
|
022
|
HA23199
|
SWITCH INTERLOCK
|
N/A
|
POA
|
|
023
|
48115
|
Hex Nylock Jam Nut 1/2"
|
N/A
|
POA
|
|
024
|
712-0121
|
NUT #10-24 HEX
|
£9.89
|
Add
|
|
025
|
47078
|
Screw, Pan Hd. 10-24 x 3/4" Lg.
|
N/A
|
POA
|
|
026
|
48840
|
SCREW
|
£4.11
|
Add
|
|
027
|
48298
|
CLIP, CORD
|
N/A
|
POA
|
|
028
|
HA24300
|
WHEEL MOUNTING BRACKET L.H.
|
N/A
|
POA
|
|
029
|
HA24301
|
WHEEL MOUNTING BRACKET R.H.
|
N/A
|
POA
|
|
030
|
HA4143
|
WASHER FLAT
|
N/A
|
POA
|
|
031
|
HA137258
|
PIN COTTER 3/16" X 1-3/4"
|
N/A
|
POA
|
|
032
|
46272
|
TIRE
|
N/A
|
POA
|
|
033
|
HA23229
|
CAP HUB
|
N/A
|
POA
|
|
034
|
HA24309
|
STRAP ADJUSTING
|
N/A
|
POA
|
|
035
|
HA6979
|
WASHER FLAT
|
N/A
|
POA
|
|
036
|
43020
|
SHEATH
|
£10.78
|
Add
|
|
037
|
43019-AF
|
Hex Jam Nut, 1/2-13 Thd. 43019
|
£4.58
|
Add
|
|
038
|
HA23220
|
PIN LOCATING
|
N/A
|
POA
|
|
039
|
AF-47134
|
PIN HAIR COTTER .08" X 1.58" 47134
|
£4.08
|
Add
|
|
040
|
HA24311
|
CHAIN DEFLECTOR
|
N/A
|
POA
|
|
041
|
HA24312
|
ROD CHAIN
|
N/A
|
POA
|
|
042
|
HA24313
|
BRACKET CHANNEL
|
N/A
|
POA
|
|
043
|
710-1260A
|
SCREW
|
£4.00
|
Add
|
|
044
|
25428
|
PLATE ENGINE MOUNTING
|
N/A
|
POA
|
|
045
|
280H070130E1
|
ENGINE, 14.5 HP
|
N/A
|
POA
|
|
046
|
HA24457-AF
|
PULLEY ASSY
|
£99.24
|
Add
|
|
047
|
HA3073-AF
|
KEY 1/4" SQ. X 1"
|
£4.28
|
Add
|
|
048
|
HA115321
|
SCREW 5/16-18 X 5/16 SOC. SET
|
N/A
|
POA
|
|
050
|
43555
|
Lock Washer, 7/16"
|
£7.90
|
Add
|
|
051
|
HA181668
|
Bolt, 7/16-14 x 1-1/4"
|
N/A
|
POA
|
|
052
|
25051
|
COVER, GAS TANK
|
N/A
|
POA
|
|
053
|
25265
|
COVER, FRONT DRIVE
|
N/A
|
POA
|
|
055
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
056
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
057
|
25264
|
COVER, REAR DRIVE
|
N/A
|
POA
|
|
058
|
HA23732
|
TANK GASOLINE
|
£92.56
|
Add
|
|
059
|
HA24317
|
PLATE FUEL TANK
|
N/A
|
POA
|
|
060
|
HA163318
|
SCREW 1/4-14 X 7/8 TAPPING PAN HEAD
|
N/A
|
POA
|
|
061
|
HA23733
|
CAP GASOLINE TANK (OBSOLETE)
|
N/A
|
POA
|
|
062
|
48837
|
HOSE FUEL TANK LONG
|
N/A
|
POA
|
|
063
|
HA24455
|
HOSE FUEL TANK SHORT
|
N/A
|
POA
|
|
064
|
HA23792
|
CLAMP FUEL LINE
|
N/A
|
POA
|
|
065
|
HA23791
|
FILTER FUEL LINE
|
N/A
|
POA
|
|
066
|
48095
|
PIPE
|
N/A
|
POA
|
|
067
|
48096
|
CAP
|
N/A
|
POA
|
|
068
|
HA24310
|
BRACKET ROLLER
|
N/A
|
POA
|
|
069
|
HA12138
|
ROLLER MOWER
|
£25.55
|
Add
|
|
070
|
HA12315
|
LABEL
|
£7.93
|
Add
|
|
071
|
HA12314
|
DECAL DANGER
|
N/A
|
POA
|
|
072
|
HA24431
|
DECAL OPERATION/CAUTION
|
N/A
|
POA
|
|
074
|
HA126145
|
BOLT 1/2-13 X 7" HEX HEAD
|
N/A
|
POA
|
|
075
|
43982-AF
|
PIN, CLEVIS 1/4" X 5/8" 43982
|
£4.58
|
Add
|
|
076
|
HA22981
|
BELT GUIDE
|
£7.98
|
Add
|
|
077
|
HA24298
|
SPRING RETURN
|
N/A
|
POA
|
|
078
|
49156
|
ROD, CABLE GUIDE
|
N/A
|
POA
|
|
079
|
47189-AF
|
Hex Nylock Nut 1/4" 47189
|
£3.91
|
Add
|
|
080
|
44488
|
Wheel Bearing (#43594 Wheel)
|
N/A
|
POA
|
|
081
|
HA23754
|
SOLENOID (OBSOLETE)
|
N/A
|
POA
|
|
082
|
HA23749
|
SWITCH, STARTER (AYP 144921)
|
£74.94
|
Add
|
|
083
|
HA23750
|
SWITCH MOUNTING NUT
|
N/A
|
POA
|
|
084
|
HA23757
|
SWITCH COVER
|
N/A
|
POA
|
|
085
|
HA23752
|
KEY, SWITCH (AYP 140403)
|
£7.93
|
Add
|
|
086
|
25286
|
PLATE, SWITCH MOUNTING
|
N/A
|
POA
|
|
087
|
49201
|
THROTTLE ASSY
|
£120.30
|
Add
|
|
088
|
45040-AF
|
BOLT
|
£3.62
|
Add
|
|
089
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
090
|
49198
|
HOLD BATTERY
|
£83.32
|
Add
|
|
091
|
49199
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
092
|
49200
|
NUT, PUSH
|
£12.95
|
Add
|
|
093
|
25287
|
BATTERY COVER
|
N/A
|
POA
|
|
094
|
48840
|
SCREW
|
£4.11
|
Add
|
