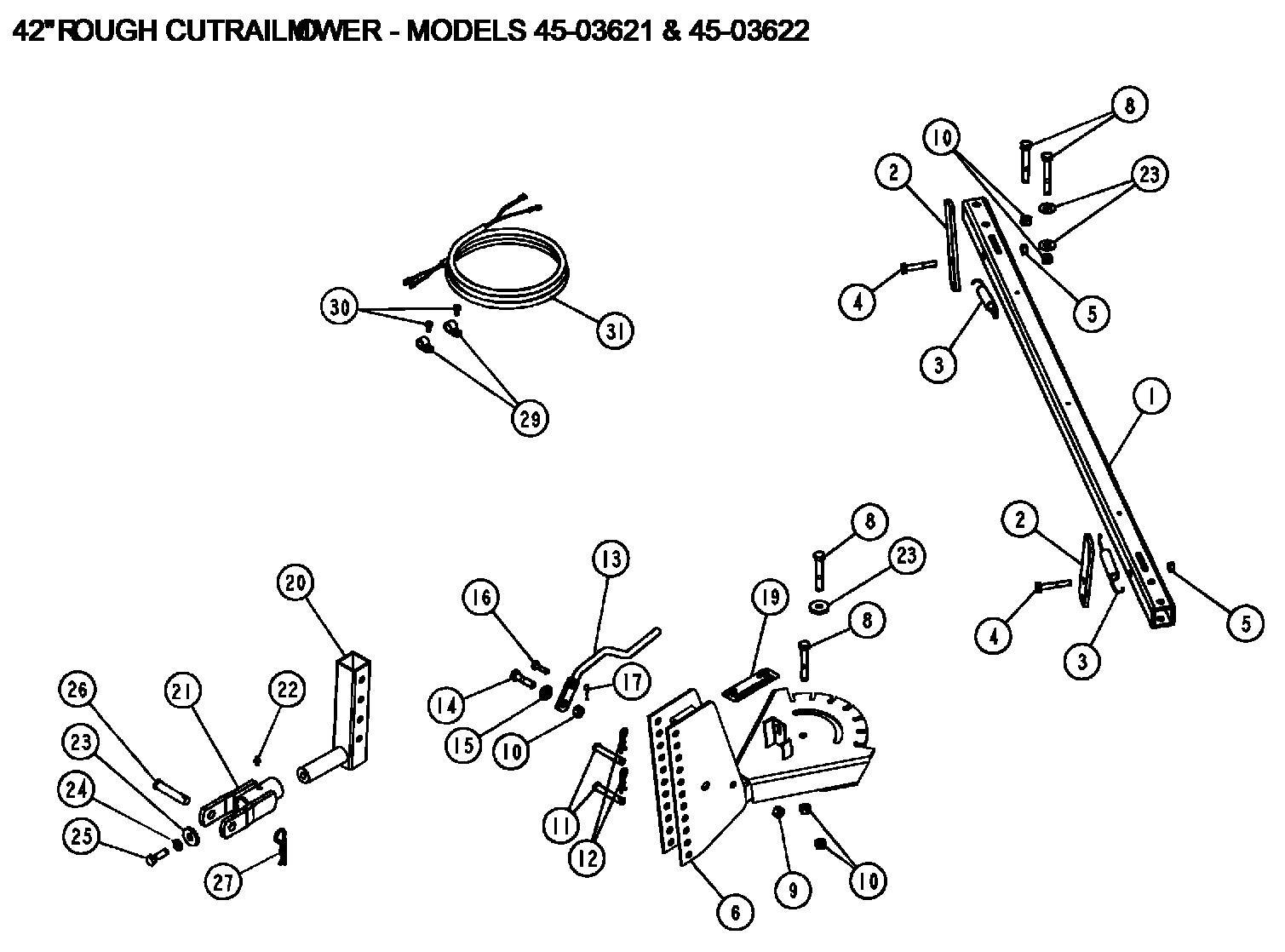

AGR08_0037C

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	25273	TUBE DRAWBAR (MODEL 45-0361)	N/A	POA
002	HA24441	STRAP HITCH	N/A	POA
003	HA20186	SPRING, IDLER	£21.58	Add
004	44180	Hex Bolt, 5/16-18 x 2"	£18.11	Add
005	712-3004A	HEX FLANGE NUT	£2.97	Add
006	64909	HITCH ASSEMBLY	N/A	POA
008	43509	BOLT 3/8-16 X 2-3/4 HEX HEAD	N/A	POA
009	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
010	HA21362	NUT	£3.96	Add
011	HA23636	PIN, CLEVIS	£7.89	Add
012	AF-47134	PIN HAIR COTTER .08" X 1.58" 47134	£4.08	Add
013	49157	LEVER CLUTCH	N/A	POA
014	43062-AF	BOLT 3/8-16 X 1-1/2 HEX HEAD 43062	£4.99	Add
015	HA19445	SPRING COMPRESSION	£2.57	Add
016	43982-AF	PIN, CLEVIS 1/4" X 5/8" 43982	£4.58	Add
017	HA3090	HAIRPIN COTTER	£5.93	Add
019	HA23265	DECAL CLUTCH LEVER	N/A	POA
020	64910	BRACKET DRAWBAR ADJUSTMENT	N/A	POA
021	HA24326	DRAWBAR SWIVEL	£30.82	Add
022	HA5074	FITTING GREASE	N/A	POA
023	HA15200	WASHER FLAT	N/A	POA
024	736-0169	L. WASHER	£2.89	Add
025	43087-AF	Hex Bolt, 3/8-16 x 1-1/4" Long 43087	£4.58	Add
026	HA24330	PIN CLEVIS	N/A	POA
027	HA3341	PIN-COTTER	£5.95	Add
029	HA23761	CLIP HOSE 3/8"	N/A	POA
030	HA9411666	SCREW #10-16 X 1/2 SELF TAPPING	N/A	POA
031	49193	WIRE HARNESS (See page 27)	N/A	POA
