Parts list

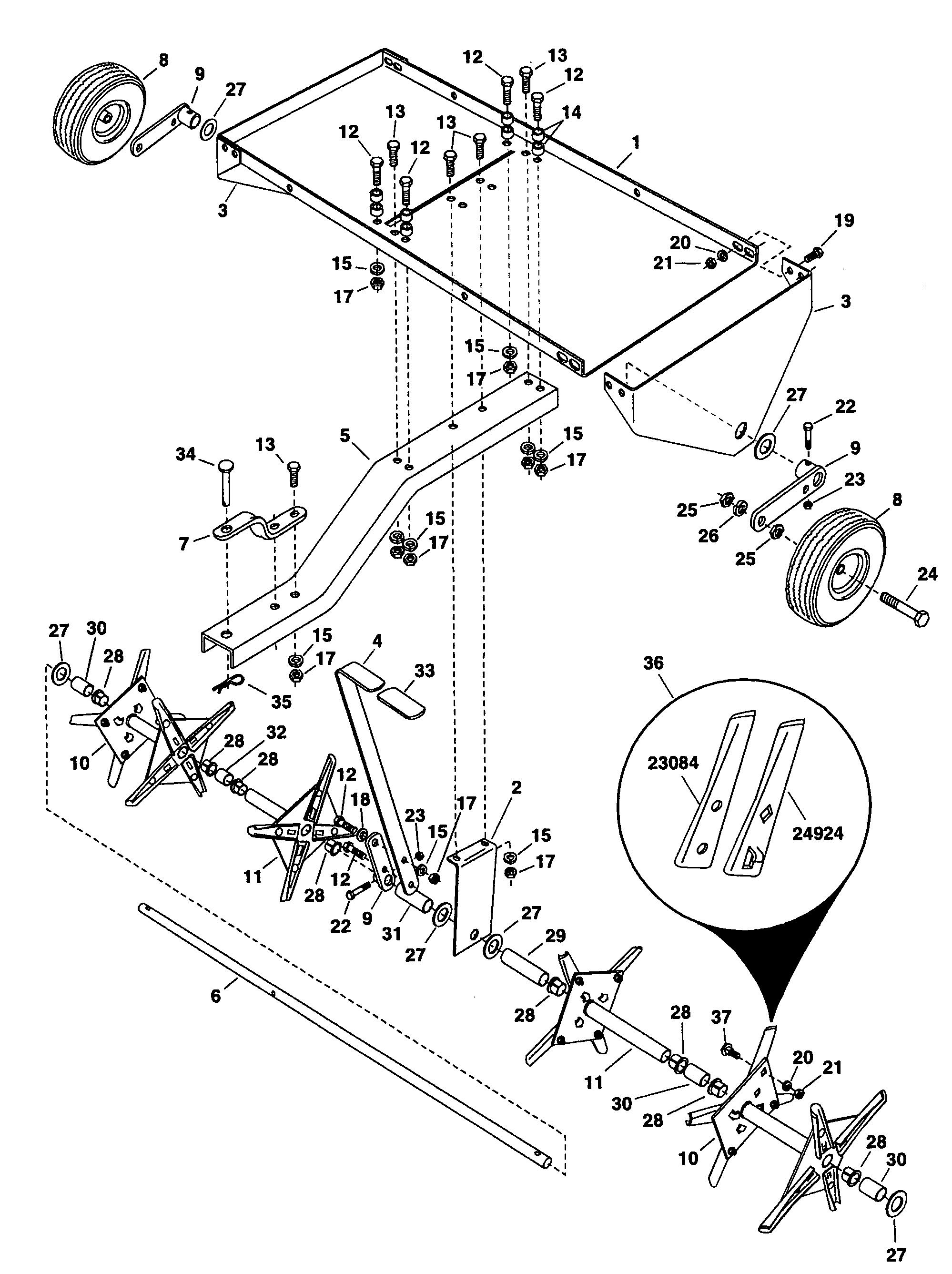

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
23084-AF
|
MESSERFLÜGEL 23084
|
£12.88
|
Add
|
|
|
48308-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
24618-AF
|
TRAY AF-24618
|
£124.32
|
Add
|
|
002
|
24623-AF
|
BRACKET, AXLE REINFORCEMENT AF-24623
|
£12.96
|
Add
|
|
003
|
24619-AF
|
END PLATE AF-24619
|
£58.17
|
Add
|
|
004
|
24624-AF
|
LIFT HANDLE AF-24624
|
£31.26
|
Add
|
|
005
|
24103-AF
|
TONGUE
|
£41.74
|
Add
|
|
006
|
24622-AF
|
SHAFT
|
N/A
|
POA
|
|
007
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
008
|
47052-AF
|
WHEEL
|
£102.06
|
Add
|
|
009
|
63931-AF
|
WHEEL BRACKET ASSEMBLY
|
£58.98
|
Add
|
|
010
|
63929-AF
|
SPOOL ASSEMBLY (DOUBLE)
|
£69.09
|
Add
|
|
011
|
63930-AF
|
SPOOL ASSEMBLY (SINGLE)
|
N/A
|
POA
|
|
012
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
013
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
014
|
23625-AF
|
Spacer, 1/4" Long 23625
|
£10.35
|
Add
|
|
015
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
017
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
018
|
44685-AF
|
Spacer, Shoulder 44685
|
£5.99
|
Add
|
|
019
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
020
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
021
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
022
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
023
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
024
|
47058-AF
|
HEX BOLT 1/2-13X4"LG AF-47058
|
£5.54
|
Add
|
|
025
|
43019-AF
|
Hex Jam Nut, 1/2-13 Thd. 43019
|
£4.58
|
Add
|
|
026
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
027
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
028
|
741-0493A
|
Split Bearing, 3/4"
|
£4.13
|
Add
|
|
029
|
45151-AF
|
SPACER
|
£11.00
|
Add
|
|
030
|
44494-AF
|
Spacer, 1.33" Long 44494
|
£4.85
|
Add
|
|
031
|
44474-AF
|
Spacer, 2.38" Long 44474
|
£5.79
|
Add
|
|
032
|
44500-AF
|
SPACER, 1" O.D. X 1" LG.
|
£4.49
|
Add
|
|
033
|
47707-AF
|
GRIP
|
N/A
|
POA
|
|
034
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
|
035
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
036
|
24924-AF
|
KNIFE, AERATOR
|
£14.41
|
Add
|
|
037
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
