FG750_0103

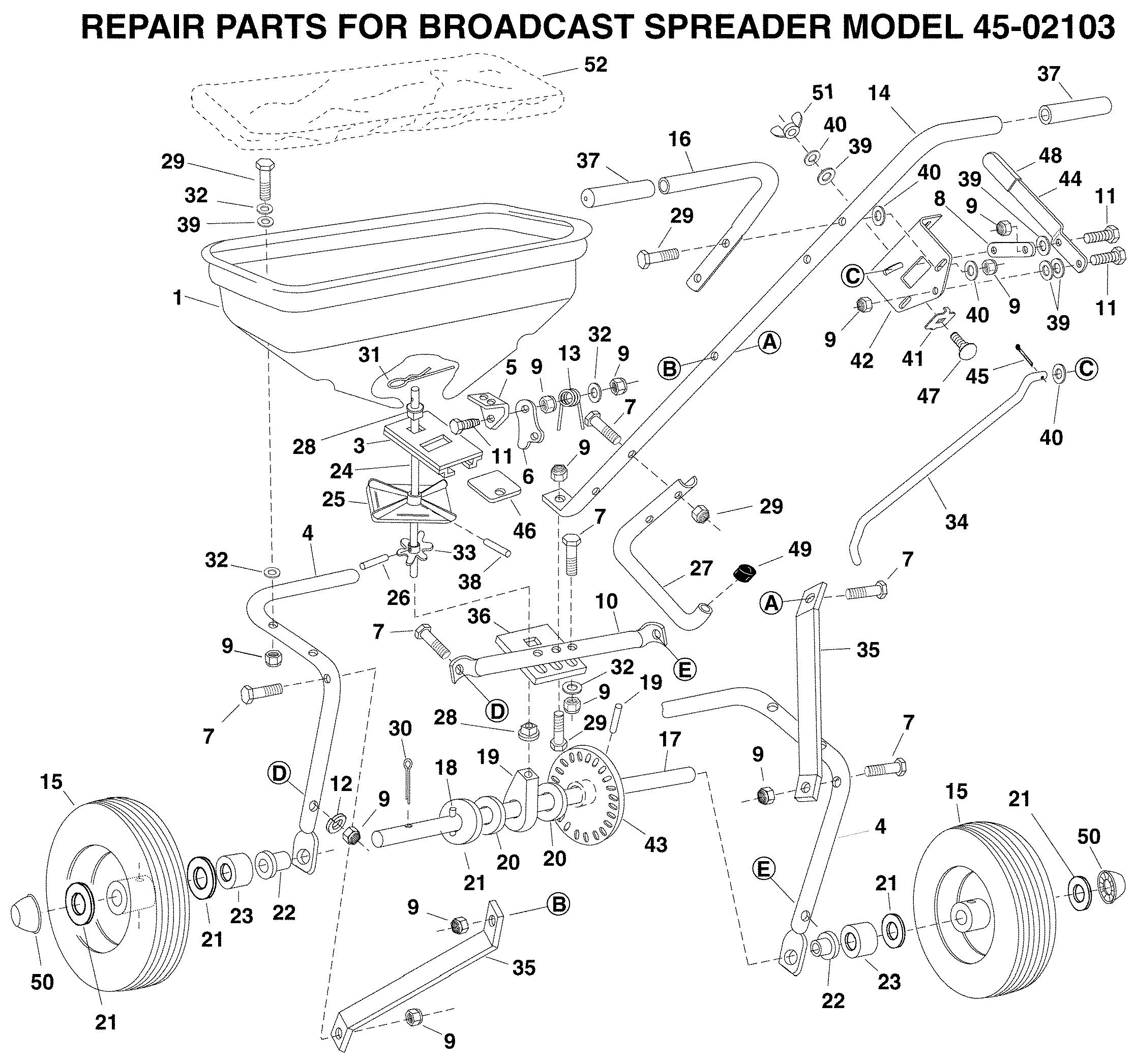

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG750_0103

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
49030-AF Owner's Manual N/A POA
001 44624-AF Hopper 44624 £225.10 Add
002 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
003 62482-AF ASSY GUIDE CLOSURE £57.27 Add
004 48842-AF Tube, Frame N/A POA
005 23753-AF SLIDE GATE ANGLE BRACKET £3.62 Add
006 23758-AF SLIDE GATE BRACKET £3.87 Add
007 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.58 Add
008 24857-AF Flow Control Link £3.97 Add
009 47189-AF Hex Nylock Nut 1/4" 47189 £3.91 Add
010 48841-AF Tube, Crossover N/A POA
011 43661-AF HEX BOLT £3.11 Add
012 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
013 44566-AF SPRING TORSION £4.74 Add
014 44590-AF Tube, Handle (Long) £52.25 Add
015 48954-AF Wheel £51.11 Add
016 44589-AF Tube, Handle (Short) £19.65 Add
017 25067-AF Shaft, Axle N/A POA
018 44665-AF Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665 £4.05 Add
019 4891 6 Bushing, Axle Shaft N/A POA
020 44125-AF Washer, Flat .62" x 1.00" 44125 £4.05 Add
021 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.87 Add
022 741-0249 BEARING £8.44 Add
023 48857-AF Tube, Spacer £23.95 Add
024 23524-AF SHAFT SPROCKET (OBSOLETE) (OBSOLETE) N/A POA
025 04367-AF SPREADER PLATE £33.08 Add
026 43850-AF ROLL PIN £6.78 Add
027 44587-AF Tube, Leg Stand £27.59 Add
028 44285-AF BUSHING DELRIN £5.63 Add
029 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
030 47063-AF COTTER PIN £3.49 Add
031 48934-AF HAIRPIN £3.49 Add
032 43088-AF FLAT WASHER £3.11 Add
033 44468-AF SPROCKET 6T £6.85 Add
034 44514-AF Rod, Flow Control 44514 £26.81 Add
035 23525-AF Brace, Hitch 23525 £38.89 Add
036 23780-AF Support, Shaft £7.06 Add
037 44482-AF Grip, Handle 44482 £7.23 Add
038 46055-AF PIN SPRING £3.49 Add
039 1543-69-AF Washer, Nylon 1543-069 N/A POA
040 R19111116-AF WASHER £3.76 Add
041 24858-AF STOP (ADJUSTABLE) £3.49 Add
042 24855-AF Bracket, Flow Control Mount 24855 £19.79 Add
043 48888-AF Gear £54.77 Add
044 24856-AF Flow Control Arm £13.58 Add
045 44101-AF Cotter Pin 3/32" x 3/4" Lg.* 44101 £3.91 Add
046 23533-AF PLATE CLOSURE £15.33 Add
047 44950-AF BOLT £3.62 Add
048 43848-AF Grip, Flow Control Arm 43848 £5.99 Add
049 44481-AF Cap, Vinyl 44481 £4.05 Add
050 44663-AF CAP NUT £4.31 Add
051 47141-AF NUT NYLON WING 1/4-20 NU34 £3.49 Add
052 43962 COVER, VINYL HOPPER £109.92 Add
