FG750_0105

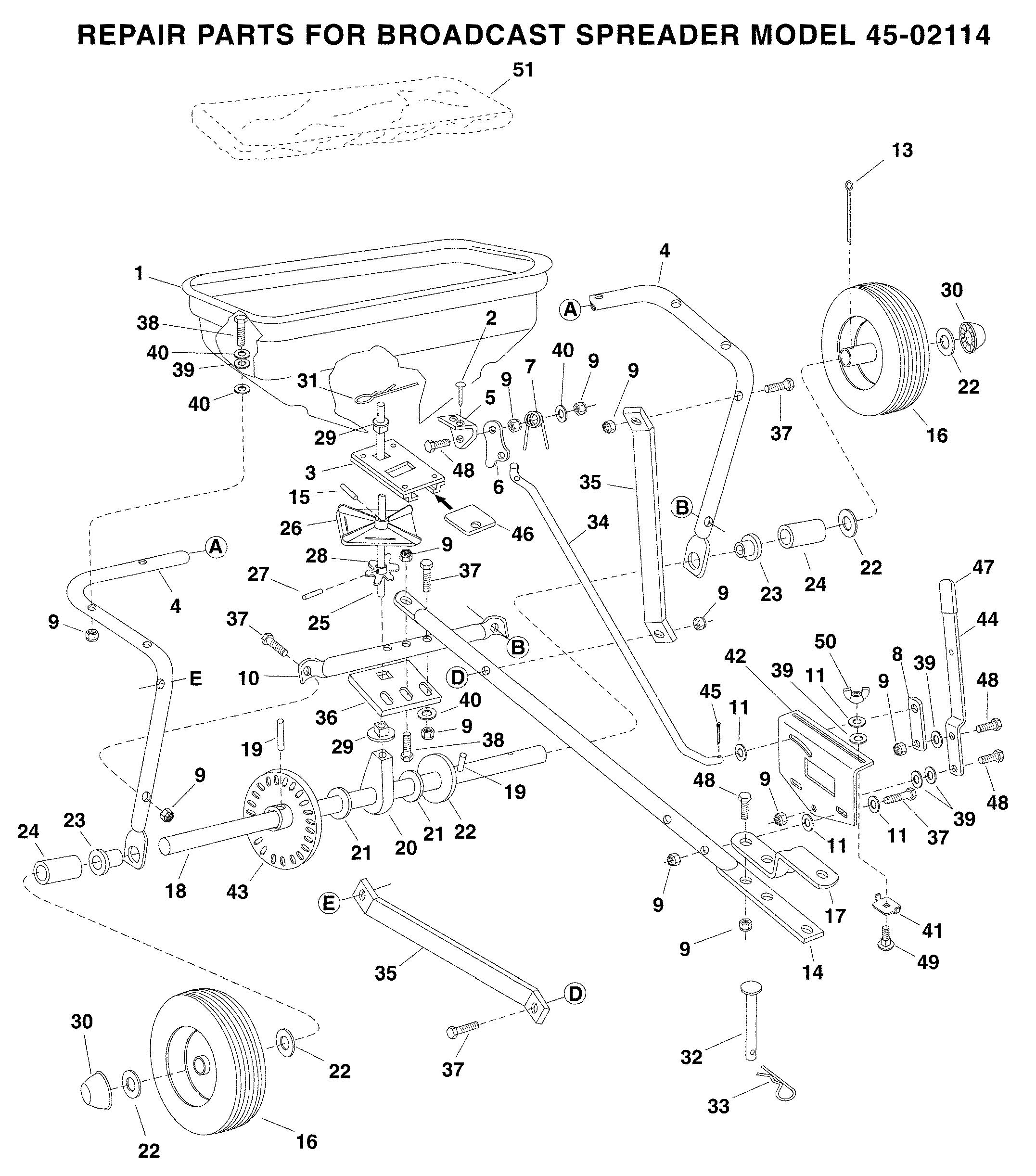

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG750_0105

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
49095-AF Owner's Manual N/A POA
001 44466-AF Hopper £247.14 Add
002 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
003 62482-AF ASSY GUIDE CLOSURE £57.27 Add
004 48842-AF Tube, Frame N/A POA
005 23753-AF SLIDE GATE ANGLE BRACKET £3.62 Add
006 23758-AF SLIDE GATE BRACKET £3.87 Add
007 44566-AF SPRING TORSION £4.74 Add
008 24857-AF Flow Control Link £3.97 Add
009 47189-AF Hex Nylock Nut 1/4" 47189 £3.91 Add
010 48841-AF Tube, Crossover N/A POA
011 R19111116-AF WASHER £3.76 Add
012 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
013 47063-AF COTTER PIN £3.49 Add
014 44586-AF Tube, Hitch 44586 £37.34 Add
015 46055-AF PIN SPRING £3.49 Add
016 48954-AF Wheel £51.11 Add
017 23818-AF Bracket, Hitch £10.66 Add
018 25067-AF Shaft, Axle N/A POA
020 48916-AF Bushing, Axle Shaft £36.45 Add
021 44125-AF Washer, Flat .62" x 1.00" 44125 £4.05 Add
022 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.87 Add
023 741-0249 BEARING £8.44 Add
024 48857-AF Tube, Spacer £23.95 Add
025 23524-AF SHAFT SPROCKET (OBSOLETE) (OBSOLETE) N/A POA
026 04367-AF SPREADER PLATE £33.08 Add
027 43850-AF ROLL PIN £6.78 Add
028 44468-AF SPROCKET 6T £6.85 Add
029 44285-AF BUSHING DELRIN £5.63 Add
030 48499B-AF HUB CAP £5.22 Add
031 48934-AF HAIRPIN £3.49 Add
032 47623-AF HITCH PIN £3.56 Add
033 43343-AF PIN COTTER £4.20 Add
034 44469-AF Rod, Flow Control 44469 £28.51 Add
035 23525-AF Brace, Hitch 23525 £38.89 Add
036 23780-AF Support, Shaft £7.06 Add
037 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.58 Add
038 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
039 1543-69-AF Washer, Nylon 1543-069 N/A POA
040 43088-AF FLAT WASHER £3.11 Add
041 24858-AF STOP (ADJUSTABLE) £3.49 Add
042 24855-AF Bracket, Flow Control Mount 24855 £19.79 Add
043 48888-AF Gear £54.77 Add
044 24859-AF Flow Control Arm 24859 £14.93 Add
045 44101-AF Cotter Pin 3/32" x 3/4" Lg.* 44101 £3.91 Add
046 23533-AF PLATE CLOSURE £15.33 Add
047 43848-AF Grip, Flow Control Arm 43848 £5.99 Add
048 43661-AF HEX BOLT £3.11 Add
049 44950-AF BOLT £3.62 Add
050 47141-AF NUT NYLON WING 1/4-20 NU34 £3.49 Add
051 43962 COVER, VINYL HOPPER £109.92 Add
1 9 44665-AF Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665 £4.05 Add
