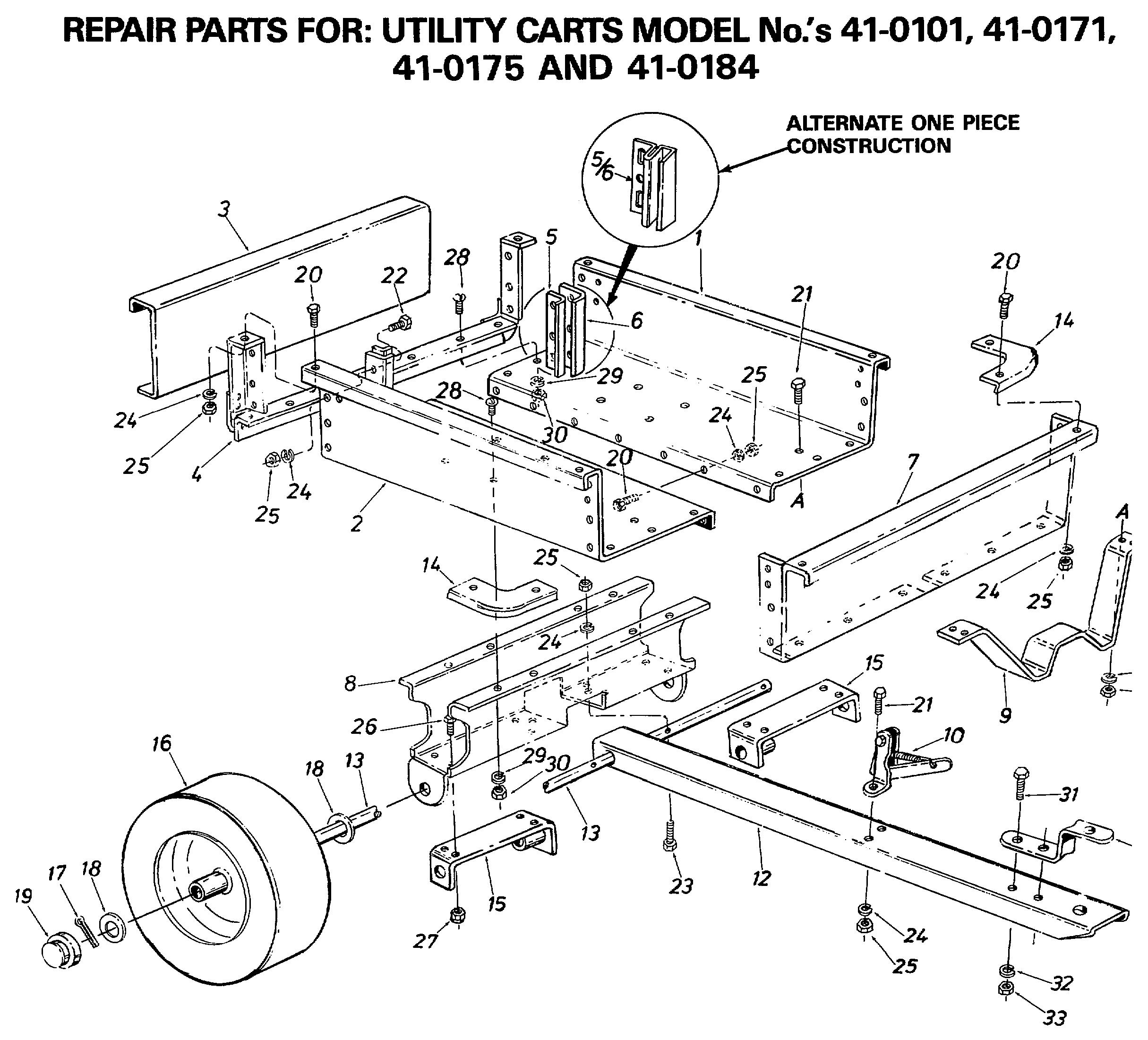

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
43812-AF
|
OPERATOR MANUAL 43812
|
£8.75
|
Add
|
|
001
|
23513-AF
|
CART BODY -- L.H.
|
N/A
|
POA
|
|
001
|
23515-AF
|
CART BODY -- L.H.
|
£183.51
|
Add
|
|
001
|
23517-AF
|
CART BODY -- L.H.
|
£194.25
|
Add
|
|
002
|
23514-AF
|
Cart body - 092.34.063
|
£128.13
|
Add
|
|
002
|
23516-AF
|
CART BODY -- R.H.
|
£179.20
|
Add
|
|
002
|
23518-AF
|
CART BODY -- R.H.
|
£194.25
|
Add
|
|
003
|
12502-AF
|
TAILGATE
|
N/A
|
POA
|
|
003
|
23503-AF
|
TAILGATE
|
£74.21
|
Add
|
|
003
|
12504-AF
|
TAILGATE
|
N/A
|
POA
|
|
004
|
62458-AF
|
Tailgate Reinforcement Bracket 62458
|
£98.48
|
Add
|
|
004
|
62457-AF
|
Tailgate Reinforcement Bracket 62457
|
£103.07
|
Add
|
|
005
|
23547-AF
|
INNER BRACKET 092.34.066
|
£7.11
|
Add
|
|
005
|
23549-AF
|
GUIDE, TAILGATE -- INSIDE
|
£13.08
|
Add
|
|
006
|
23486-AF
|
OUTER BRACKET 092.34.067
|
£21.40
|
Add
|
|
006
|
23548-AF
|
Tailgate Guide 23548
|
£11.15
|
Add
|
|
007
|
23492-AF
|
Front Panel 23492
|
£96.74
|
Add
|
|
007
|
23493-AF
|
FRONT PANEL
|
£72.11
|
Add
|
|
007
|
23490-AF
|
Front Panel 23490
|
£172.00
|
Add
|
|
008
|
23506-AF
|
SUPPORT-AXLE-FR 23506
|
£131.29
|
Add
|
|
008
|
23507-AF
|
Wheel Support 23507
|
£240.05
|
Add
|
|
008
|
23508-AF
|
WHEEL SUPPORT
|
N/A
|
POA
|
|
008
|
23487-AF
|
Wheel Support 23487
|
£240.05
|
Add
|
|
009
|
23095-AF
|
Brace fender 092.34.070
|
£50.57
|
Add
|
|
009
|
23297-AF
|
LATCH STAND BRACKET
|
£56.74
|
Add
|
|
009
|
23363-AF
|
LATCH STAND BRACKET
|
£66.44
|
Add
|
|
010
|
62455-AF
|
ASS`Y, LATCH LOCK AF-62455
|
£53.63
|
Add
|
|
011
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
012
|
23505-AF
|
DRAW BAR TONGUE
|
N/A
|
POA
|
|
012
|
23482-AF
|
DRAW BAR TONGUE
|
£72.53
|
Add
|
|
012
|
23481-AF
|
DRAW BAR TONGUE
|
£64.49
|
Add
|
|
013
|
23026-AF
|
Axle, 3/4" 23026
|
£104.98
|
Add
|
|
013
|
23299-AF
|
WHEEL-AXLE 1" DIA.
|
£125.11
|
Add
|
|
013
|
23358-AF
|
AXLE - 1" DIA. X 33-5/8" LG.
|
N/A
|
POA
|
|
013
|
23488-AF
|
Axle, Wheel 1" Dia. 23488
|
£125.17
|
Add
|
|
014
|
23484-AF
|
Front Corner Cap 23484
|
£21.81
|
Add
|
|
015
|
62359-AF
|
AXLE EXTENSION ASS'Y.
|
£76.61
|
Add
|
|
016
|
43008-AF
|
WHEEL 4.8 x 4
|
£60.36
|
Add
|
|
016
|
69599-AF
|
WHEEL ASSY
|
£257.23
|
Add
|
|
016
|
43649-AF
|
WHEEL ASS'Y. COMP.-20 X 10-8
|
£279.15
|
Add
|
|
017
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
017
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
018
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
018
|
43601-AF
|
WASHER
|
£8.99
|
Add
|
|
019
|
731-0484A
|
HUB CAP
|
£5.05
|
Add
|
|
020
|
43175-AF
|
Hex Bolt, 1/4-20 x 1/2" * 43175
|
£4.15
|
Add
|
|
020
|
43175-AF
|
Hex Bolt, 1/4-20 x 1/2" * 43175
|
£4.15
|
Add
|
|
021
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
022
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
023
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
023
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
024
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
024
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
025
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
025
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
026
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
027
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
028
|
43814-AF
|
SLOTTED TRUSS HEADBOLT(5/16-18x3/4)
|
£3.11
|
Add
|
|
029
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
030
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
031
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
032
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
033
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
|
05-Jun
|
23548-AF
|
Tailgate Guide 23548
|
£11.15
|
Add
|
