FG317_5000

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

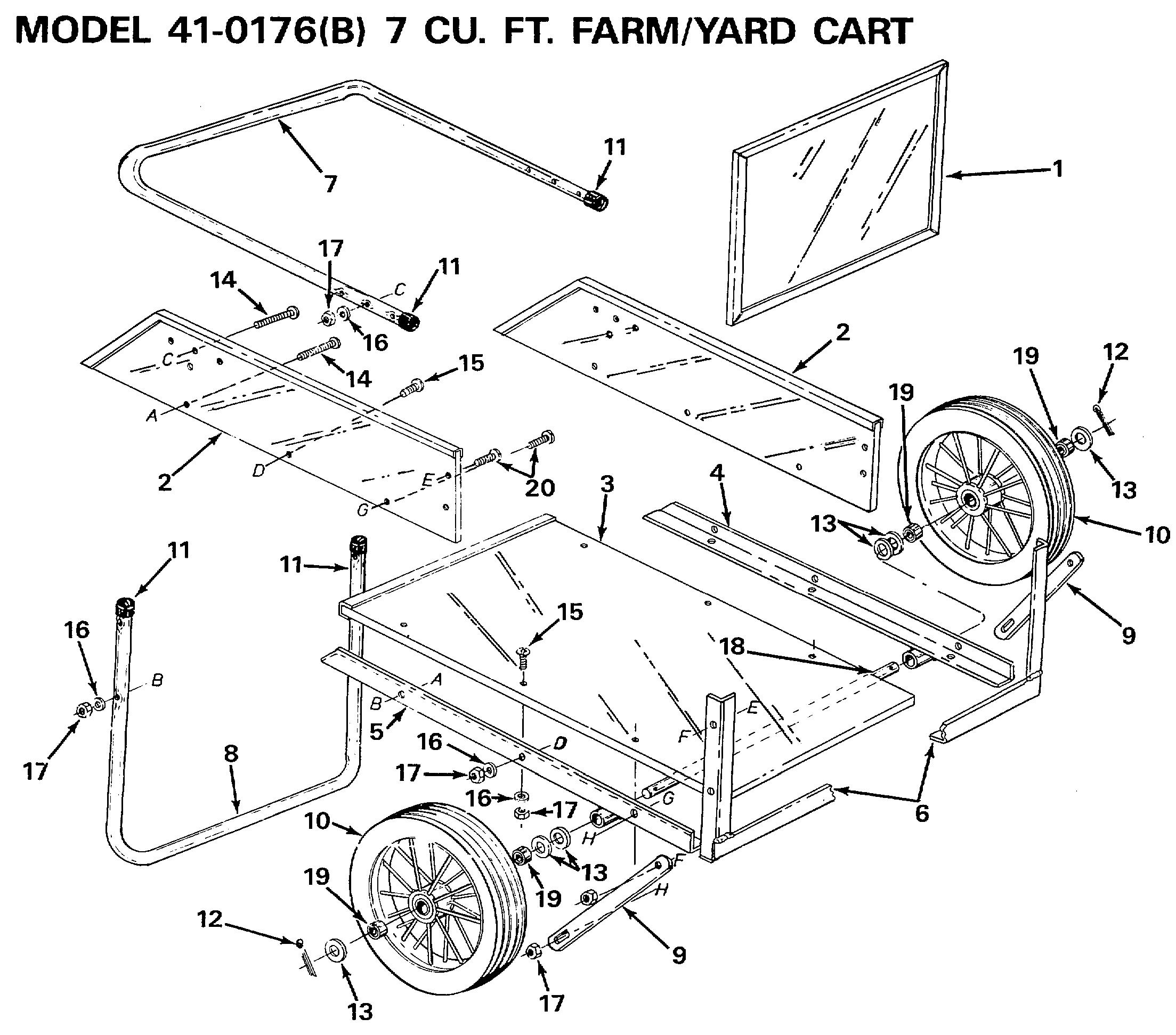

Ref	No	Description	Price
	44015-AF	OWNER'S MANUAL	N/A	POA
001	44012-AF	FRONT PANEL	N/A	POA
002	44013-AF	END PLATE 44013	£48.64	Add
003	44014-AF	BOTTOM PANEL	N/A	POA
004	62527-AF	SIDE ANGLE ASSEMBLY-L.H.	N/A	POA
005	62528-AF	SIDE ANGLE ASSEMBLY-R.H.	N/A	POA
006	62529-AF	FRONT ANGLE ASSEMBLY	N/A	POA
007	44018-AF	HANDLE TUBE	N/A	POA
008	44019-AF	LEG TUBE	N/A	POA
009	23606-AF	SUPPORT STRAP	N/A	POA
010	43944-AF	WHEEL ASSEMBLY COMPLETE W/BEARINGS (20")	N/A	POA
011	44021-AF	TUBE CAPS	N/A	POA
012	43010-AF	COTTER PIN	£3.49	Add
013	43949-AF	FLAT WASHERS 25/32" I.D. X 1-1/2" O.D. X 3/32" TK.	N/A	POA
014	44022-AF	TRUSS HEAD SCREWS 1/4-20 X 1-3/4" LG.	N/A	POA
015	44023-AF	TRUSS HEAD SCREWS 1/4-20 X 3/4" LG.	N/A	POA
016	43088-AF	FLAT WASHER	£3.11	Add
017	43178-AF	Hex Nut, 1/4-20 Thread	£3.37	Add
018	23593-AF	AXLE, WHEEL	N/A	POA
019	44016-AF	BEARING, BALL 3/4" I.D.	£29.47	Add
020	44259-AF	TRUSS HEAD SCREWS 1/4-20 X 1" LG.	N/A	POA
