FG317_6000

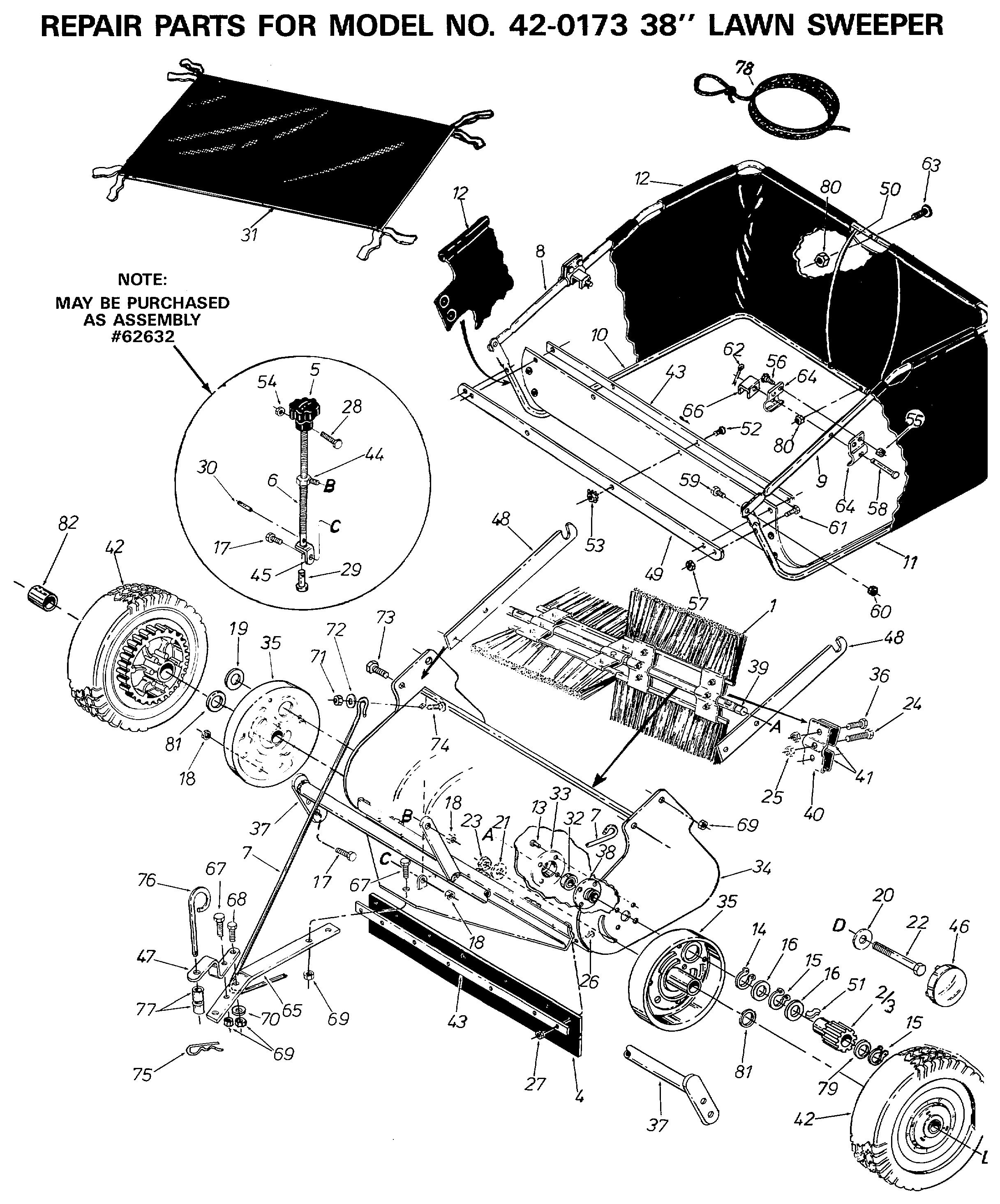

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG317_6000

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
43990-AF OWNER'S MANUAL N/A POA
001 43905-AF BRUSH £27.85 Add
002 2692-6-AF DRIVE PINION R.H. AF-2692-6 £25.10 Add
003 2692-7-AF DRIVE PINION LH AF-2692-7 £21.85 Add
004 43673-AF SKIRT £21.35 Add
005 43654-AF GRIFFRAD 43654 £31.55 Add
006 43641-AF SCREW, HT ADJ PLTD 43641 £68.92 Add
007 43644-AF BRACE ROD - 38" LAWN SWEEP £75.98 Add
008 43974-AF ROD,TIE 43974 £48.92 Add
009 43975-AF ROD,TIE 43975 £46.50 Add
010 43976-AF ROD,TIE 43976 £47.89 Add
011 43977-AF TUBE 43977 £45.47 Add
012 43651-AF ASSY HOPPER BAG 43651 £229.80 Add
013 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
014 43655-AF SPANNRING.75" 43655 £4.15 Add
015 AF-1650-21 RETAINING RING £2.61 Add
016 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
017 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
018 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
019 44008-AF WASHER £3.24 Add
020 0141-000 WASHER £3.39 Add
021 43070-AF Washer, 3/8" £3.91 Add
022 43656-AF SKT.-SCHRAUBE 43656 £9.46 Add
023 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
024 43661-AF HEX BOLT £3.11 Add
025 712-0291 LOCK-NUT £2.77 Add
026 1095-AF SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP N/A POA
027 43662-AF Lock Nut, 10-32 43662 £3.73 Add
028 43657-AF HEX BOLT #10-32 X 2-1/4" LG. - 38" LAWN SWEEP £3.16 Add
029 43658-AF PIN, CLEVIS W/HOLE - 38" LAWN SWEEP £10.53 Add
030 43659-AF PIN, SPRING 3/16x1 AF-43659 £3.48 Add
031 43687-AF BAG WIND SHIELD 38 IN AF-43687 £30.39 Add
032 HG-44232P BALL BEARING £70.26 Add
033 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
034 62354-AF SWEEPER HOUSING ASS'Y. N/A POA
035 62341-AF STAUBSCHUTZDECKEL ZUS. 62341 £61.58 Add
036 43012-AF BOLT £3.32 Add
037 62352-AF ADJUSTMENT ROD ASS'Y. - 38" LAWN SWEEP £61.12 Add
038 62355-AF BRUSH BUSHING ASS'Y. - 32" LAWN SWEEP £54.66 Add
039 23596-AF BRUSH SHAFT £95.94 Add
040 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
041 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
042 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
043 23343-AF PLATE-SHAVE 23343 £19.62 Add
044 62356-AF FERRULE-ADJ 62356 £25.55 Add
045 23339-AF BRACKET, GATE SLIDE ANGLE 23339 £12.93 Add
046 2674-32-AF Hub Cap 2674-32 N/A POA
047 23014-AF HITCH BRACKET £31.67 Add
048 23330-AF ARM, BAG MT LG 23330 £20.87 Add
049 23352-AF Strap, Bag Frame 23352 £28.38 Add
050 43926-AF HOPPER SUPPORT ROD £8.99 Add
051 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
052 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
053 43662-AF Lock Nut, 10-32 43662 £3.73 Add
054 44114-AF HEX LOCK NUT #10-32 THD. N/A POA
055 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
056 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
057 712-0291 LOCK-NUT £2.77 Add
058 43513-AF CLEVIS PIN (RED) £8.53 Add
059 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
060 43082-AF HEX LOCK NUT £4.12 Add
061 1509-090 NO LONGER AVAILABLE N/A POA
062 714-0474 PIN (RED) £3.20 Add
063 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
064 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
065 23349-AF DRAW BAR 23349 £32.20 Add
066 23354-AF BAIL 23354 £11.94 Add
067 43001-AF HEX BOLT (RED) £3.49 Add
068 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
069 43082-AF HEX LOCK NUT £4.12 Add
070 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
071 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
072 43081-AF FLAT WASHER £3.49 Add
073 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
074 43080-AF CARRIAGE BOLT £3.49 Add
075 43343-AF PIN COTTER £4.20 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43737-AF Hopper Rope 43737 £5.99 Add
079 44006-AF WASHER £5.01 Add
080 712-0291 LOCK-NUT £2.77 Add
081 44008-AF WASHER £3.24 Add
082 1652-52 WHEEL BEARING - 32" LAWN SWEEP N/A POA
