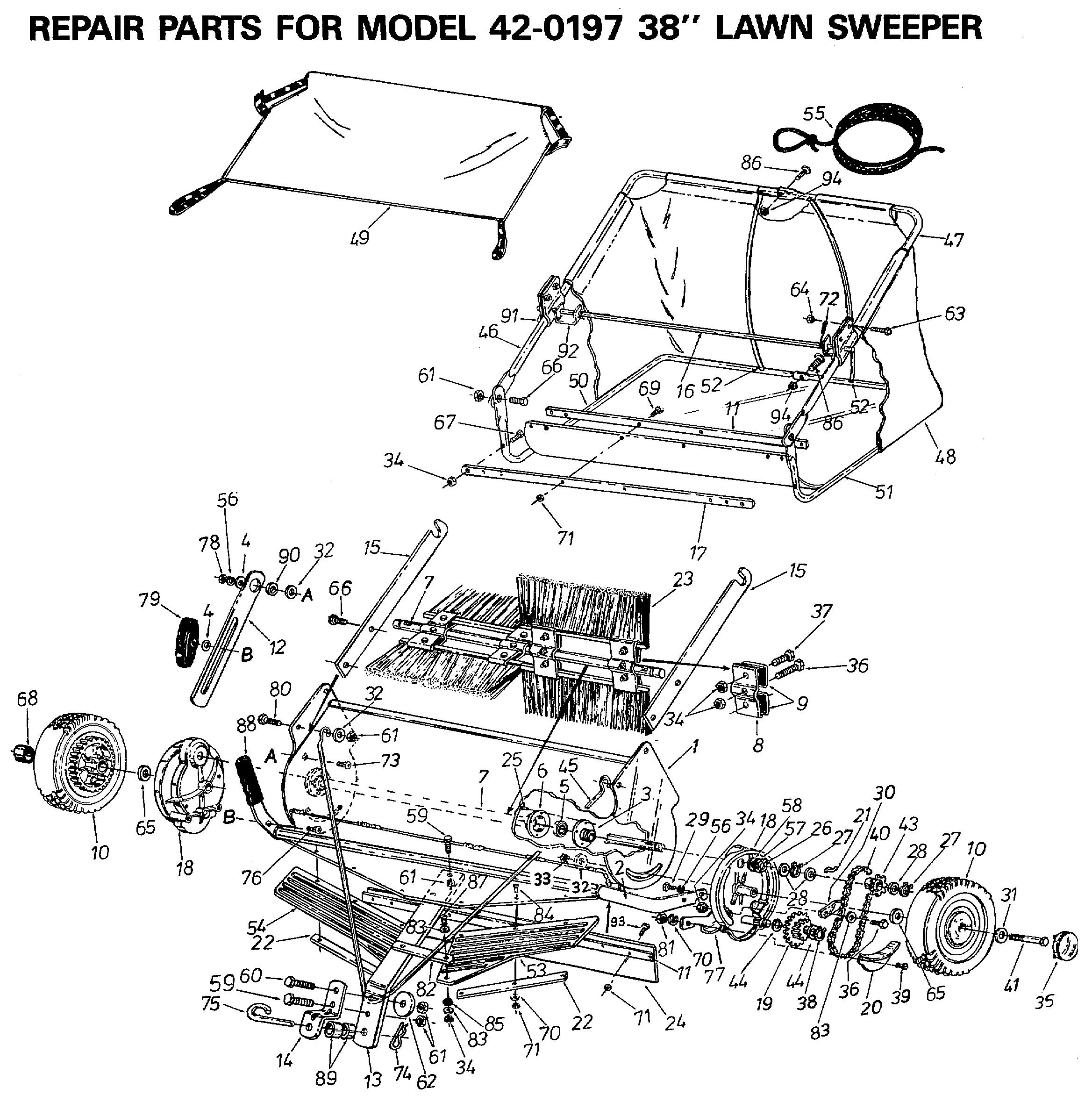

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
44073-AF
|
OWNER'S MANUAL
|
£8.75
|
Add
|
|
001
|
62500-AF
|
HOUSING 62500
|
£250.45
|
Add
|
|
002
|
62503-AF
|
ADJUSTMENT ROD ASS'Y.
|
£70.47
|
Add
|
|
003
|
62489-AF
|
LAGERSCHALE AUßEN 62489
|
£42.99
|
Add
|
|
004
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
005
|
HG-44232P
|
BALL BEARING
|
£70.26
|
Add
|
|
006
|
AF-1629-56
|
Retainer, Dust Cover 1629-56
|
£26.36
|
Add
|
|
007
|
23574-AF
|
BRUSH SHAFT 23574
|
£64.68
|
Add
|
|
008
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
009
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
010
|
44985-AF
|
WHEEL ASSY. FOR 38" SWEEPER
|
£116.26
|
Add
|
|
011
|
23343-AF
|
PLATE-SHAVE 23343
|
£19.62
|
Add
|
|
012
|
23387-AF
|
STELLSCHIENE 23387
|
£11.38
|
Add
|
|
013
|
23349-AF
|
DRAW BAR 23349
|
£32.20
|
Add
|
|
014
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
015
|
23595-AF
|
ARM, BAG MT LG 23595
|
£28.19
|
Add
|
|
016
|
23601-AF
|
ROD,TIE 23601
|
£28.76
|
Add
|
|
017
|
23352-AF
|
Strap, Bag Frame 23352
|
£28.38
|
Add
|
|
018
|
62511-AF
|
HOUSING WHEEL DRIVE ASS'Y.
|
£182.81
|
Add
|
|
019
|
62490-AF
|
GEAR SPROCKET SUB ASSY
|
£72.48
|
Add
|
|
020
|
23573-AF
|
DESTPROOF CAP 23573
|
£8.85
|
Add
|
|
021
|
1671-1-AF
|
PAWL MOD 60 1671-1
|
£11.82
|
Add
|
|
022
|
23597-AF
|
REINFORCEMENT-HOOD 23597
|
£18.87
|
Add
|
|
023
|
47488-AF
|
BRUSH
|
£20.79
|
Add
|
|
024
|
43673-AF
|
SKIRT
|
£21.35
|
Add
|
|
025
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
43655-AF
|
SPANNRING.75" 43655
|
£4.15
|
Add
|
|
027
|
1650-21-AF
|
RETAINING RING--.594" I.D.
|
£3.73
|
Add
|
|
028
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
029
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
030
|
44011-AF
|
CHAIN GUIDE
|
£12.89
|
Add
|
|
031
|
0141-000
|
WASHER
|
£3.39
|
Add
|
|
032
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
033
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
034
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
035
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
036
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
037
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
038
|
43894-AF
|
STOPPING RING 43894
|
£3.76
|
Add
|
|
039
|
44004-AF
|
SCREW-TAP 44004
|
£3.49
|
Add
|
|
040
|
43931-AF
|
ROLLER CHAIN 3/8 X 1/2-40
|
£21.47
|
Add
|
|
041
|
43932-AF
|
BOLT, ROUND HEAD 43932
|
£5.18
|
Add
|
|
042
|
43890-AF
|
SPROCKET 43890
|
£26.12
|
Add
|
|
043
|
43889-AF
|
SPROCKET LH
|
£24.33
|
Add
|
|
044
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
045
|
43958-AF
|
BRACE-VAR SP 43958
|
£22.35
|
Add
|
|
046
|
43966-AF
|
RAHMENROHR OBEN RECHTS 43966
|
£44.77
|
Add
|
|
047
|
43967-AF
|
RAHMENRECHTS OBEN LINKS 43967
|
£47.55
|
Add
|
|
048
|
44067-AF
|
BEHÄLTERABDECKUNG 44067
|
£339.43
|
Add
|
|
049
|
43937-AF
|
WIND SCREEN
|
£49.36
|
Add
|
|
050
|
43968-AF
|
LOWER HOPPER TUBE RH
|
£42.13
|
Add
|
|
051
|
43969-AF
|
LOWER HOPPER TUBE LH
|
£44.74
|
Add
|
|
052
|
43938-AF
|
ROD, HOPPER SUPPORT
|
£12.19
|
Add
|
|
053
|
43939-AF
|
HITCH SHIELD-L.H.
|
N/A
|
POA
|
|
054
|
43940-AF
|
SEITENABDECKUNG RECHTS 43940
|
£38.10
|
Add
|
|
055
|
43737-AF
|
Hopper Rope 43737
|
£5.99
|
Add
|
|
056
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
057
|
736-0287
|
FLAT WASHER .78" X 1.25" X .062"
|
£7.92
|
Add
|
|
058
|
736-0198
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
059
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
060
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
061
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
062
|
R19172410-AF
|
WASHER-FLAT AF-R19172410
|
N/A
|
POA
|
|
063
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
064
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
065
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
066
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
067
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
068
|
1652-52
|
WHEEL BEARING - 32" LAWN SWEEP
|
N/A
|
POA
|
|
069
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
071
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
072
|
714-0474
|
PIN (RED)
|
£3.20
|
Add
|
|
073
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
074
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
075
|
23353-AF
|
HITCH PIN
|
£19.20
|
Add
|
|
076
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
077
|
23602-AF
|
WHEEL HOUSING SHIELD
|
£20.28
|
Add
|
|
078
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
079
|
43720-AF
|
KNOB (RED)
|
£7.83
|
Add
|
|
080
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
081
|
1534-8-AF
|
HEX LOCK NUT 10-32 PL AF-1534-8
|
£2.64
|
Add
|
|
082
|
43941-AF
|
LINK:PIVOT 43941
|
£9.77
|
Add
|
|
083
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
084
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
085
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
086
|
43978-AF
|
Bolt, Curved 1.4-20 x 1" 43978
|
£4.05
|
Add
|
|
087
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
088
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
089
|
23368-AF
|
Tube, Hitch Spacer 23368
|
£8.18
|
Add
|
|
090
|
23400-AF
|
SPACER
|
£5.85
|
Add
|
|
091
|
23331-AF
|
THROTTLE CABLE CLIP 23331
|
£12.01
|
Add
|
|
092
|
23354-AF
|
BAIL 23354
|
£11.94
|
Add
|
|
093
|
1095-AF
|
SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP
|
N/A
|
POA
|
|
094
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
