Parts list

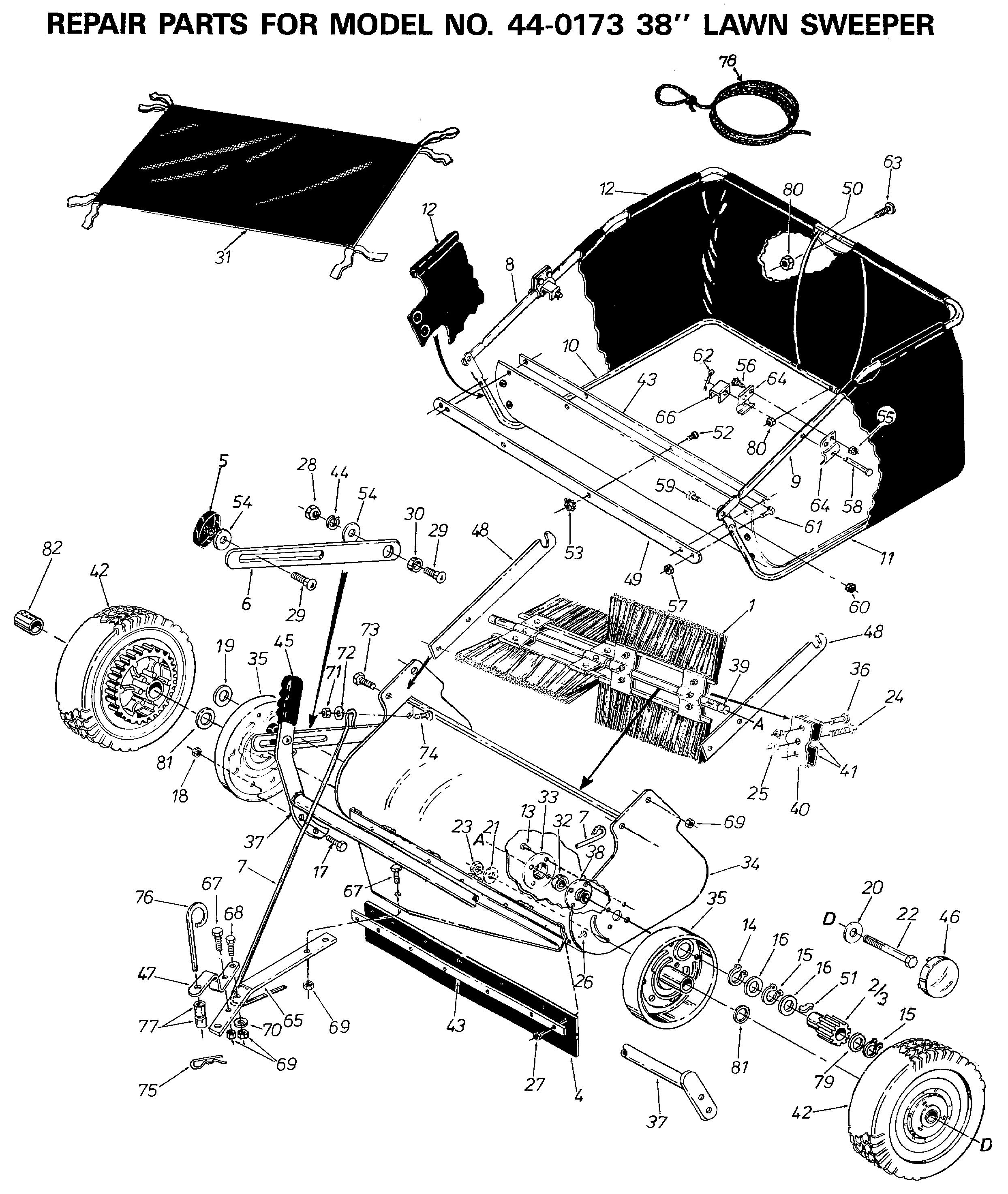

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
44281-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
43905-AF
|
BRUSH
|
£27.85
|
Add
|
|
002
|
2692-6-AF
|
DRIVE PINION R.H. AF-2692-6
|
£25.10
|
Add
|
|
003
|
2692-7-AF
|
DRIVE PINION LH AF-2692-7
|
£21.85
|
Add
|
|
004
|
43673-AF
|
SKIRT
|
£21.35
|
Add
|
|
005
|
43720-AF
|
KNOB (RED)
|
£7.83
|
Add
|
|
006
|
23387-AF
|
STELLSCHIENE 23387
|
£11.38
|
Add
|
|
007
|
43644-AF
|
BRACE ROD - 38" LAWN SWEEP
|
£75.98
|
Add
|
|
008
|
43974-AF
|
ROD,TIE 43974
|
£48.92
|
Add
|
|
009
|
43975-AF
|
ROD,TIE 43975
|
£46.50
|
Add
|
|
010
|
43976-AF
|
ROD,TIE 43976
|
£47.89
|
Add
|
|
011
|
43977-AF
|
TUBE 43977
|
£45.47
|
Add
|
|
012
|
43651-AF
|
ASSY HOPPER BAG 43651
|
£229.80
|
Add
|
|
013
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
014
|
43655-AF
|
SPANNRING.75" 43655
|
£4.15
|
Add
|
|
015
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
016
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
017
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
018
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
019
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
020
|
0141-000
|
WASHER
|
£3.39
|
Add
|
|
021
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
022
|
43656-AF
|
SKT.-SCHRAUBE 43656
|
£9.46
|
Add
|
|
023
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
024
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
025
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
026
|
1095-AF
|
SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP
|
N/A
|
POA
|
|
027
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
028
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
029
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
030
|
23400-AF
|
SPACER
|
£5.85
|
Add
|
|
031
|
43687-AF
|
BAG WIND SHIELD 38 IN AF-43687
|
£30.39
|
Add
|
|
032
|
HG-44232P
|
BALL BEARING
|
£70.26
|
Add
|
|
033
|
AF-1629-56
|
Retainer, Dust Cover 1629-56
|
£26.36
|
Add
|
|
034
|
62662-AF
|
SWEEPER HOUSING ASS'Y.
|
N/A
|
POA
|
|
035
|
62341-AF
|
STAUBSCHUTZDECKEL ZUS. 62341
|
£61.58
|
Add
|
|
036
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
037
|
62649-AF
|
ADJUSTMENT ROD ASS'Y.
|
£67.56
|
Add
|
|
038
|
62355-AF
|
BRUSH BUSHING ASS'Y. - 32" LAWN SWEEP
|
£54.66
|
Add
|
|
039
|
23596-AF
|
BRUSH SHAFT
|
£95.94
|
Add
|
|
040
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
041
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
042
|
44985-AF
|
WHEEL ASSY. FOR 38" SWEEPER
|
£116.26
|
Add
|
|
043
|
23343-AF
|
PLATE-SHAVE 23343
|
£19.62
|
Add
|
|
044
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
045
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
046
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
047
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
048
|
23330-AF
|
ARM, BAG MT LG 23330
|
£20.87
|
Add
|
|
049
|
23352-AF
|
Strap, Bag Frame 23352
|
£28.38
|
Add
|
|
050
|
43926-AF
|
HOPPER SUPPORT ROD
|
£8.99
|
Add
|
|
051
|
1671-1-AF
|
PAWL MOD 60 1671-1
|
£11.82
|
Add
|
|
052
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
053
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
054
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
055
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
056
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
057
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
058
|
43513-AF
|
CLEVIS PIN (RED)
|
£8.53
|
Add
|
|
059
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
060
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
061
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
062
|
714-0474
|
PIN (RED)
|
£3.20
|
Add
|
|
063
|
43978-AF
|
Bolt, Curved 1.4-20 x 1" 43978
|
£4.05
|
Add
|
|
064
|
23331-AF
|
THROTTLE CABLE CLIP 23331
|
£12.01
|
Add
|
|
065
|
23349-AF
|
DRAW BAR 23349
|
£32.20
|
Add
|
|
066
|
23354-AF
|
BAIL 23354
|
£11.94
|
Add
|
|
067
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
068
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
069
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
070
|
R19172410-AF
|
WASHER-FLAT AF-R19172410
|
N/A
|
POA
|
|
071
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
072
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
073
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
074
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
075
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
076
|
23353-AF
|
HITCH PIN
|
£19.20
|
Add
|
|
077
|
23368-AF
|
Tube, Hitch Spacer 23368
|
£8.18
|
Add
|
|
078
|
43737-AF
|
Hopper Rope 43737
|
£5.99
|
Add
|
|
079
|
44006-AF
|
WASHER
|
£5.01
|
Add
|
|
080
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
081
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
082
|
1652-52
|
WHEEL BEARING - 32" LAWN SWEEP
|
N/A
|
POA
|
