FG318_2300

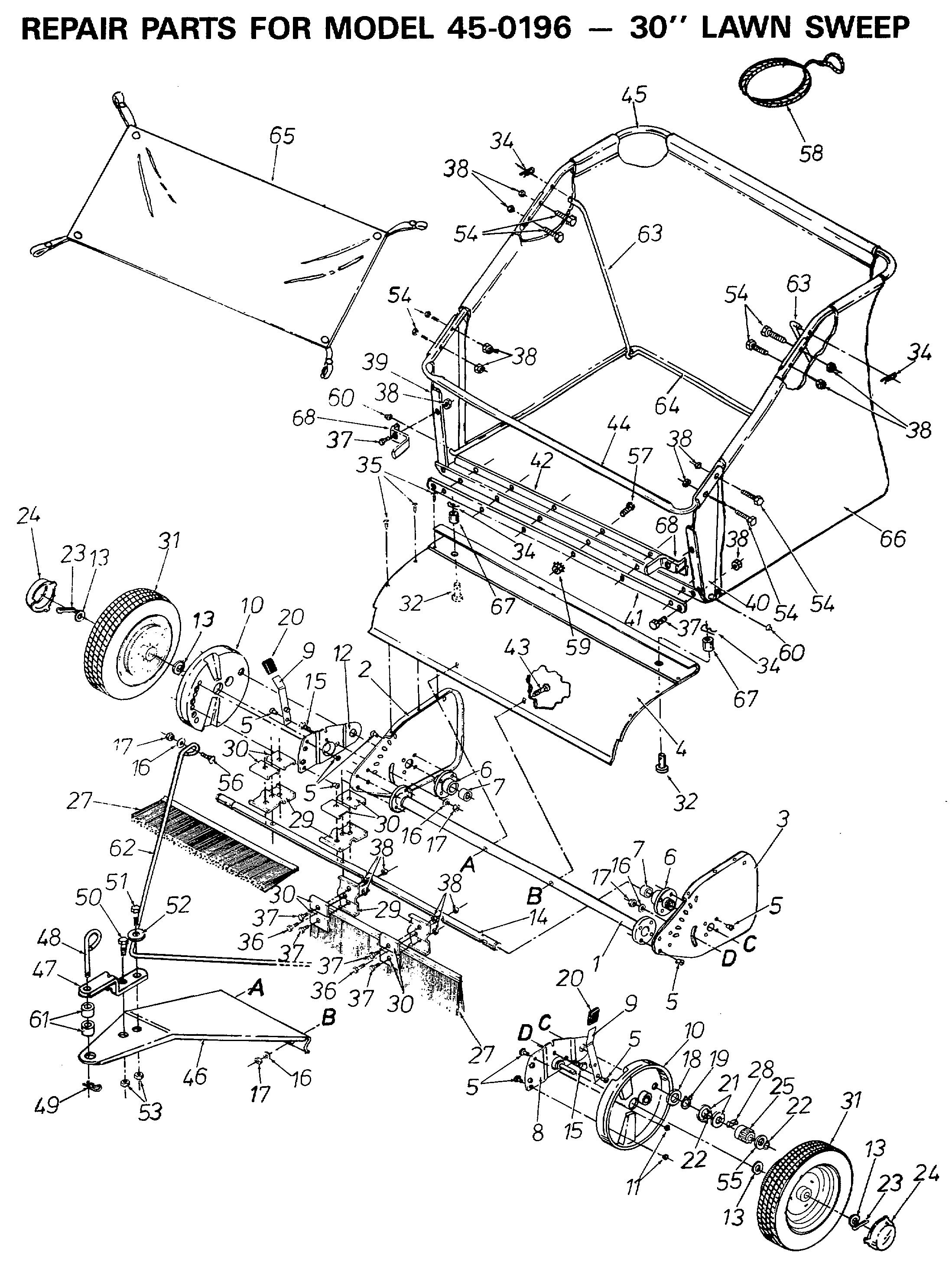

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_2300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44328-AF OWNER'S MANUAL N/A POA
001 62493-AF SUB-ASS'Y. HITCH TUBE & FLANGES £59.15 Add
002 23562-AF END PLATE, R.H. £35.35 Add
003 23563-AF END PLATE, L.H. £37.54 Add
004 23578-AF WRAPPER, SWEEPER HOUSING £74.70 Add
005 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
006 62488-AF ASS'Y. BRUSH BUSHING WLDM. £47.32 Add
007 1652-1-AF BUSHING BRONZE N/A POA
008 62495-AF RADACHSE LI. 62495 £44.77 Add
009 1155-47 ASS'Y. SPRING N/A POA
010 43900-AF COVER-HARD TOP 43900 £27.59 Add
011 43910-AF Washer, Flat #10 SAE 43910 £3.19 Add
012 62494-AF RADACHSE RE. 62494 £44.77 Add
013 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
014 23567-AF Brush Shaft 23567 £168.59 Add
015 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
016 43081-AF FLAT WASHER £3.49 Add
017 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
018 44008-AF WASHER £3.24 Add
019 43655-AF SPANNRING.75" 43655 £4.15 Add
020 1643-60 KNOB N/A POA
021 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
022 AF-1650-21 RETAINING RING £2.61 Add
023 714-0474 PIN (RED) £3.20 Add
024 2674-32-AF Hub Cap 2674-32 N/A POA
025 43885-AF PINION LH 11TEETH £21.85 Add
026 43886-AF Gear, Pinion R.H. (not shown) 43886 £23.48 Add
027 43902-AF BRUSH £20.16 Add
028 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
029 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
030 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
031 43987-AF WHEEL RIM, GEAR & TIRE 1-3/4" £60.67 Add
032 43982-AF PIN, CLEVIS 1/4" X 5/8" 43982 £4.58 Add
034 43055-AF COTTER PIN £6.04 Add
035 1522-1-AF SCREW(10-12 X 5/8 SHEET METAL) N/A POA
036 43661-AF HEX BOLT £3.11 Add
037 43012-AF BOLT £3.32 Add
038 712-0291 LOCK-NUT £2.77 Add
039 23582-AF BRACKET, HOPPER L.H. N/A POA
040 23583-AF BRACKET, HOPPER L.H. N/A POA
041 23584-AF STRAP, HOPPER £20.54 Add
042 23725-AF RETAINER, HOPPER STRAP £20.28 Add
043 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.48 Add
044 43906-AF TUBE, HOPPER (LOWER) £57.35 Add
045 43907-AF TUBE, HOPPER (UPPER) £49.76 Add
046 23586-AF TONGUE, HITCH £47.12 Add
047 23014-AF HITCH BRACKET £31.67 Add
048 23353-AF HITCH PIN £19.20 Add
049 43343-AF PIN COTTER £4.20 Add
050 43001-AF HEX BOLT (RED) £3.49 Add
051 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
052 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
053 43082-AF HEX LOCK NUT £4.12 Add
054 43661-AF HEX BOLT £3.11 Add
055 44006-AF WASHER £5.01 Add
056 43080-AF CARRIAGE BOLT £3.49 Add
057 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
058 43737-AF Hopper Rope 43737 £5.99 Add
059 43662-AF Lock Nut, 10-32 43662 £3.73 Add
060 726-0106 CAP SPEED NUT £3.33 Add
061 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
062 43979-AF STRAP:LIFT HANDLE SUPPORT 43979 £21.81 Add
063 43954-AF ROD, HOPPER SUPPORT £26.99 Add
064 43955-AF ROD, HOPPER FRAME (BOTTOM) N/A POA
065 43686-AF BAG 43686 £29.60 Add
066 44327-AF BAG, HOPPER 30" £185.26 Add
067 23727-AF Spacer 23727 £7.12 Add
068 23726-AF HOPPER BAG STOP BRACKET N/A POA
