FG318_2400

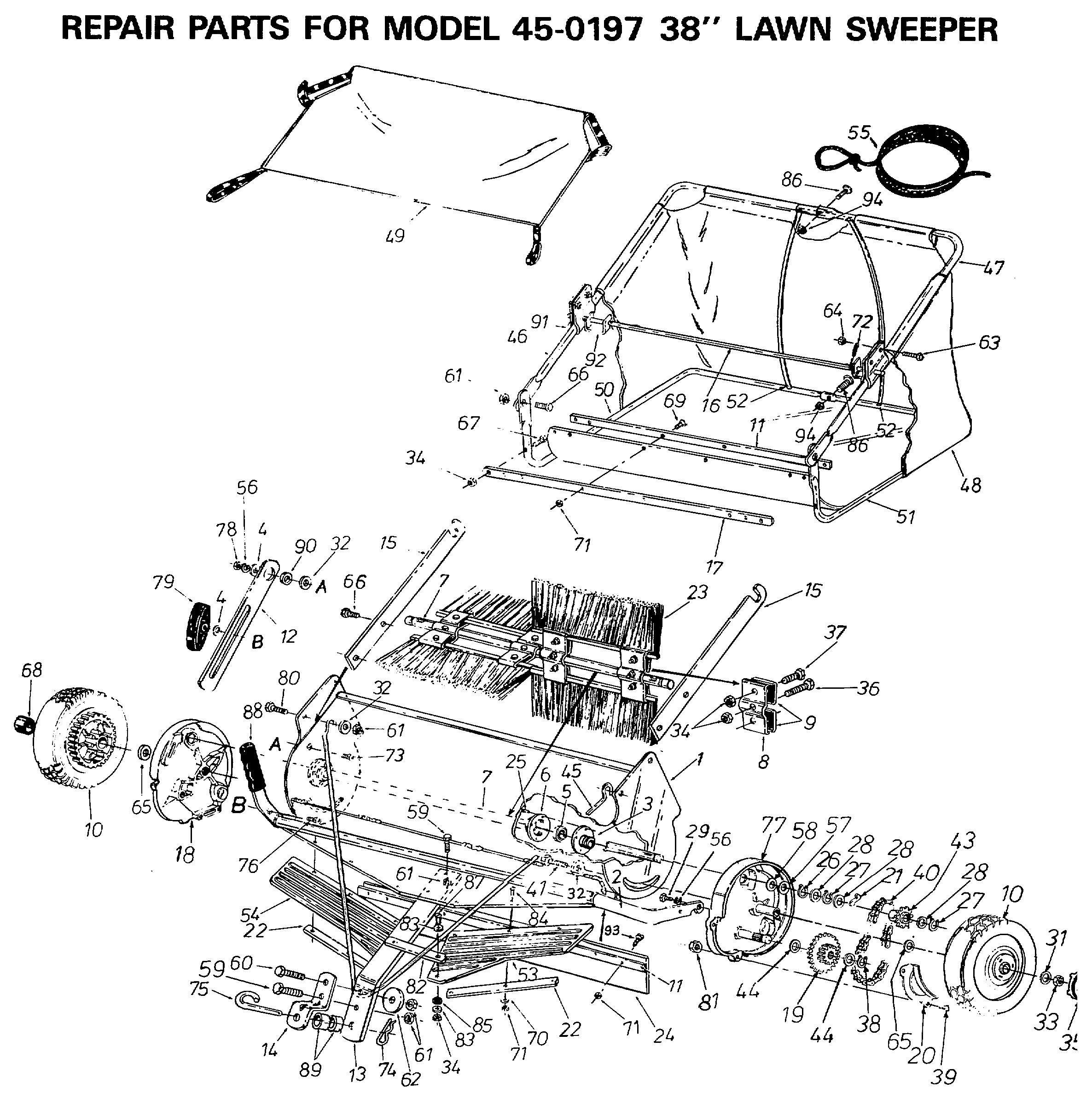

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_2400

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44625-AF OWNER'S MANUAL N/A POA
001 62500-AF HOUSING 62500 £250.45 Add
002 62801-AF ASS`Y, ADJ ROD 38" HI SPEED 62801 £65.85 Add
003 62489-AF LAGERSCHALE AUßEN 62489 £42.99 Add
004 43081-AF FLAT WASHER £3.49 Add
005 HG-44232P BALL BEARING £70.26 Add
006 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
007 23574-AF BRUSH SHAFT 23574 £64.68 Add
008 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
009 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
010 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
011 23343-AF PLATE-SHAVE 23343 £19.62 Add
012 23387-AF STELLSCHIENE 23387 £11.38 Add
013 23349-AF DRAW BAR 23349 £32.20 Add
014 23014-AF HITCH BRACKET £31.67 Add
015 23595-AF ARM, BAG MT LG 23595 £28.19 Add
016 23601-AF ROD,TIE 23601 £28.76 Add
017 23352-AF Strap, Bag Frame 23352 £28.38 Add
018 62792-AF RADGEHÄUSE 62792 £57.96 Add
019 62490-AF GEAR SPROCKET SUB ASSY £72.48 Add
020 23573-AF DESTPROOF CAP 23573 £8.85 Add
021 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
022 23597-AF REINFORCEMENT-HOOD 23597 £18.87 Add
023 47488-AF BRUSH £20.79 Add
024 43673-AF SKIRT £21.35 Add
025 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
026 43655-AF SPANNRING.75" 43655 £4.15 Add
027 AF-1650-21 RETAINING RING £2.61 Add
028 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
029 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
031 0141-000 WASHER £3.39 Add
032 43070-AF Washer, 3/8" £3.91 Add
033 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
034 712-0291 LOCK-NUT £2.77 Add
035 2674-32-AF Hub Cap 2674-32 N/A POA
036 43661-AF HEX BOLT £3.11 Add
037 43012-AF BOLT £3.32 Add
038 43894-AF STOPPING RING 43894 £3.76 Add
039 44004-AF SCREW-TAP 44004 £3.49 Add
040 44542-AF CHAIN £15.47 Add
041 43932-AF BOLT, ROUND HEAD 43932 £5.18 Add
042 43890-AF SPROCKET 43890 £26.12 Add
043 43889-AF SPROCKET LH £24.33 Add
044 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
045 43958-AF BRACE-VAR SP 43958 £22.35 Add
046 43966-AF RAHMENROHR OBEN RECHTS 43966 £44.77 Add
047 43967-AF RAHMENRECHTS OBEN LINKS 43967 £47.55 Add
048 44067-AF BEHÄLTERABDECKUNG 44067 £339.43 Add
049 43937-AF WIND SCREEN £49.36 Add
050 43968-AF LOWER HOPPER TUBE RH £42.13 Add
051 43969-AF LOWER HOPPER TUBE LH £44.74 Add
052 43938-AF ROD, HOPPER SUPPORT £12.19 Add
053 43939-AF HITCH SHIELD-L.H. N/A POA
054 43940-AF SEITENABDECKUNG RECHTS 43940 £38.10 Add
055 43737-AF Hopper Rope 43737 £5.99 Add
056 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
057 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
058 736-0198 NO LONGER AVAILABLE N/A POA
059 43001-AF HEX BOLT (RED) £3.49 Add
060 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
061 43082-AF HEX LOCK NUT £4.12 Add
062 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
063 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
064 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
065 44008-AF WASHER £3.24 Add
066 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
067 1509-090 NO LONGER AVAILABLE N/A POA
068 1652-52 WHEEL BEARING - 32" LAWN SWEEP N/A POA
069 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
071 43662-AF Lock Nut, 10-32 43662 £3.73 Add
072 714-0474 PIN (RED) £3.20 Add
073 43080-AF CARRIAGE BOLT £3.49 Add
074 43343-AF PIN COTTER £4.20 Add
075 23353-AF HITCH PIN £19.20 Add
076 43080-AF CARRIAGE BOLT £3.49 Add
077 62791-AF RADGEHÄUSE LINKS 62791 £99.19 Add
078 43083-AF HEX NUT £3.32 Add
079 43720-AF KNOB (RED) £7.83 Add
080 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
081 1534-8-AF HEX LOCK NUT 10-32 PL AF-1534-8 £2.64 Add
082 43941-AF LINK:PIVOT 43941 £9.77 Add
083 43088-AF FLAT WASHER £3.11 Add
084 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
085 1543-69-AF Washer, Nylon 1543-069 N/A POA
086 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
087 43012-AF BOLT £3.32 Add
088 43943-AF Handle Grip 43943 £8.46 Add
089 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
090 23400-AF SPACER £5.85 Add
091 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
092 23354-AF BAIL 23354 £11.94 Add
093 1095-AF SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP N/A POA
094 712-0291 LOCK-NUT £2.77 Add
