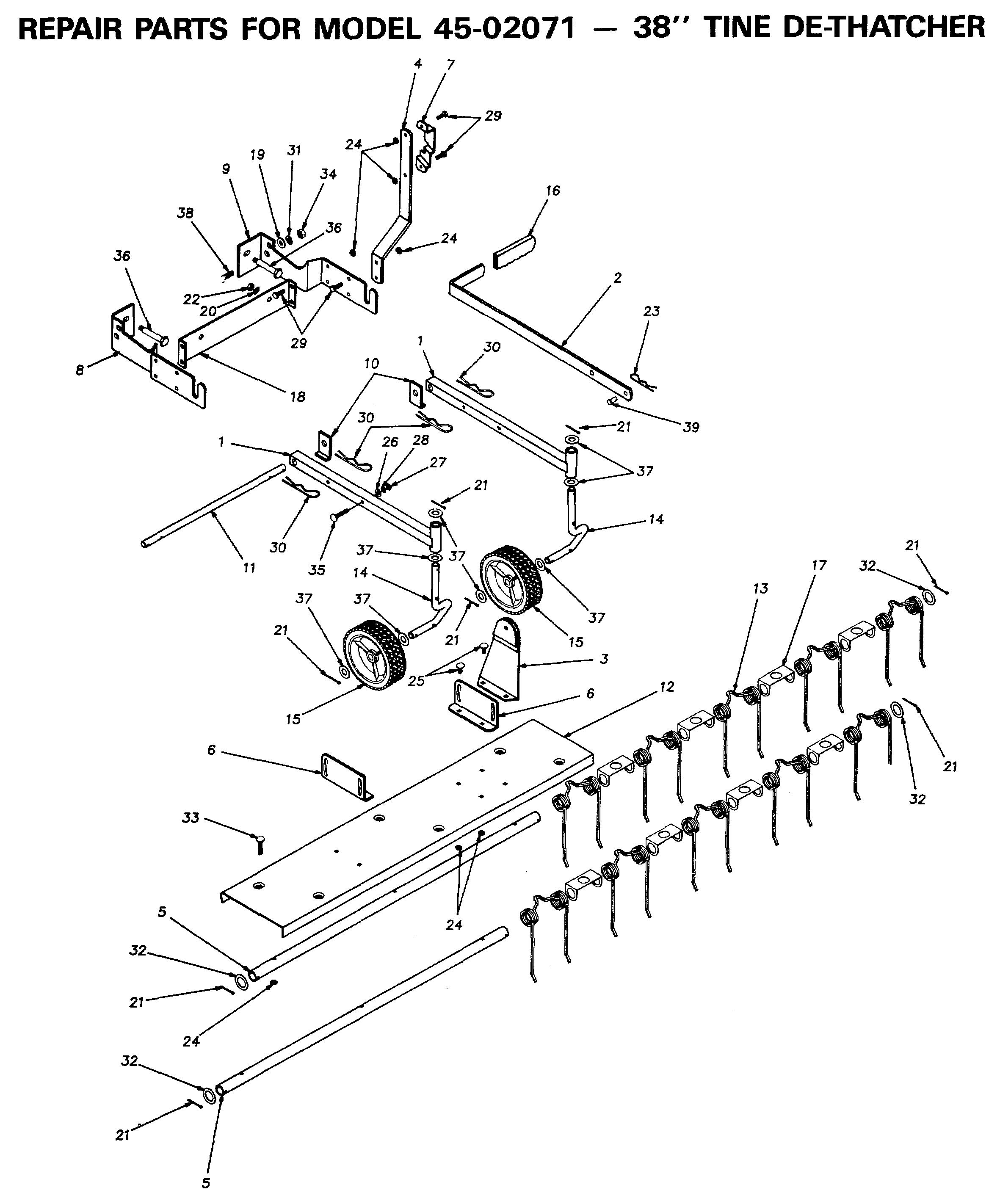

FG318_2600

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	44834-AF	OWNERS MANUAL	N/A	POA
001	62599-AF	ASS'Y. MOUNTING ARM	N/A	POA
002	62600-AF	ASS'Y. LIFT HANDLE	N/A	POA
003	62601-AF	ASS'Y. LIFT HANDLE BRACKET	N/A	POA
004	23674-AF	ARM, LIFT HANDLE	N/A	POA
005	23665-AF	TUBE, SPRING MOUNTING	N/A	POA
006	23666-AF	BRACKET, ANGLE MOUNTING	N/A	POA
007	23673-AF	BRACKET, HANDLE LOCK	£12.88	Add
008	23840-AF	BRACKET, HITCH R.H.	N/A	POA
009	23839-AF	BRACKET, HITCH L.H.	N/A	POA
010	23676-AF	KEEPER, PLATE	N/A	POA
011	23677-AF	SHAFT, MOUNTING	N/A	POA
012	23678-AF	SHIELD, SPRING MOUNTING	N/A	POA
013	43783-AF	SPRING TINE	£14.01	Add
014	44148-AF	AXLE	N/A	POA
015	44238-AF	WHEEL ASSY 44238	£41.00	Add
016	43943-AF	Handle Grip 43943	£8.46	Add
017	44207-AF	BRACKET, SPRING	N/A	POA
018	23688-AF	BRACKET, WEIGHT MOUNT	N/A	POA
019	43070-AF	Washer, 3/8"	£3.91	Add
020	736-0169	L. WASHER	£2.89	Add
021	43010-AF	COTTER PIN	£3.49	Add
022	712-0798	HEX. NUT	£7.61	Add
023	43055-AF	COTTER PIN	£6.04	Add
024	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
025	43080-AF	CARRIAGE BOLT	£3.49	Add
026	43081-AF	FLAT WASHER	£3.49	Add
027	43083-AF	HEX NUT	£3.32	Add
028	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
029	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
030	43343-AF	PIN COTTER	£4.20	Add
031	43555-AF	WASHER 7/16" LOCK	N/A	POA
032	43601-AF	WASHER	£8.99	Add
033	43681-AF	Bolt, Carriage 5/16-18 x 1-1/2" 43681	£3.48	Add
034	R73220700	Nut, 7/16-14	N/A	POA
035	44215-AF	Bolt, Carriage 5/16-18 x 1-3/4" 44215	£3.48	Add
036	44237-AF	BOLT, SHOULDER 3/8"-16 W/1/2-2-1/4	N/A	POA
037	R19212113	Washer, 5/8" SAE	£5.92	Add
038	R74760716	BOLT, HEX 7/16"-14 X 1.0" LG.	N/A	POA
039	44044-AF	CLEVIS PIN 3/8" X 3/4" LG.	N/A	POA
