FG318_2800

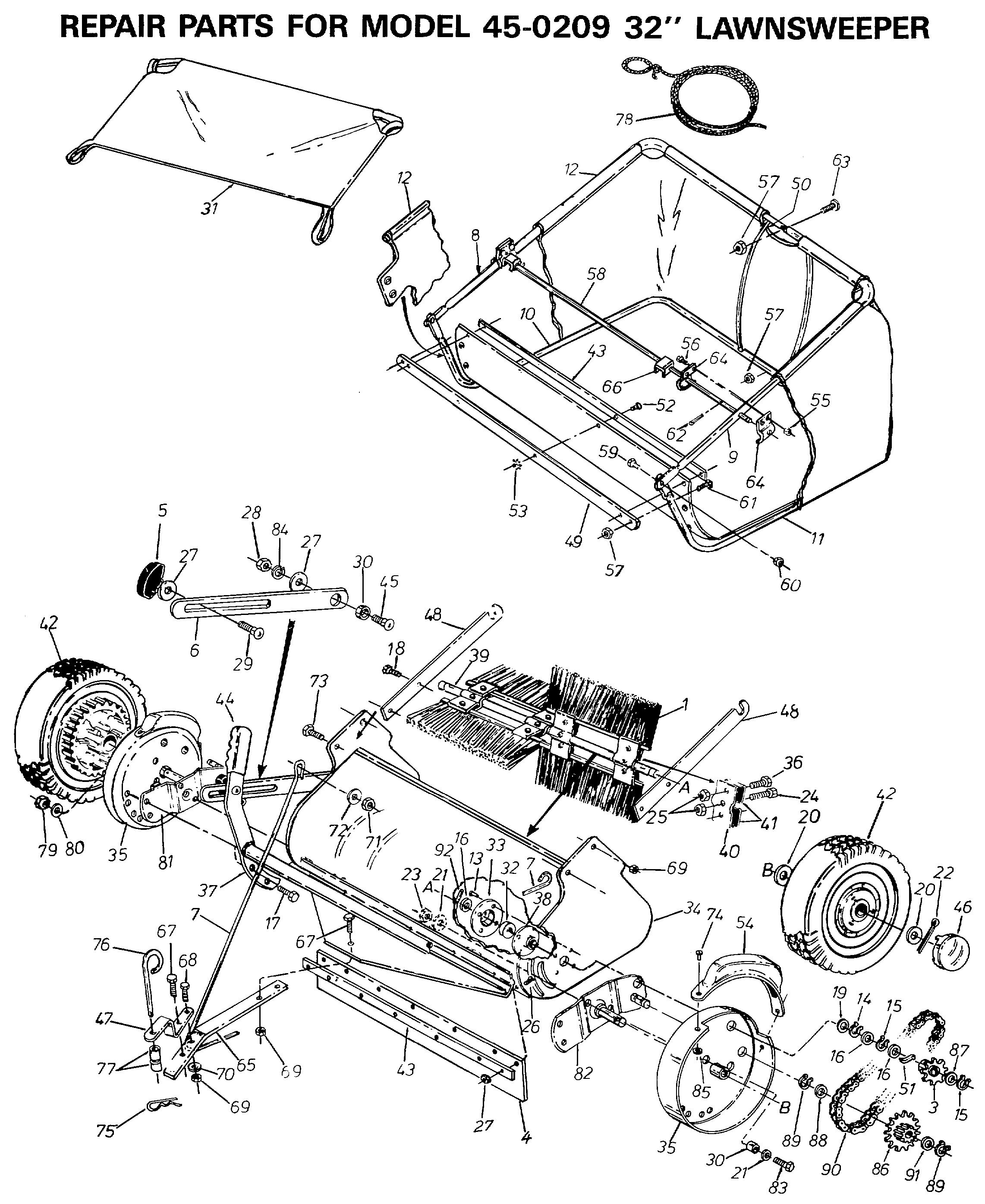

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_2800

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44374-AF OWNER'S MANUAL £8.75 Add
001 43903-AF BRUSH, 32 IN SWEEP 43903 £23.03 Add
002 43890-AF SPROCKET 43890 £26.12 Add
003 43889-AF SPROCKET LH £24.33 Add
004 43645-AF SKIRT, PLASTIC (32") AF-43645 £20.39 Add
005 43720-AF KNOB (RED) £7.83 Add
006 23387-AF STELLSCHIENE 23387 £11.38 Add
007 43979-AF STRAP:LIFT HANDLE SUPPORT 43979 £21.81 Add
008 44309-AF TUBE, HOPPER UPPER L.H.(32HI) AF-44309 £41.50 Add
009 44310-AF TUBE, HOPPER UPPER R.H.(32HI) AF-44310 £44.04 Add
010 43930-AF TUBE, HOPPER LOWER R.H. 32" AF-43930 £43.76 Add
011 43929-AF LOWER HOPPER TUBE RIGHT AF-43929 £46.50 Add
012 44372-AF BAG, HOPPER 32" HI SPEED A-F AF-44372 £346.47 Add
013 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
014 43655-AF SPANNRING.75" 43655 £4.15 Add
015 AF-1650-21 RETAINING RING £2.61 Add
016 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
017 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
018 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
019 44008-AF WASHER £3.24 Add
020 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
021 43070-AF Washer, 3/8" £3.91 Add
022 714-0474 PIN (RED) £3.20 Add
023 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
024 43661-AF HEX BOLT £3.11 Add
025 712-0291 LOCK-NUT £2.77 Add
026 1095-AF SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP N/A POA
027 43081-AF FLAT WASHER £3.49 Add
028 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
029 43080-AF CARRIAGE BOLT £3.49 Add
030 23400-AF SPACER £5.85 Add
031 44313-AF BAG, WINDSCREEN 32 (HI BACK) AF-44313 £47.79 Add
032 HG-44232P BALL BEARING £70.26 Add
033 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
034 62445-AF HOUSING 62445 £191.99 Add
035 44321-AF DUST COVER £41.23 Add
036 43012-AF BOLT £3.32 Add
037 62501-AF STOLLEINRICHTUNG ZUS. 62501 £61.83 Add
038 62489-AF LAGERSCHALE AUßEN 62489 £42.99 Add
039 23723-AF SHAFT, BRUSH (30") AF-23723 £97.02 Add
040 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
041 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
042 43985-AF ASS'Y, WHT WHEEL W/10x2.5 TIRE 43985 N/A POA
043 23345-AF RUBBER STRIP AF-23345 £18.60 Add
044 43943-AF Handle Grip 43943 £8.46 Add
045 43080-AF CARRIAGE BOLT £3.49 Add
046 2674-32-AF Hub Cap 2674-32 N/A POA
047 23014-AF HITCH BRACKET £31.67 Add
048 23595-AF ARM, BAG MT LG 23595 £28.19 Add
049 23351-AF STRAP, BAG FRAME 32 IN AF-23351 £25.88 Add
050 43938-AF ROD, HOPPER SUPPORT £12.19 Add
051 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
052 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
053 43662-AF Lock Nut, 10-32 43662 £3.73 Add
054 44322-AF CHAIN SHIELD £34.26 Add
055 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
056 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
057 712-0291 LOCK-NUT £2.77 Add
058 23724-AF HOPPER BAG PIVOT ROD N/A POA
059 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
060 43082-AF HEX LOCK NUT £4.12 Add
061 1509-090 NO LONGER AVAILABLE N/A POA
062 714-0474 PIN (RED) £3.20 Add
063 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
064 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
065 23349-AF DRAW BAR 23349 £32.20 Add
066 23354-AF BAIL 23354 £11.94 Add
067 43001-AF HEX BOLT (RED) £3.49 Add
068 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
069 43082-AF HEX LOCK NUT £4.12 Add
070 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
071 43082-AF HEX LOCK NUT £4.12 Add
072 43070-AF Washer, 3/8" £3.91 Add
073 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
074 44060-AF RIVET 3/16 X 3/8 PLTD £3.28 Add
075 43343-AF PIN COTTER £4.20 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43737-AF Hopper Rope 43737 £5.99 Add
079 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
080 R19111116-AF WASHER £3.76 Add
081 62658-AF WHEEL HANGER ASS'Y.-R.H. £59.66 Add
082 62657-AF WHEEL HANGER ASS'Y.-L.H. £59.66 Add
083 44377-AF Hex Bolt, 3/8-24 x 1" 44377 £4.05 Add
084 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
085 43910-AF Washer, Flat #10 SAE 43910 £3.19 Add
086 44312-AF SPROCKET GEAR £27.06 Add
087 44006-AF WASHER £5.01 Add
088 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
089 43894-AF STOPPING RING 43894 £3.76 Add
090 44319-AF ROLLER CHAIN £10.82 Add
091 44320-AF WASHER .515 X .75 X .026 £3.70 Add
092 43659-AF PIN, SPRING 3/16x1 AF-43659 £3.48 Add
