FG318_3300

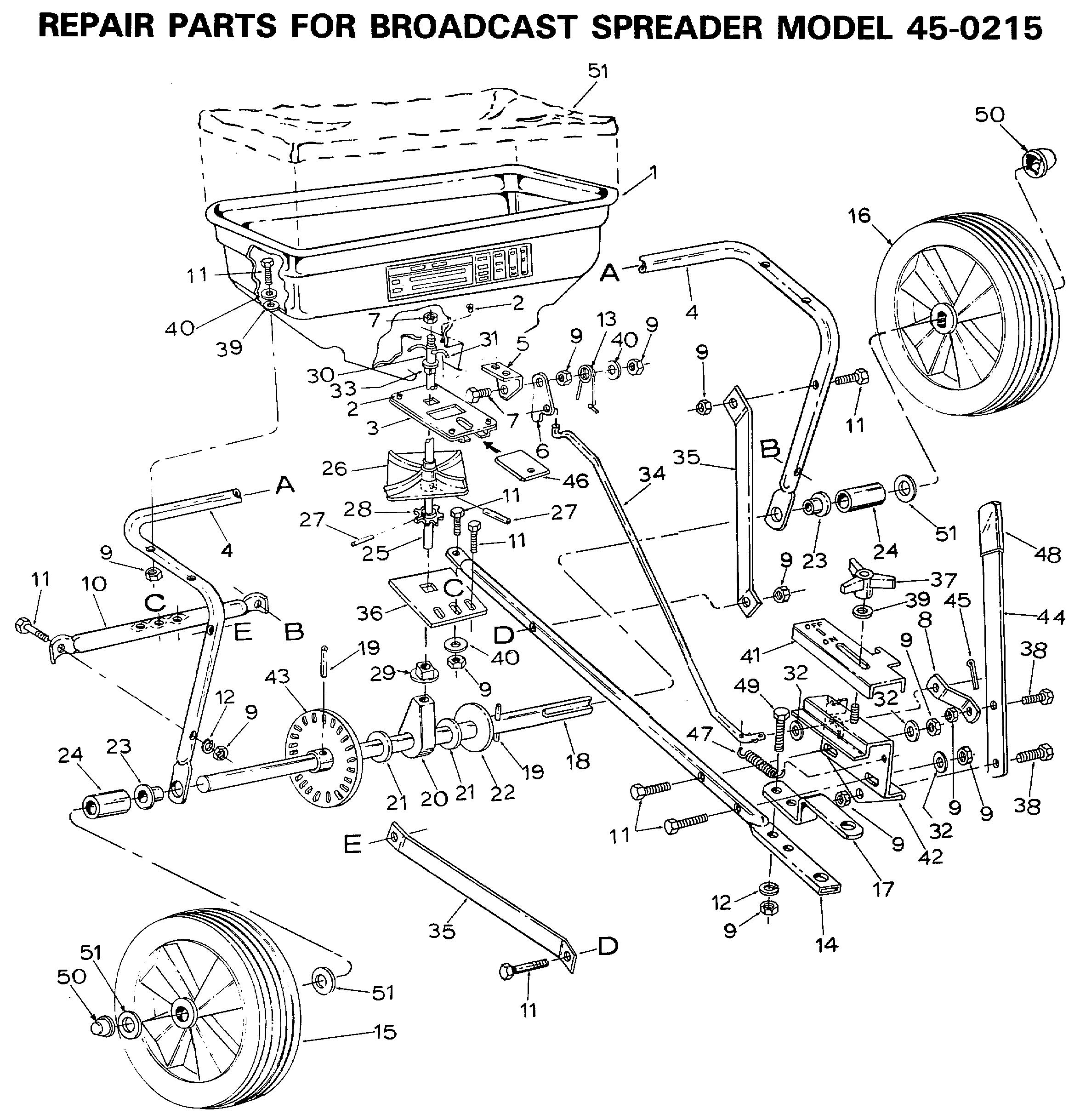

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_3300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 44624-AF Hopper 44624 £225.10 Add
002 43882-AF Rivet, Stainless 43882 £4.85 Add
003 62482-AF ASSY GUIDE CLOSURE £57.27 Add
004 44588-AF Tube, Frame 44588 £89.24 Add
005 23753-AF SLIDE GATE ANGLE BRACKET £3.62 Add
006 23758-AF SLIDE GATE BRACKET £3.87 Add
007 43012-AF BOLT £3.32 Add
008 23756-AF Flow Control Link 23756 £4.05 Add
009 712-0291 LOCK-NUT £2.77 Add
010 44591-AF Tube, Crossover 44591 £24.35 Add
011 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.58 Add
012 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
013 44566-AF SPRING TORSION £4.74 Add
014 44586-AF Tube, Hitch 44586 £37.34 Add
015 44631-AF WHEEL, ASS'Y. 12 X 1.75" £55.10 Add
016 44630-AF WHEEL, ASS'Y. 12 X 1.75" (DRIVE) £55.10 Add
017 23818-AF Bracket, Hitch £10.66 Add
018 23781-AF Shaft, Axle 23781 £20.67 Add
019 44665-AF Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665 £4.05 Add
020 44672-AF Bushing, Axle Shaft 44672 £18.96 Add
021 44137-AF Washer, Flat 1/2" I.D. 44137 £2.60 Add
022 R19171616-AF WASHER 17/32X1X16GA £3.76 Add
023 741-0248 Bearing, Flange £14.56 Add
024 44593-AF SPACER .75 O.D. X 1.75" LG. £5.06 Add
025 23524-AF SHAFT SPROCKET (OBSOLETE) (OBSOLETE) N/A POA
026 04367-AF SPREADER PLATE £33.08 Add
027 43850-AF ROLL PIN £6.78 Add
028 44468-AF SPROCKET 6T £6.85 Add
029 43852-AF LAGERBUCHSE AUS NYLON 43852 N/A POA
030 23766-AF SLEEVE AGITATOR (OBSOLETE) (OBSOLETE) N/A POA
031 43878-AF WIRE AGITATOR £14.86 Add
032 R19111116-AF WASHER £3.76 Add
033 44285-AF BUSHING DELRIN £5.63 Add
034 44469-AF Rod, Flow Control 44469 £28.51 Add
035 23525-AF Brace, Hitch 23525 £38.89 Add
036 23762-AF Shaft Support Plate 23762 £11.15 Add
037 43849-AF Knob, Plastic 1/4-20 Thd. 43849 £24.61 Add
038 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
039 1543-69-AF Washer, Nylon 1543-069 N/A POA
040 43088-AF FLAT WASHER £3.11 Add
041 23755-AF Gage, Flow Control 23755 £20.71 Add
042 23754-AF Bracket, Flow Control Mount 23754 £19.59 Add
043 62798-AF GEAR ASSY £98.33 Add
044 23757-AF SPRING ASSY 23757 £13.83 Add
045 44101-AF Cotter Pin 3/32" x 3/4" Lg.* 44101 £3.91 Add
046 23533-AF PLATE CLOSURE £15.33 Add
047 43000-AF SPRING EXTENSION £11.08 Add
048 43848-AF Grip, Flow Control Arm 43848 £5.99 Add
049 43661-AF HEX BOLT £3.11 Add
050 44663-AF CAP NUT £4.31 Add
051 R19171616-AF WASHER 17/32X1X16GA £3.76 Add
051 44619-AF OPTIONAL VINYL HOPPER COVER AF-44619 £49.11 Add
051 44662-AF OWNER'S MANUAL £8.75 Add
