FG318_3500

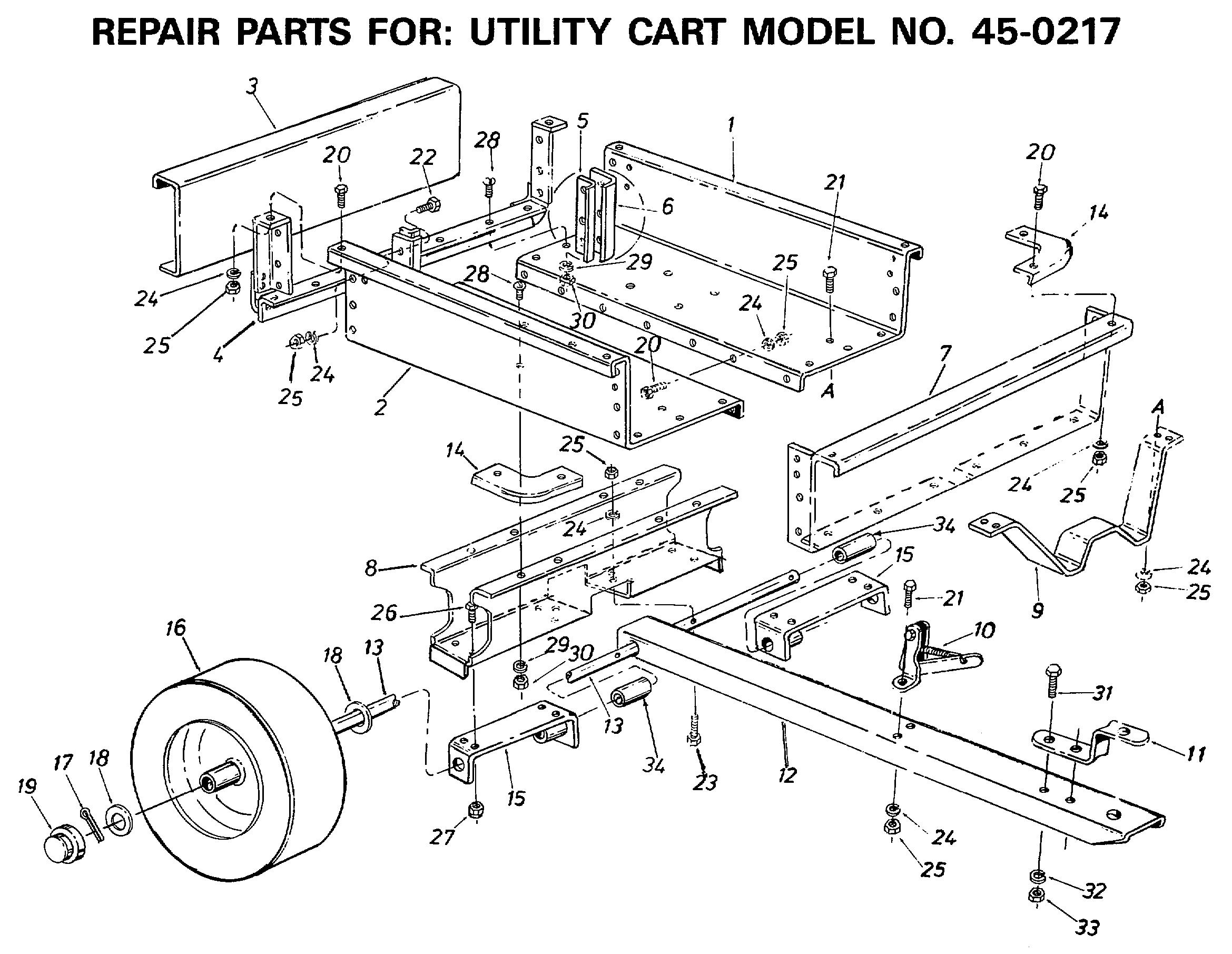

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_3500

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44677-AF OWNER'S MANUAL £8.75 Add
001 23517-AF CART BODY -- L.H. £194.25 Add
002 23518-AF CART BODY -- R.H. £194.25 Add
003 23504-AF Tailgate 23504 £127.46 Add
004 62457-AF Tailgate Reinforcement Bracket 62457 £103.07 Add
005 23549-AF GUIDE, TAILGATE -- INSIDE £13.08 Add
006 23548-AF Tailgate Guide 23548 £11.15 Add
007 23490-AF Front Panel 23490 £172.00 Add
008 23821-AF WHEEL SUPPORT £197.23 Add
009 23363-AF LATCH STAND BRACKET £66.44 Add
010 62455-AF ASS`Y, LATCH LOCK AF-62455 £53.63 Add
011 23014-AF HITCH BRACKET £31.67 Add
012 23481-AF DRAW BAR TONGUE £64.49 Add
013 23820-AF WHEEL AXLE 1" DIA. £94.21 Add
014 23484-AF Front Corner Cap 23484 £21.81 Add
015 62359-AF AXLE EXTENSION ASS'Y. £76.61 Add
016 43649-AF WHEEL ASS'Y. COMP.-20 X 10-8 £279.15 Add
017 43093-AF COTTER PIN £3.11 Add
018 43601-AF WASHER £8.99 Add
019 731-0484A HUB CAP £5.05 Add
020 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
021 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
022 43012-AF BOLT £3.32 Add
023 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
024 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
025 43178-AF Hex Nut, 1/4-20 Thread £3.37 Add
026 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
027 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
028 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
029 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
030 43083-AF HEX NUT £3.32 Add
031 43001-AF HEX BOLT (RED) £3.49 Add
032 736-0169 L. WASHER £2.89 Add
033 712-0798 HEX. NUT £7.61 Add
034 44678-AF Spacer (45-0351) 44678 £14.07 Add
