FG318_3700

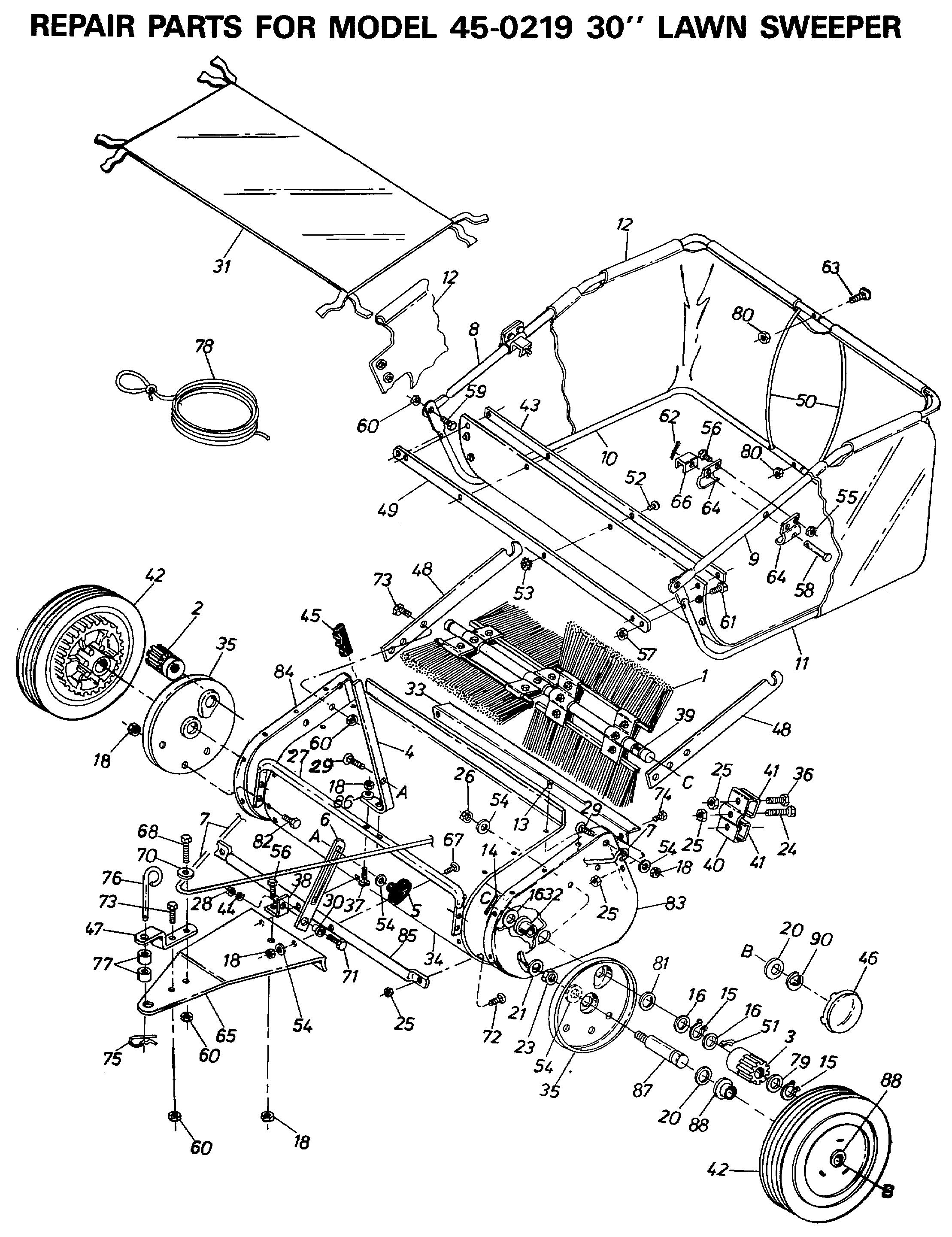

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_3700

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44948-AF OWNERS MANUAL £8.75 Add
001 43902-AF BRUSH £20.16 Add
002 43886-AF Gear, Pinion R.H. (not shown) 43886 £23.48 Add
003 43885-AF PINION LH 11TEETH £21.85 Add
004 23850-AF Handle, Height Adjustment 23850 £28.31 Add
005 43720-AF KNOB (RED) £7.83 Add
006 23851-AF STELLSCHIENE 23851 £11.94 Add
007 43979-AF STRAP:LIFT HANDLE SUPPORT 43979 £21.81 Add
008 44898-AF ROHR OBEN RECHTS 44898 £32.58 Add
009 44899-AF ROHR OBEN LINKS 44899 £29.80 Add
010 44900-AF ROHR UNTEN RECHTS 44900 £41.51 Add
011 44901-AF ROHR UNTEN LINKS 44901 £44.15 Add
012 44914-AF PANEL HANDLE 44914 £157.58 Add
013 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
014 43659-AF PIN, SPRING 3/16x1 AF-43659 £3.48 Add
015 AF-1650-21 RETAINING RING £2.61 Add
016 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
018 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
020 44125-AF Washer, Flat .62" x 1.00" 44125 £4.05 Add
021 736-0101 WASH:FLAT:.406 X 1.00 X .030 £12.63 Add
023 44684-AF Jam Nut, 3/8-24 Thread 44684 £4.05 Add
024 43661-AF HEX BOLT £3.11 Add
025 712-0291 LOCK-NUT £2.77 Add
026 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
027 44905-AF TUBE, HANDLE (SHORT) (PAINTED) 44905 £41.04 Add
028 43083-AF HEX NUT £3.32 Add
029 43080-AF CARRIAGE BOLT £3.49 Add
030 23400-AF SPACER £5.85 Add
031 44913-AF COVER 44913 £53.37 Add
032 44909-AF BRUSH SHAFT £6.85 Add
033 23887-AF Brace, Rear Support 23887 £22.12 Add
034 23847-AF HÜLLE 23847 £84.63 Add
035 25102-AF Dust Cover £13.50 Add
036 43012-AF BOLT £3.32 Add
037 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
038 23869-AF BRACKET, GATE SLIDE ANGLE 23869 £4.05 Add
039 23567-AF Brush Shaft 23567 £168.59 Add
040 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
041 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
042 44930-AF WHEEL ASSY 38" SWEEPER £70.41 Add
043 23345-AF RUBBER STRIP AF-23345 £18.60 Add
044 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
045 43812-AF OPERATOR MANUAL 43812 £8.75 Add
046 2674-32-AF Hub Cap 2674-32 N/A POA
047 23014-AF HITCH BRACKET £31.67 Add
048 23812-AF ARM, BAG MT LG 23812 £25.40 Add
049 23870-AF Strap, Bag Frame 23870 £19.19 Add
050 43926-AF HOPPER SUPPORT ROD £8.99 Add
051 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
052 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
053 43662-AF Lock Nut, 10-32 43662 £3.73 Add
054 43081-AF FLAT WASHER £3.49 Add
055 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
056 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
057 712-0291 LOCK-NUT £2.77 Add
058 43513-AF CLEVIS PIN (RED) £8.53 Add
059 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
060 43082-AF HEX LOCK NUT £4.12 Add
061 1509-090 NO LONGER AVAILABLE N/A POA
062 714-0474 PIN (RED) £3.20 Add
063 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
064 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
065 23868-AF TONGUE, HITCH 23868 £116.34 Add
066 23354-AF BAIL 23354 £11.94 Add
067 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.48 Add
068 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
070 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
071 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
072 44950-AF BOLT £3.62 Add
073 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
074 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
075 43343-AF PIN COTTER £4.20 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43737-AF Hopper Rope 43737 £5.99 Add
079 44006-AF WASHER £5.01 Add
080 712-0291 LOCK-NUT £2.77 Add
081 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
082 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £4.05 Add
083 23845-AF PANEL-LH SIDE CUB BEIGE 23845 £23.39 Add
084 23846-AF SIDE PANEL CART EXTENSION RH 23846 £55.92 Add
085 44902-AF HITCH TUBE N/A POA
086 44695-AF Washer, Bowed 44695 £4.05 Add
087 44598-AF Axle 44598 £11.94 Add
088 741-0249 BEARING £8.44 Add
090 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
