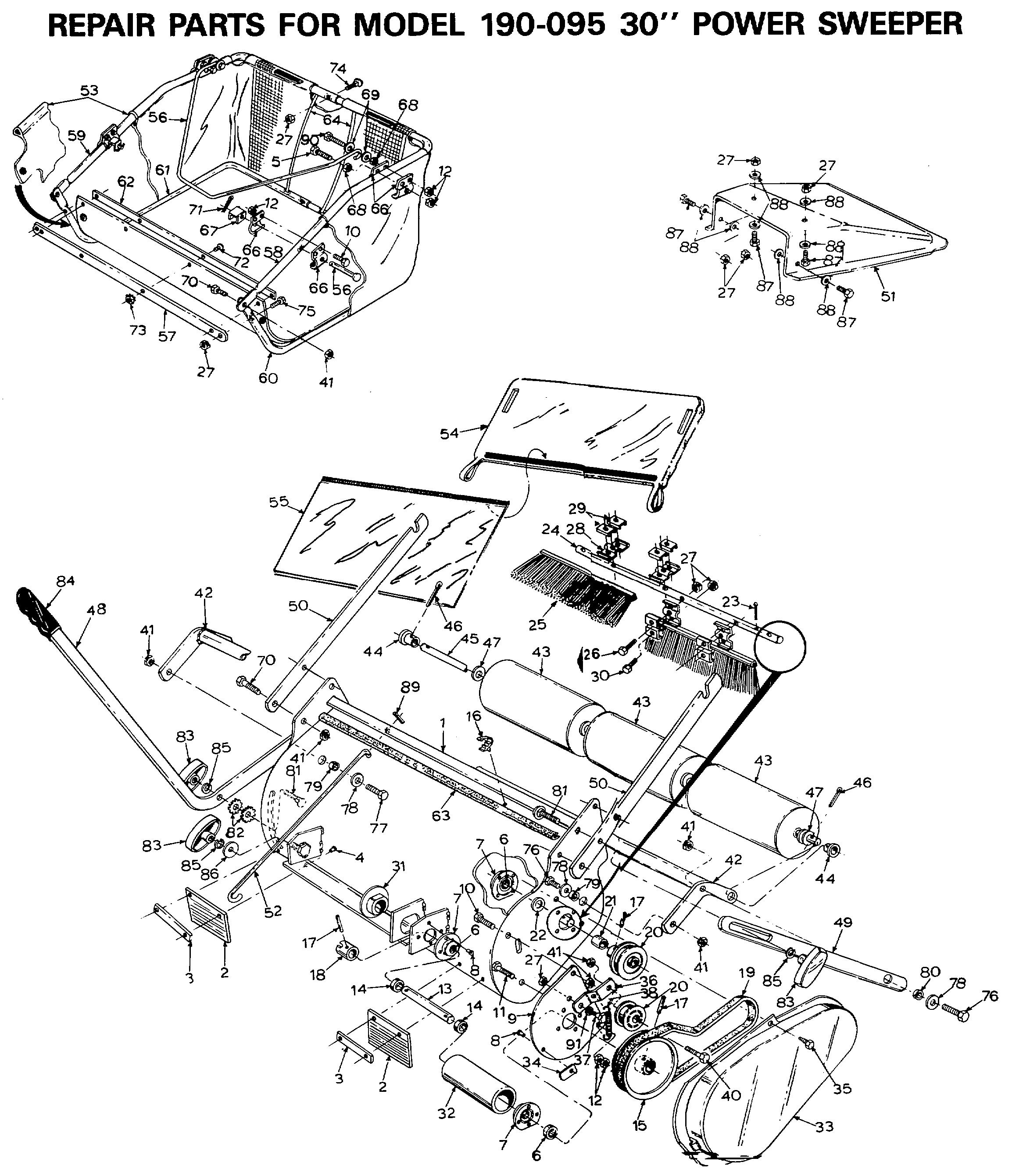

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
44722-AF
|
OWNER'S MANUAL
|
£6.20
|
Add
|
|
001
|
62818-AF
|
SWEEPER HOUSING ASSEMBLY
|
N/A
|
POA
|
|
002
|
44632-AF
|
SKIRT
|
£11.78
|
Add
|
|
003
|
23785-AF
|
SKIRT RETAINER
|
£7.41
|
Add
|
|
004
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
005
|
43085-AF
|
Bolt, Hex 5/16-18 x 1-1/2"
|
£4.15
|
Add
|
|
006
|
44232-AF
|
BALL BEARING
|
£35.66
|
Add
|
|
007
|
AF-1629-56
|
Retainer, Dust Cover 1629-56
|
£26.36
|
Add
|
|
008
|
44060-AF
|
RIVET 3/16 X 3/8 PLTD
|
£3.28
|
Add
|
|
009
|
23797-AF
|
BEARING EXTENSION BRACKET
|
N/A
|
POA
|
|
010
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
011
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
|
012
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
013
|
23798-AF
|
PTO SHAFT
|
£22.07
|
Add
|
|
014
|
750-0171
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
015
|
44648-AF
|
5" PULLEY
|
£37.41
|
Add
|
|
016
|
44721-AF
|
TRANSPORT ROD CLIP
|
£5.03
|
Add
|
|
017
|
44726-AF
|
SPRING PIN 1/4" X 1-1/4" LG.
|
£2.56
|
Add
|
|
018
|
23829-AF
|
COUPLER
|
N/A
|
POA
|
|
019
|
754-0265
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
020
|
44647-AF
|
2.5" PULLEY
|
£31.55
|
Add
|
|
021
|
750-0471
|
SPACER (PM), .63 X .77 X .385
|
£4.16
|
Add
|
|
022
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
023
|
43659-AF
|
PIN, SPRING 3/16x1 AF-43659
|
£3.48
|
Add
|
|
024
|
23796-AF
|
BRUSH SHAFT
|
N/A
|
POA
|
|
025
|
44633-AF
|
BRUSH, 5" X 15" LG. (OBSOLETE)
|
N/A
|
POA
|
|
026
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
027
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
028
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
029
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
030
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
031
|
44634-AF
|
SPECIAL FLANGED BEARING
|
£19.03
|
Add
|
|
032
|
44635-AF
|
SHAFT GUARD TUBE
|
£2.09
|
Add
|
|
033
|
44637-AF
|
BELT GUARD
|
N/A
|
POA
|
|
034
|
23765-AF
|
BELT GUARD RETAINER CLIP
|
N/A
|
POA
|
|
035
|
44731-AF
|
HEX HEAD SELF-TAP SCREW 1/4" X 1/2" LG.
|
£3.91
|
Add
|
|
036
|
23774-AF
|
IDLER ARM
|
£2.09
|
Add
|
|
037
|
738-0255
|
BOLT SHOULDER
|
£6.59
|
Add
|
|
038
|
732-0589
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
039
|
44650-AF
|
PLASTIC IDLER PULLEY
|
£19.16
|
Add
|
|
040
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
041
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
042
|
62819-AF
|
ROLLER BRACKET ASSEMBLY
|
N/A
|
POA
|
|
043
|
44636-AF
|
ROLLER
|
£80.65
|
Add
|
|
044
|
23803-AF
|
ROLLER MOUNT BUSHING
|
£20.37
|
Add
|
|
045
|
23804-AF
|
ROLLER SHAFT
|
£30.36
|
Add
|
|
046
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
047
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
048
|
23801-AF
|
HEIGHT ADJUSTMENT HANDLE
|
£61.99
|
Add
|
|
049
|
23802-AF
|
HEIGHT ADJUSTMENT STRAP
|
£13.87
|
Add
|
|
050
|
23812-AF
|
ARM, BAG MT LG 23812
|
£25.40
|
Add
|
|
051
|
44655-AF
|
DEFLECTOR
|
£52.24
|
Add
|
|
052
|
44675-AF
|
TRANSPORT ROD
|
£24.75
|
Add
|
|
053
|
44638-AF
|
HOPPER BAG
|
N/A
|
POA
|
|
054
|
44639-AF
|
UPPER WINDSCREEN
|
£49.71
|
Add
|
|
055
|
44640-AF
|
LOWER WINDSCREEN
|
N/A
|
POA
|
|
056
|
44646-AF
|
DUMP ROD
|
£36.26
|
Add
|
|
057
|
23584-AF
|
STRAP, HOPPER
|
£20.54
|
Add
|
|
058
|
44643-AF
|
UPPER HOPPER TUBE (LH)
|
£27.59
|
Add
|
|
059
|
44642-AF
|
UPPER HOPPER TUBE (RH)
|
£29.59
|
Add
|
|
060
|
44645-AF
|
LOWER HOPPER TUBE (LH)
|
£41.31
|
Add
|
|
061
|
44644-AF
|
LOWER HOPPER TUBE (RH)
|
£44.34
|
Add
|
|
062
|
23585-AF
|
RETAINER, HOPPER STRAP
|
£21.20
|
Add
|
|
063
|
44641-AF
|
WINDSCREEN MOLDING
|
N/A
|
POA
|
|
064
|
43926-AF
|
HOPPER SUPPORT ROD
|
£8.99
|
Add
|
|
065
|
43513-AF
|
CLEVIS PIN (RED)
|
£8.53
|
Add
|
|
066
|
23331-AF
|
THROTTLE CABLE CLIP 23331
|
£12.01
|
Add
|
|
067
|
23354-AF
|
BAIL 23354
|
£11.94
|
Add
|
|
068
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
069
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
070
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
071
|
142-AF
|
COTTER PIN(1/8 X 5/8)
|
N/A
|
POA
|
|
072
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
073
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
074
|
43978-AF
|
Bolt, Curved 1.4-20 x 1" 43978
|
£4.05
|
Add
|
|
075
|
43752-AF
|
BOLT, STL. PAN HD. 1/4-20 X 1-1/4" LG.
|
£3.28
|
Add
|
|
076
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
077
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
078
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
079
|
750-0437
|
bush
|
£15.67
|
Add
|
|
080
|
23625-AF
|
Spacer, 1/4" Long 23625
|
£10.35
|
Add
|
|
081
|
44326-AF
|
BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326
|
£3.49
|
Add
|
|
082
|
44732-AF
|
TOOTH LOCK WASHER
|
£3.49
|
Add
|
|
083
|
43720-AF
|
KNOB (RED)
|
£7.83
|
Add
|
|
084
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
085
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
086
|
736-0227
|
WASH:FLAT:.390x1.500x.134
|
£10.28
|
Add
|
|
087
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
088
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
089
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
090
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
091
|
736-0286
|
WASHER - SPECIAL 1552-008
|
£3.59
|
Add
|
