Parts list

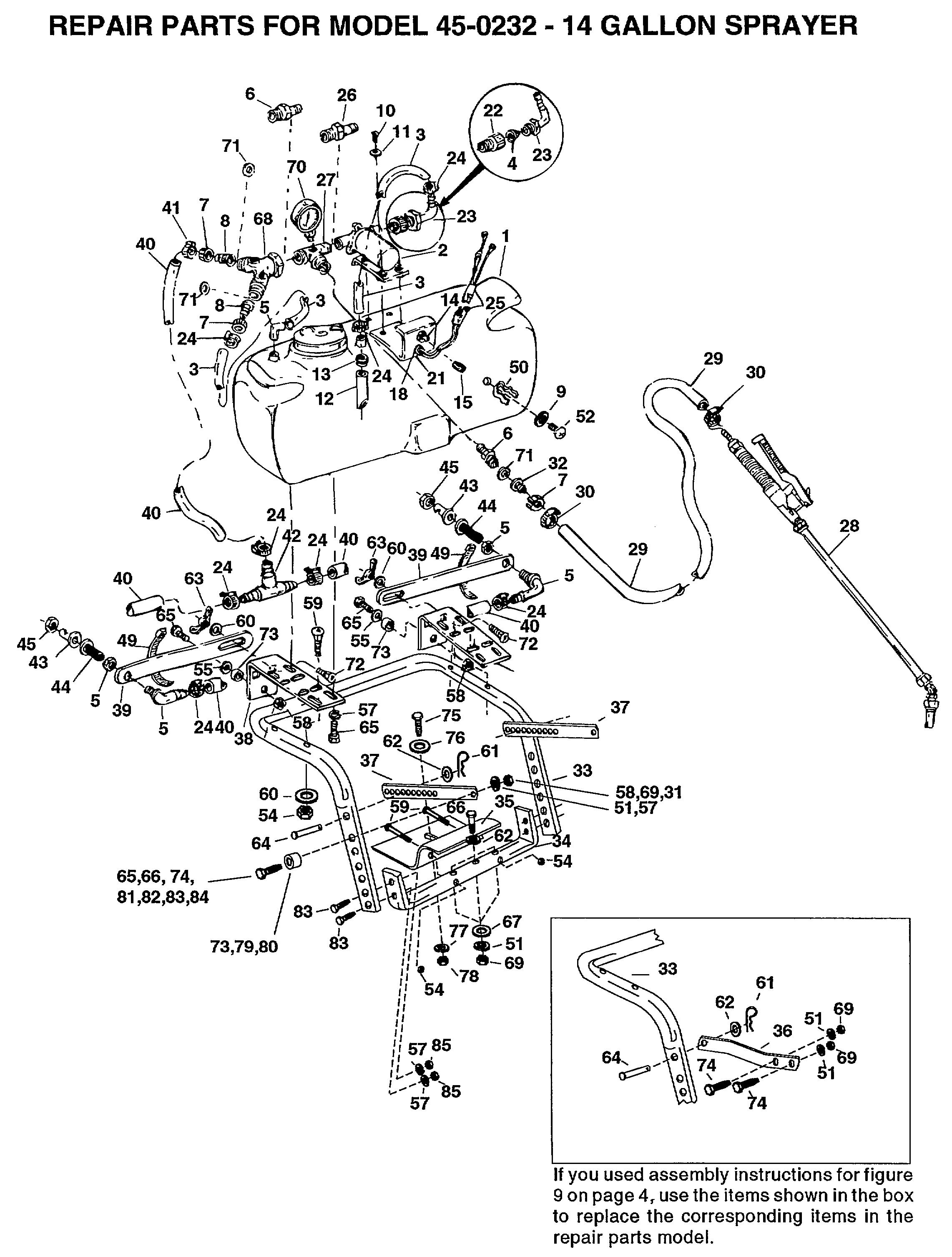

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
45014-AF
|
TANK (14 GAL.)
|
£293.07
|
Add
|
|
002
|
45015-AF
|
PUMP AND MOTOR
|
£421.85
|
Add
|
|
003
|
45022-AF
|
HOSE, 1/2 ID (14" LG.)
|
£10.89
|
Add
|
|
004
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
005
|
45030-AF
|
ELBOW PLASTIC
|
£10.89
|
Add
|
|
006
|
45031-AF
|
ADAPTOR (RED)
|
£4.58
|
Add
|
|
007
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
008
|
45033-AF
|
HOSE BARB 1/2"
|
£3.62
|
Add
|
|
009
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
010
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
011
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
012
|
45035-AF
|
SUCTION TUBE, PLASTIC 13" LG.
|
£23.67
|
Add
|
|
013
|
45036-AF
|
GROMMET, 1/2" ID RUBBER
|
£6.20
|
Add
|
|
014
|
45084-AF
|
Switch, On - Off 45084
|
£25.40
|
Add
|
|
015
|
45082-AF
|
Boot, Rubber Switch 45082
|
£13.83
|
Add
|
|
016
|
45080-AF
|
PLATE, ON - OFF SWITCH
|
£4.05
|
Add
|
|
017
|
45048-AF
|
Nut, Hex 15/32-32 Thd. 45048
|
£4.05
|
Add
|
|
018
|
45087-AF
|
Bushing, Strain Relief 45087
|
£4.05
|
Add
|
|
019
|
45085-AF
|
Terminal, .25 Male Tab (not shown) 45085
|
£5.68
|
Add
|
|
020
|
45086-AF
|
Terminal, .25 Female Tab (not shown) 45086
|
£6.20
|
Add
|
|
021
|
23889-AF
|
Bracket, Switch Mounting 23889
|
£19.19
|
Add
|
|
022
|
45081-AF
|
SWIVEL FITTING, 3/8 NPT X 3/4 GH
|
£8.93
|
Add
|
|
023
|
45083-AF
|
ELBOW, 3/4 GH X 1/2 HOSE BARB
|
£4.83
|
Add
|
|
024
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
025
|
45018-AF
|
CONNECTOR W/WIRE
|
£71.79
|
Add
|
|
026
|
45049-AF
|
NIPPLE
|
£4.74
|
Add
|
|
027
|
45050-AF
|
TEE,1/2 x 1/2 x 1/2 (1/4"PORT) AF-45050
|
£32.90
|
Add
|
|
028
|
45016-AF
|
ASSY SPRAY GUN 45016
|
£132.03
|
Add
|
|
029
|
45023-AF
|
HOSE, 3/8 ID (12'6" LG)
|
£68.26
|
Add
|
|
030
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
|
031
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
032
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
033
|
45193-AF
|
TUBE, FRAME
|
£38.97
|
Add
|
|
034
|
45194-AF
|
TUBE, CROSSOVER
|
£22.07
|
Add
|
|
035
|
23932-AF
|
BRACKET, HITCH
|
£11.59
|
Add
|
|
036
|
23933-AF
|
BAR, HITCH
|
£10.25
|
Add
|
|
037
|
23931-AF
|
STRAP, MOUNT ADJUST
|
£7.41
|
Add
|
|
038
|
23910-AF
|
SPRING ASSY 23890
|
£13.05
|
Add
|
|
039
|
23911-AF
|
BOOM BAR
|
£9.58
|
Add
|
|
040
|
45021-AF
|
HOSE
|
£12.61
|
Add
|
|
041
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
042
|
45027-AF
|
T-STÜCK PLASTIK 45027
|
N/A
|
POA
|
|
043
|
45028-AF
|
NOZZLE FLOODJET
|
£8.19
|
Add
|
|
044
|
45029-AF
|
STRAINER SCREEN
|
£11.35
|
Add
|
|
045
|
45037-AF
|
NUT
|
£5.96
|
Add
|
|
046
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
047
|
45033-AF
|
HOSE BARB 1/2"
|
£3.62
|
Add
|
|
048
|
45030-AF
|
ELBOW PLASTIC
|
£10.89
|
Add
|
|
049
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
050
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
051
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
052
|
45040-AF
|
BOLT
|
£3.62
|
Add
|
|
053
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
054
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
055
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
056
|
43054-AF
|
Bolt, Hex 3/8-16 x 2" Lg. * 43054
|
£5.79
|
Add
|
|
057
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
058
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
059
|
45039-AF
|
BOLT, CARR 5/16-18x2" LG AF-45039
|
£4.05
|
Add
|
|
060
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
061
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
062
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
063
|
43193-AF
|
WING NUT 43193
|
£5.79
|
Add
|
|
064
|
43023-AF
|
CLEVIS PIN 092.34.115
|
£12.69
|
Add
|
|
065
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
066
|
43432-AF
|
Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432
|
£4.05
|
Add
|
|
067
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
068
|
45017-AF
|
Y VALVE
|
£30.93
|
Add
|
|
069
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
|
070
|
45071-AF
|
Gauge, Pressure 2" 100 PSI 45071
|
£58.88
|
Add
|
|
071
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
|
072
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
073
|
23625-AF
|
Spacer, 1/4" Long 23625
|
£10.35
|
Add
|
|
074
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
075
|
43020-AF
|
BOLT 1/2-13 X 1-1/2 HEX HEAD
|
£7.06
|
Add
|
|
076
|
R19172410-AF
|
WASHER-FLAT AF-R19172410
|
N/A
|
POA
|
|
077
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
078
|
712-0116
|
HEX NUT
|
£3.96
|
Add
|
|
079
|
23137-AF
|
BOSS
|
£3.30
|
Add
|
|
080
|
23228-AF
|
SPACER BUSHING
|
£18.75
|
Add
|
|
081
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
082
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
083
|
43085-AF
|
Bolt, Hex 5/16-18 x 1-1/2"
|
£4.15
|
Add
|
|
084
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
|
085
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
086
|
46009-AF
|
OWNER'S MANUAL (45-0232)
|
£5.84
|
Add
|
