FG320_0200

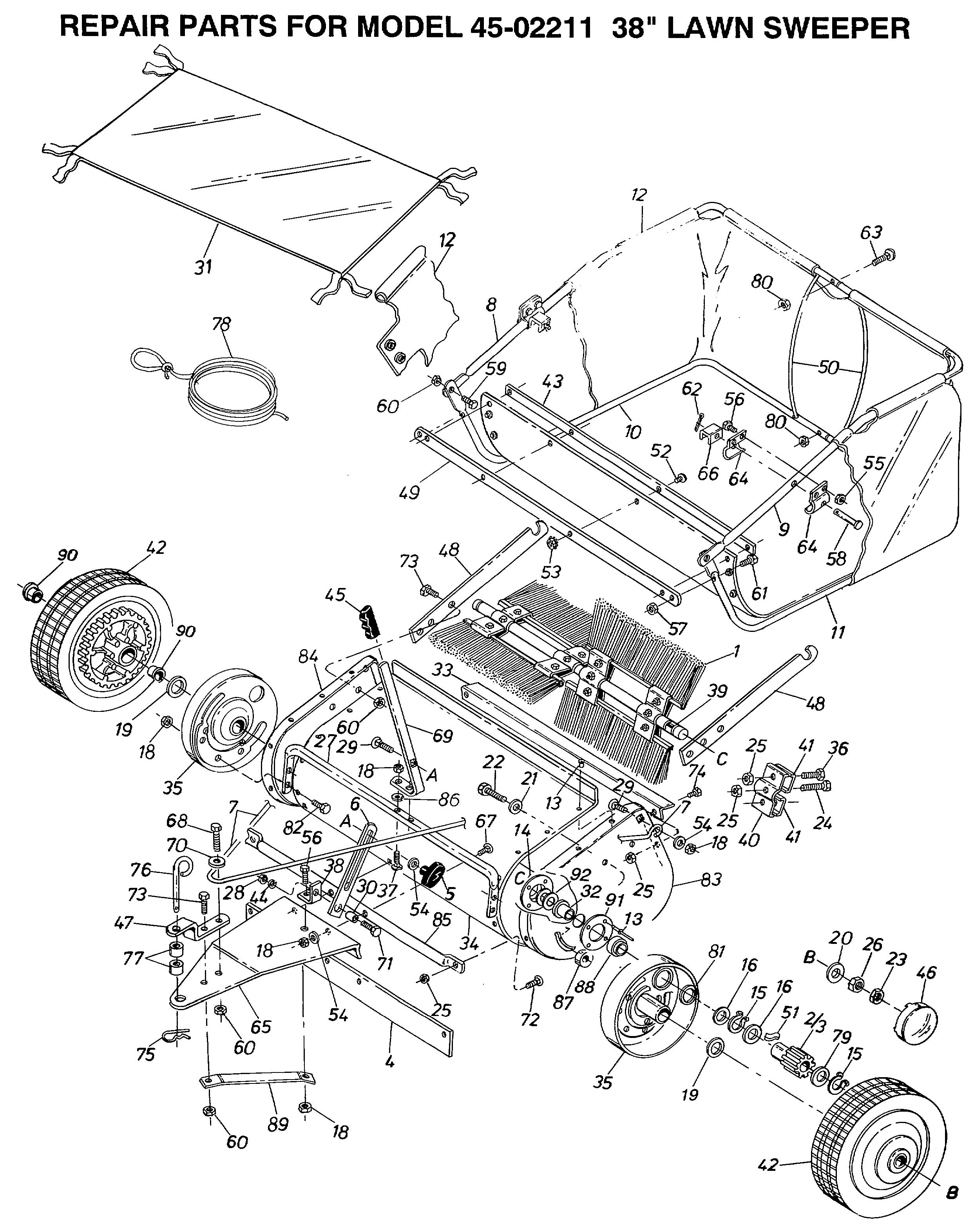

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG320_0200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
46221-AF OWNERS MANUAL (OBSOLETE) N/A POA
001 43905-AF BRUSH £27.85 Add
002 2692-6-AF DRIVE PINION R.H. AF-2692-6 £25.10 Add
003 2692-7-AF DRIVE PINION LH AF-2692-7 £21.85 Add
004 44960-AF RUBBER PADDLE 44960 £25.88 Add
005 43720-AF KNOB (RED) £7.83 Add
006 23851-AF STELLSCHIENE 23851 £11.94 Add
007 43958-AF BRACE-VAR SP 43958 £22.35 Add
008 43974-AF ROD,TIE 43974 £48.92 Add
009 43975-AF ROD,TIE 43975 £46.50 Add
010 43976-AF ROD,TIE 43976 £47.89 Add
011 43977-AF TUBE 43977 £45.47 Add
012 43651-AF ASSY HOPPER BAG 43651 £229.80 Add
013 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
014 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
015 AF-1650-21 RETAINING RING £2.61 Add
016 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
017 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
018 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
019 44008-AF WASHER £3.24 Add
020 0141-000 WASHER £3.39 Add
021 43070-AF Washer, 3/8" £3.91 Add
022 44961-AF Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961 £4.31 Add
023 44684-AF Jam Nut, 3/8-24 Thread 44684 £4.05 Add
024 43661-AF HEX BOLT £3.11 Add
025 712-0291 LOCK-NUT £2.77 Add
026 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
027 44907-AF JUSTIERGESTÄNGE 44907 £65.96 Add
028 43083-AF HEX NUT £3.32 Add
029 43080-AF CARRIAGE BOLT £3.49 Add
030 23400-AF SPACER £5.85 Add
031 43687-AF BAG WIND SHIELD 38 IN AF-43687 £30.39 Add
032 44910-AF BUSHING BRUSH SHAFT (RED) £8.31 Add
033 23854-AF Brace, Rear Support 23854 £22.10 Add
034 23849-AF HÜLLE 23849 £64.00 Add
035 63027-AF ASS`Y, DUST COVER 63027 £73.32 Add
036 43012-AF BOLT £3.32 Add
037 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
038 23869-AF BRACKET, GATE SLIDE ANGLE 23869 £4.05 Add
039 23852-AF SHAFT 23852 £97.61 Add
040 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
041 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
042 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
043 23343-AF PLATE-SHAVE 23343 £19.62 Add
044 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
045 43943-AF Handle Grip 43943 £8.46 Add
046 2674-32-AF Hub Cap 2674-32 N/A POA
047 23014-AF HITCH BRACKET £31.67 Add
048 23812-AF ARM, BAG MT LG 23812 £25.40 Add
049 23352-AF Strap, Bag Frame 23352 £28.38 Add
050 43926-AF HOPPER SUPPORT ROD £8.99 Add
051 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
052 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
053 43662-AF Lock Nut, 10-32 43662 £3.73 Add
054 43081-AF FLAT WASHER £3.49 Add
055 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
056 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
057 712-0291 LOCK-NUT £2.77 Add
058 43513-AF CLEVIS PIN (RED) £8.53 Add
059 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
060 43082-AF HEX LOCK NUT £4.12 Add
061 1509-090 NO LONGER AVAILABLE N/A POA
062 714-0474 PIN (RED) £3.20 Add
063 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
064 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
065 23868-AF TONGUE, HITCH 23868 £116.34 Add
066 23354-AF BAIL 23354 £11.94 Add
067 44215-AF Bolt, Carriage 5/16-18 x 1-3/4" 44215 £3.48 Add
068 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
069 23850-AF Handle, Height Adjustment 23850 £28.31 Add
070 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
071 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
072 44950-AF BOLT £3.62 Add
073 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
074 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
075 43343-AF PIN COTTER £4.20 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43737-AF Hopper Rope 43737 £5.99 Add
079 44006-AF WASHER £5.01 Add
080 712-0291 LOCK-NUT £2.77 Add
081 43601-AF WASHER £8.99 Add
082 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £4.05 Add
083 23845-AF PANEL-LH SIDE CUB BEIGE 23845 £23.39 Add
084 23846-AF SIDE PANEL CART EXTENSION RH 23846 £55.92 Add
085 44904-AF STRAP:LIFT HANDLE SUPPORT 44904 £36.59 Add
086 44695-AF Washer, Bowed 44695 £4.05 Add
087 44911-AF SPACER £4.12 Add
088 46219-AF SPACER £11.10 Add
089 23890-AF TONGUE BRACKET N/A POA
090 45088-AF WHEEL BEARING £12.03 Add
091 23336-AF Washer, Special 23336 £4.88 Add
092 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.87 Add
