Parts list

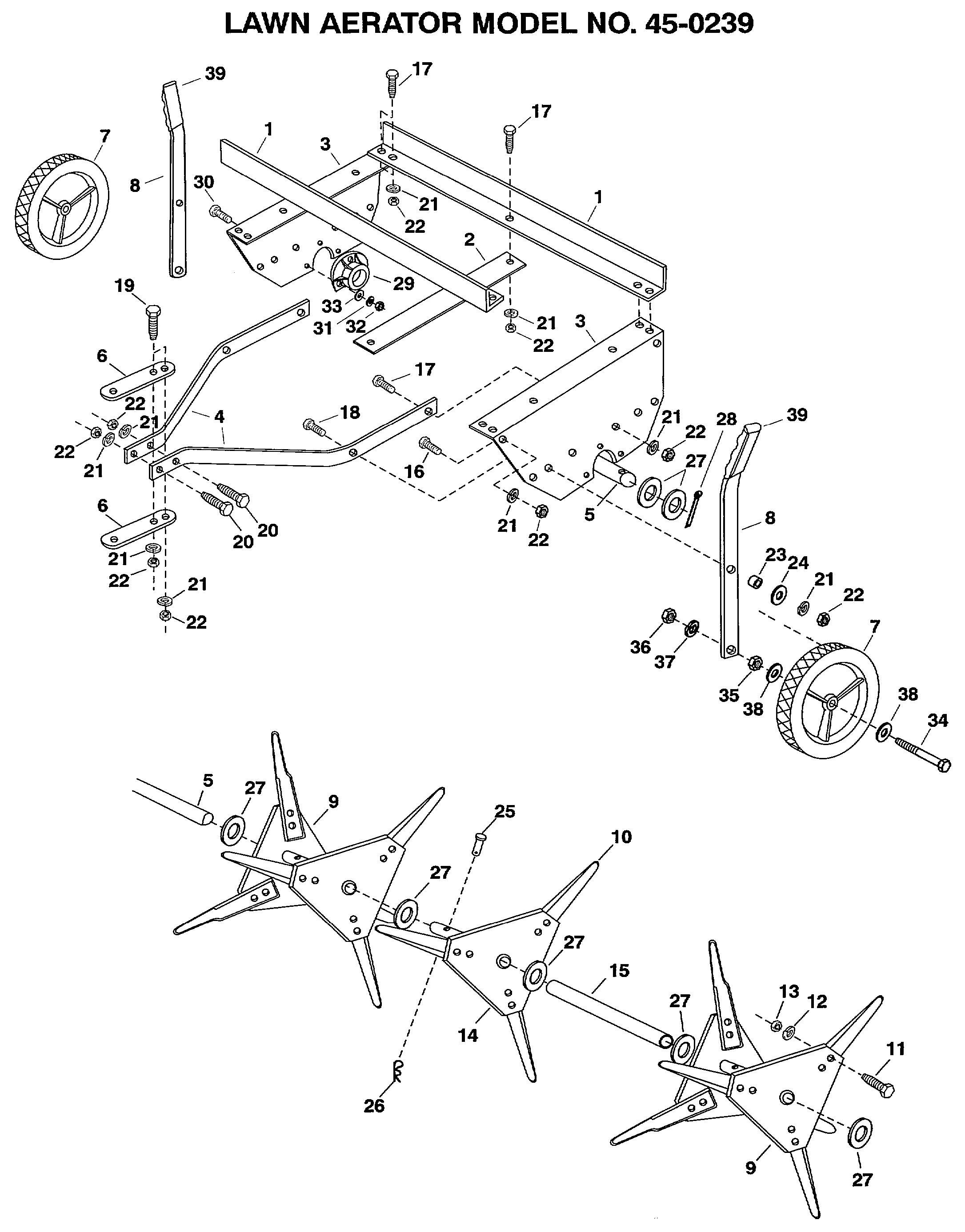

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46255-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
24031-AF
|
FRAME ANGLE
|
N/A
|
POA
|
|
002
|
24037-AF
|
CENTER BRACE
|
N/A
|
POA
|
|
003
|
23494-AF
|
BRACKET, FRAME SIDE
|
£74.73
|
Add
|
|
004
|
24032-AF
|
HITCH MOUNT YOKE
|
N/A
|
POA
|
|
005
|
24033-AF
|
SHAFT
|
N/A
|
POA
|
|
006
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
|
007
|
46254-AF
|
WHEEL (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
008
|
24034-AF
|
TRANSPORT BAR
|
N/A
|
POA
|
|
009
|
62096-AF
|
Spool 092.34.112
|
£209.55
|
Add
|
|
010
|
23084-AF
|
MESSERFLÜGEL 23084
|
£12.88
|
Add
|
|
011
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
014
|
63044-AF
|
SPOOL ASSEMBLY (SINGLE)
|
N/A
|
POA
|
|
015
|
24035-AF
|
SPACER TUBE
|
N/A
|
POA
|
|
016
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
017
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
018
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
019
|
43432-AF
|
Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432
|
£4.05
|
Add
|
|
020
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
021
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
022
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
023
|
23519-AF
|
SLEEVE 092.34.133
|
£11.76
|
Add
|
|
024
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
025
|
43023-AF
|
CLEVIS PIN 092.34.115
|
£12.69
|
Add
|
|
026
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
027
|
43601-AF
|
WASHER
|
£8.99
|
Add
|
|
028
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
029
|
46069-AF
|
BEARING 092.34.163
|
N/A
|
POA
|
|
030
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
031
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
032
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
033
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
034
|
46286-AF
|
HEX BOLT, 1/2-13 X 3" LG.
|
N/A
|
POA
|
|
035
|
712-0206
|
NUT
|
£3.42
|
Add
|
|
036
|
43019-AF
|
Hex Jam Nut, 1/2-13 Thd. 43019
|
£4.58
|
Add
|
|
037
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
038
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
039
|
44482-AF
|
Grip, Handle 44482
|
£7.23
|
Add
|
