Parts list

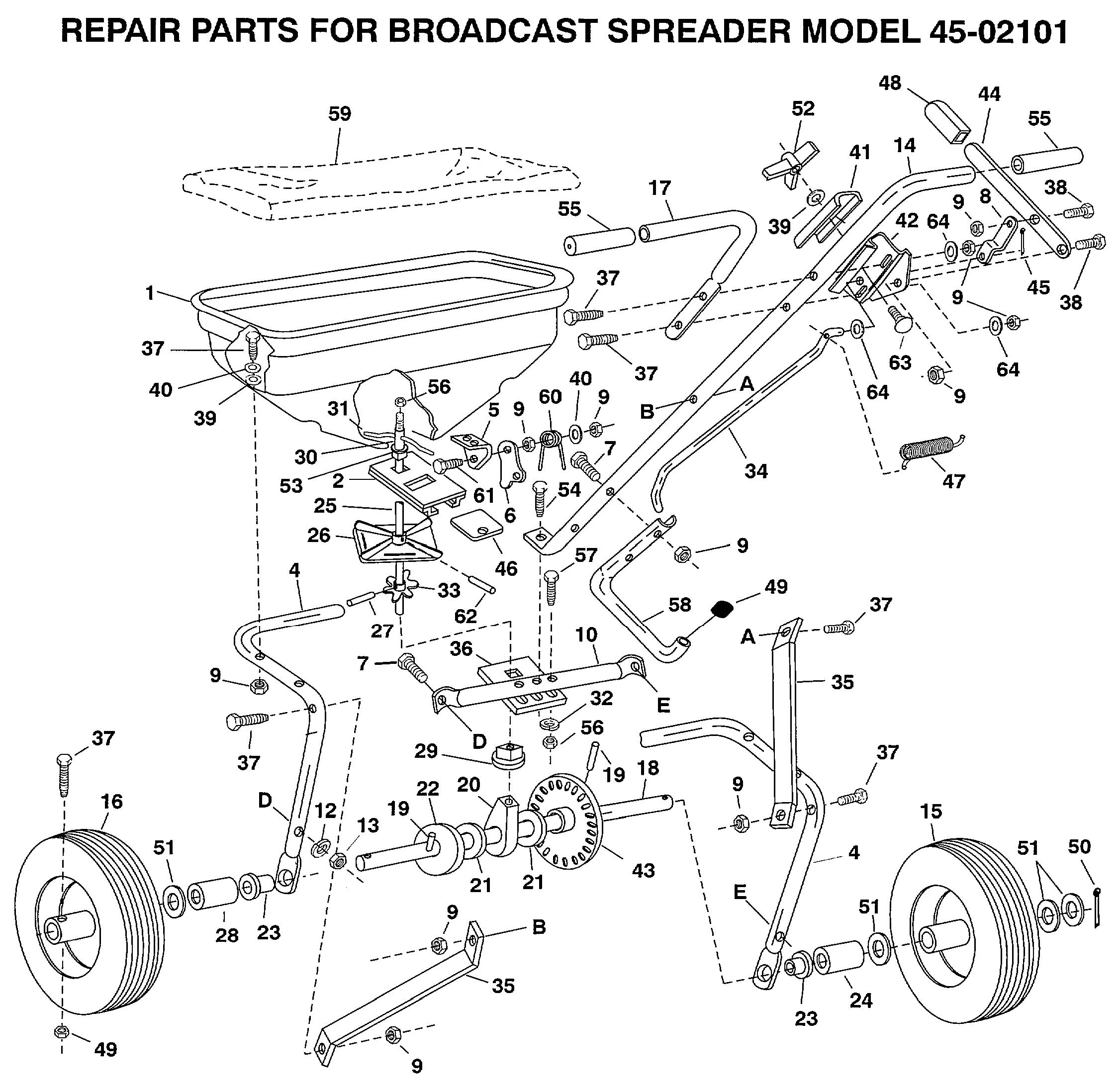

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46508-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44466-AF
|
Hopper
|
£247.14
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44462-AF
|
HANDLE BARS AF-44462
|
£116.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
008
|
23756-AF
|
Flow Control Link 23756
|
£4.05
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
43808-AF
|
Tube, Crossover 43808
|
£57.98
|
Add
|
|
011
|
43084-AF
|
BOLT
|
£2.56
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
014
|
44463-AF
|
tube 44463
|
£46.50
|
Add
|
|
015
|
44456-AF
|
WHEEL ASSY (OBSOLETE)
|
N/A
|
POA
|
|
016
|
40939-AF
|
USE 734-1513B 44457
|
N/A
|
POA
|
|
017
|
44464-AF
|
TUBE, HANDLE (SHORT) (PAINTED) 44464
|
£21.92
|
Add
|
|
018
|
23752-AF
|
SHAFT, AXLE
|
£86.60
|
Add
|
|
019
|
43851-AF
|
ROLL PIN
|
£13.84
|
Add
|
|
020
|
43871-AF
|
Bushing, Axle Shaft 43871
|
£22.95
|
Add
|
|
021
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
022
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
|
023
|
44798-AF
|
BEARING FLANGE
|
£13.52
|
Add
|
|
024
|
44494-AF
|
Spacer, 1.33" Long 44494
|
£4.85
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44500-AF
|
SPACER, 1" O.D. X 1" LG.
|
£4.49
|
Add
|
|
029
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
033
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
034
|
44514-AF
|
Rod, Flow Control 44514
|
£26.81
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23762-AF
|
Shaft Support Plate 23762
|
£11.15
|
Add
|
|
037
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
038
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
23755-AF
|
Gage, Flow Control 23755
|
£20.71
|
Add
|
|
042
|
23754-AF
|
Bracket, Flow Control Mount 23754
|
£19.59
|
Add
|
|
043
|
62474-AF
|
ASSY GEAR
|
£87.01
|
Add
|
|
044
|
23759-AF
|
Flow Control Arm 23759
|
£10.63
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
43000-AF
|
SPRING EXTENSION
|
£11.08
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
44481-AF
|
Cap, Vinyl 44481
|
£4.05
|
Add
|
|
050
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
051
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
052
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
053
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
054
|
43054-AF
|
Bolt, Hex 3/8-16 x 2" Lg. * 43054
|
£5.79
|
Add
|
|
055
|
44482-AF
|
Grip, Handle 44482
|
£7.23
|
Add
|
|
056
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
057
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
|
058
|
44465-AF
|
TUBE, LEG STAND
|
£32.90
|
Add
|
|
059
|
43962
|
COVER, VINYL HOPPER
|
£109.92
|
Add
|
|
060
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
061
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
062
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
063
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
064
|
R191111116
|
WASHER, FLAT 5/16"
|
N/A
|
POA
|
