FG321_1200

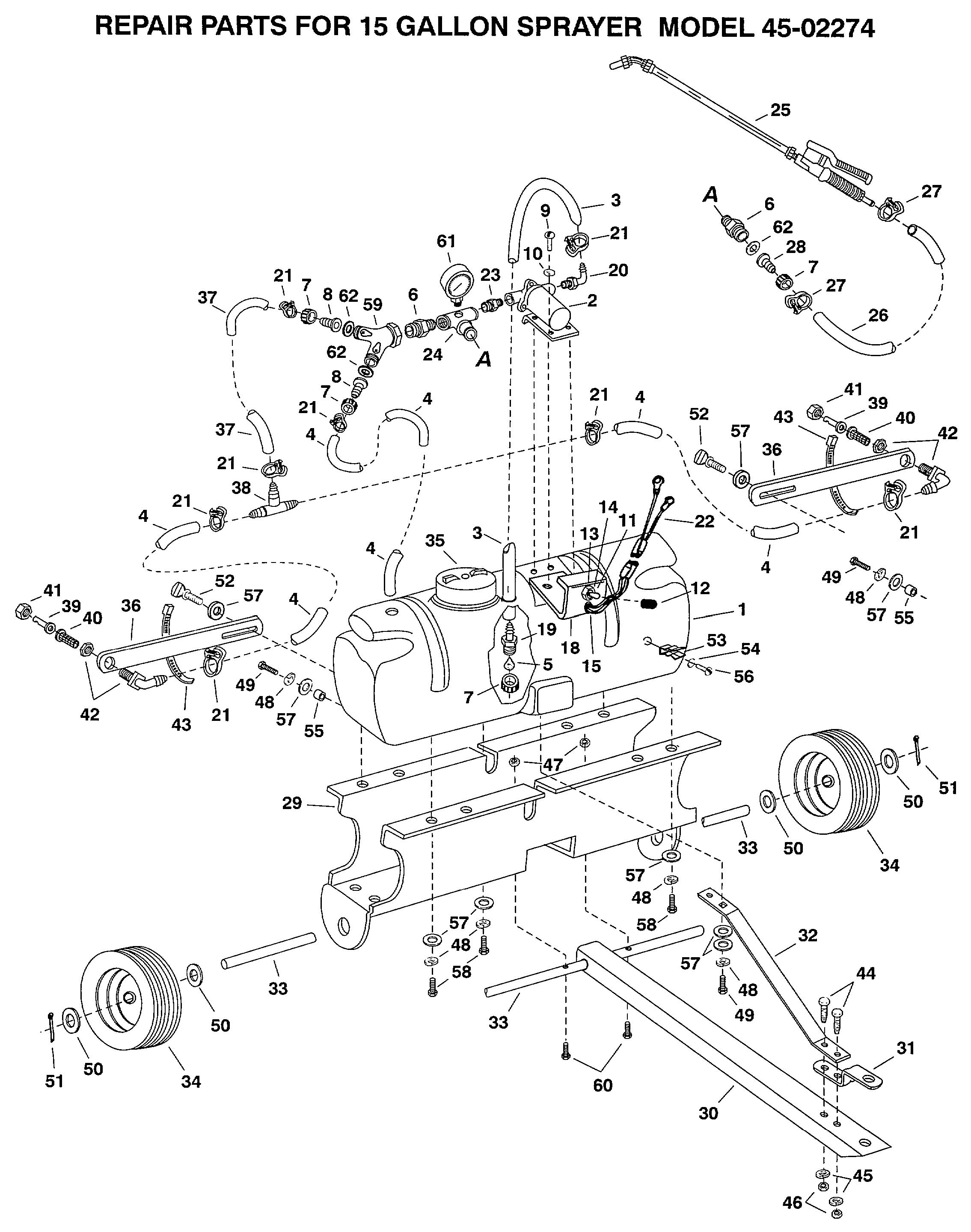

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG321_1200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
46527-AF OWNERS MANUAL N/A POA
001 46478-AF TANK (15 GAL.) £256.60 Add
002 45015-AF PUMP AND MOTOR £421.85 Add
003 46278-AF HOSE £15.33 Add
004 45021-AF HOSE £12.61 Add
005 45024-AF CAP STRAINER £4.12 Add
006 45031-AF ADAPTOR (RED) £4.58 Add
007 45032-AF NUT SWIVEL £3.87 Add
008 45033-AF HOSE BARB 1/2" £3.62 Add
009 45069-AF Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069 £4.05 Add
010 43910-AF Washer, Flat #10 SAE 43910 £3.19 Add
011 45084-AF Switch, On - Off 45084 £25.40 Add
012 45082-AF Boot, Rubber Switch 45082 £13.83 Add
013 45080-AF PLATE, ON - OFF SWITCH £4.05 Add
014 45048-AF Nut, Hex 15/32-32 Thd. 45048 £4.05 Add
015 45087-AF Bushing, Strain Relief 45087 £4.05 Add
016 45085-AF Terminal, .25 Male Tab (not shown) 45085 £5.68 Add
017 45086-AF Terminal, .25 Female Tab (not shown) 45086 £6.20 Add
018 23889-AF Bracket, Switch Mounting 23889 £19.19 Add
019 46276-AF Adapter, 3/4" GH x 1/2" Barb 46276 £5.68 Add
020 46277-AF Elbow, 3/8 NPT x 1/2" Barb 46277 £5.79 Add
021 45025-AF CLAMP £5.45 Add
022 45018-AF CONNECTOR W/WIRE £71.79 Add
023 45049-AF NIPPLE £4.74 Add
024 45050-AF TEE,1/2 x 1/2 x 1/2 (1/4"PORT) AF-45050 £32.90 Add
025 45016-AF ASSY SPRAY GUN 45016 £132.03 Add
026 45023-AF HOSE, 3/8 ID (12'6" LG) £68.26 Add
027 45026-AF CLAMP (RED) £5.85 Add
028 45034-AF Hose Barb, 3/8" 45034 £4.05 Add
029 23506-AF SUPPORT-AXLE-FR 23506 £131.29 Add
030 24040-AF BODY 24040 £55.91 Add
031 23014-AF HITCH BRACKET £31.67 Add
032 24041-AF ROD PARK BRAKE RETAINING 24041 £19.85 Add
033 23026-AF Axle, 3/4" 23026 £104.98 Add
034 44456-AF WHEEL ASSY (OBSOLETE) N/A POA
035 46700-AF LID FOR SPRAYERS £37.30 Add
036 24122-AF BOOM BAR £25.27 Add
037 45022-AF HOSE, 1/2 ID (14" LG.) £10.89 Add
038 45027-AF T-STÜCK PLASTIK 45027 N/A POA
039 45028-AF NOZZLE FLOODJET £8.19 Add
040 45029-AF STRAINER SCREEN £11.35 Add
041 45037-AF NUT £5.96 Add
042 45030-AF ELBOW PLASTIC £10.89 Add
043 725-0157 NO LONGER AVAILABLE N/A POA
044 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
045 736-0169 L. WASHER £2.89 Add
046 43082-AF HEX LOCK NUT £4.12 Add
047 712-0291 LOCK-NUT £2.77 Add
048 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
049 43063-AF BOLT £4.12 Add
050 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.26 Add
051 43093-AF COTTER PIN £3.11 Add
052 46528-AF Bolt 46528 £6.99 Add
053 45180-AF Clip (Small), Spray Gun 45180 £20.21 Add
054 736-0722 Lock Washer, #10 £3.20 Add
055 23519-AF SLEEVE 092.34.133 £11.76 Add
056 46677-AF SCREW 46677 £3.91 Add
057 43081-AF FLAT WASHER £3.49 Add
058 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
059 45017-AF Y VALVE £30.93 Add
060 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.58 Add
061 45071-AF Gauge, Pressure 2" 100 PSI 45071 £58.88 Add
062 45072-AF GASKET £3.70 Add
