Parts list

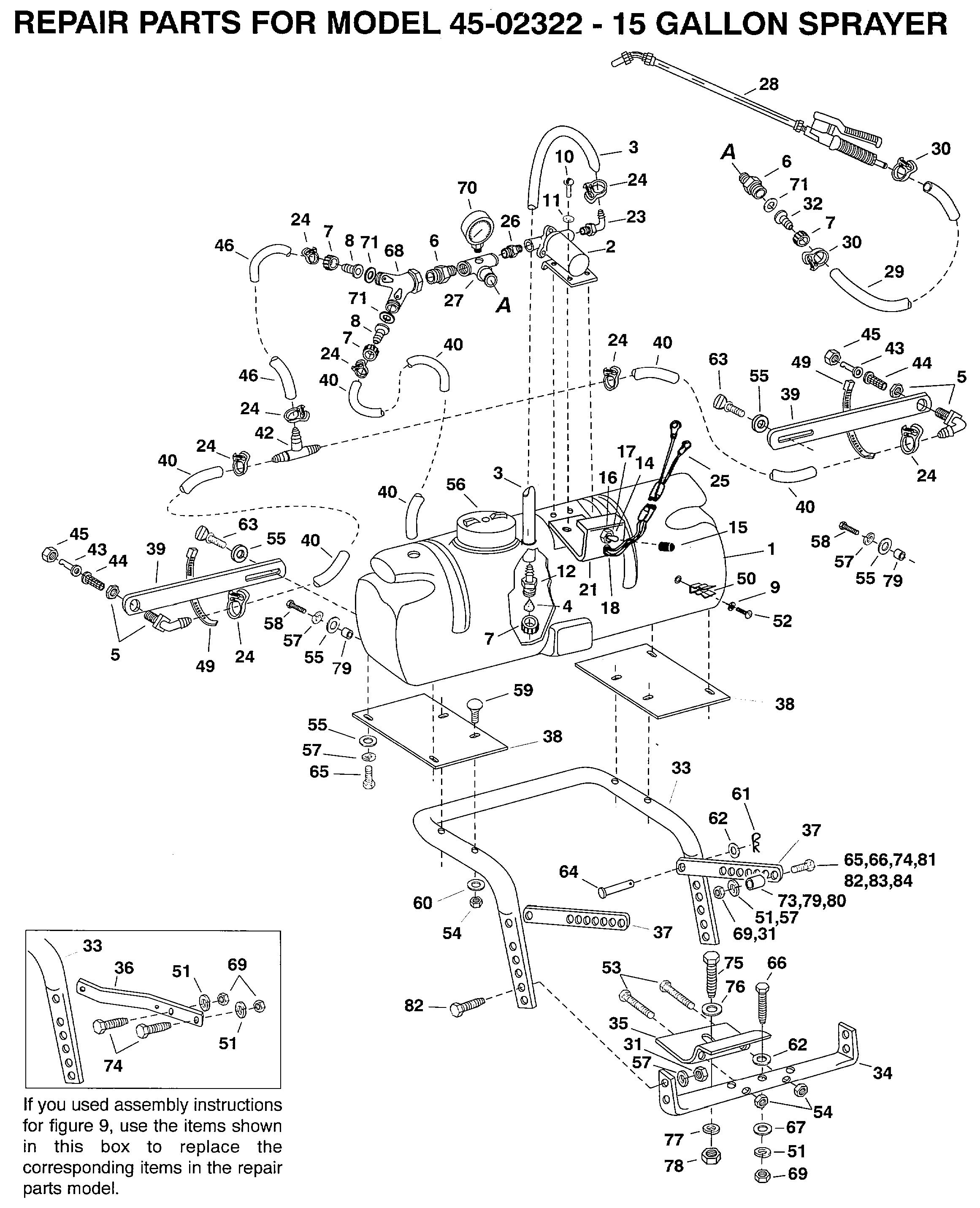

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46532-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
46478-AF
|
TANK (15 GAL.)
|
£256.60
|
Add
|
|
002
|
45015-AF
|
PUMP AND MOTOR
|
£421.85
|
Add
|
|
003
|
46278-AF
|
HOSE
|
£15.33
|
Add
|
|
004
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
005
|
45030-AF
|
ELBOW PLASTIC
|
£10.89
|
Add
|
|
006
|
45031-AF
|
ADAPTOR (RED)
|
£4.58
|
Add
|
|
007
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
008
|
45033-AF
|
HOSE BARB 1/2"
|
£3.62
|
Add
|
|
009
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
010
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
011
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
012
|
46276-AF
|
Adapter, 3/4" GH x 1/2" Barb 46276
|
£5.68
|
Add
|
|
014
|
45084-AF
|
Switch, On - Off 45084
|
£25.40
|
Add
|
|
015
|
45082-AF
|
Boot, Rubber Switch 45082
|
£13.83
|
Add
|
|
016
|
45080-AF
|
PLATE, ON - OFF SWITCH
|
£4.05
|
Add
|
|
017
|
45048-AF
|
Nut, Hex 15/32-32 Thd. 45048
|
£4.05
|
Add
|
|
018
|
45087-AF
|
Bushing, Strain Relief 45087
|
£4.05
|
Add
|
|
019
|
45085-AF
|
Terminal, .25 Male Tab (not shown) 45085
|
£5.68
|
Add
|
|
020
|
45086-AF
|
Terminal, .25 Female Tab (not shown) 45086
|
£6.20
|
Add
|
|
021
|
23889-AF
|
Bracket, Switch Mounting 23889
|
£19.19
|
Add
|
|
023
|
46277-AF
|
Elbow, 3/8 NPT x 1/2" Barb 46277
|
£5.79
|
Add
|
|
024
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
025
|
45018-AF
|
CONNECTOR W/WIRE
|
£71.79
|
Add
|
|
026
|
45049-AF
|
NIPPLE
|
£4.74
|
Add
|
|
027
|
45050-AF
|
TEE,1/2 x 1/2 x 1/2 (1/4"PORT) AF-45050
|
£32.90
|
Add
|
|
028
|
45016-AF
|
ASSY SPRAY GUN 45016
|
£132.03
|
Add
|
|
029
|
45023-AF
|
HOSE, 3/8 ID (12'6" LG)
|
£68.26
|
Add
|
|
030
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
|
031
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
032
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
033
|
45193-AF
|
TUBE, FRAME
|
£38.97
|
Add
|
|
034
|
45194-AF
|
TUBE, CROSSOVER
|
£22.07
|
Add
|
|
035
|
23932-AF
|
BRACKET, HITCH
|
£11.59
|
Add
|
|
036
|
23933-AF
|
BAR, HITCH
|
£10.25
|
Add
|
|
037
|
23931-AF
|
STRAP, MOUNT ADJUST
|
£7.41
|
Add
|
|
038
|
24123-AF
|
BRACKET, TANK MOUNT
|
N/A
|
POA
|
|
039
|
24122-AF
|
BOOM BAR
|
£25.27
|
Add
|
|
040
|
45021-AF
|
HOSE
|
£12.61
|
Add
|
|
042
|
45027-AF
|
T-STÜCK PLASTIK 45027
|
N/A
|
POA
|
|
043
|
45028-AF
|
NOZZLE FLOODJET
|
£8.19
|
Add
|
|
044
|
45029-AF
|
STRAINER SCREEN
|
£11.35
|
Add
|
|
045
|
45037-AF
|
NUT
|
£5.96
|
Add
|
|
046
|
45022-AF
|
HOSE, 1/2 ID (14" LG.)
|
£10.89
|
Add
|
|
049
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
050
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
051
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
052
|
46677-AF
|
SCREW 46677
|
£3.91
|
Add
|
|
053
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
054
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
055
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
056
|
46700-AF
|
LID FOR SPRAYERS
|
£37.30
|
Add
|
|
057
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
058
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
|
059
|
45039-AF
|
BOLT, CARR 5/16-18x2" LG AF-45039
|
£4.05
|
Add
|
|
060
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
061
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
062
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
063
|
46528-AF
|
Bolt 46528
|
£6.99
|
Add
|
|
064
|
43023-AF
|
CLEVIS PIN 092.34.115
|
£12.69
|
Add
|
|
065
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
066
|
43432-AF
|
Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432
|
£4.05
|
Add
|
|
067
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
068
|
45017-AF
|
Y VALVE
|
£30.93
|
Add
|
|
069
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
|
070
|
45071-AF
|
Gauge, Pressure 2" 100 PSI 45071
|
£58.88
|
Add
|
|
071
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
|
073
|
23625-AF
|
Spacer, 1/4" Long 23625
|
£10.35
|
Add
|
|
074
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
075
|
43020-AF
|
BOLT 1/2-13 X 1-1/2 HEX HEAD
|
£7.06
|
Add
|
|
076
|
R19172410-AF
|
WASHER-FLAT AF-R19172410
|
N/A
|
POA
|
|
077
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
078
|
712-0206
|
NUT
|
£3.42
|
Add
|
|
079
|
23519-AF
|
SLEEVE 092.34.133
|
£11.76
|
Add
|
|
080
|
23228-AF
|
SPACER BUSHING
|
£18.75
|
Add
|
|
081
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
082
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
083
|
43085-AF
|
Bolt, Hex 5/16-18 x 1-1/2"
|
£4.15
|
Add
|
|
084
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
