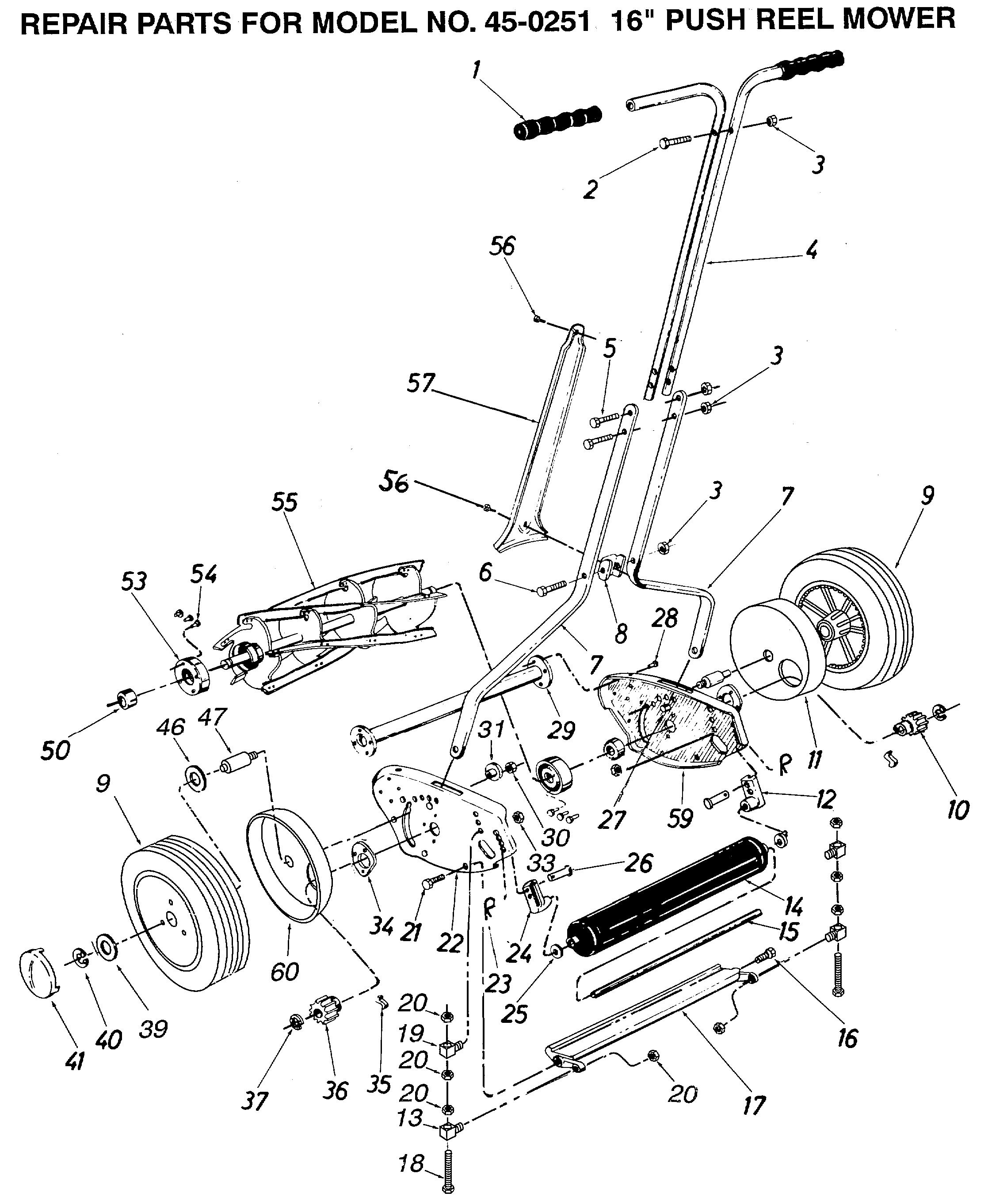

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46441-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
07071-AF
|
GRIP, HANDLE (BLACK)
|
N/A
|
POA
|
|
002
|
43084-AF
|
BOLT
|
£2.56
|
Add
|
|
003
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
004
|
749-0301
|
UPPER HANDLE
|
N/A
|
POA
|
|
005
|
43224-AF
|
BOLT
|
£5.85
|
Add
|
|
006
|
44292-AF
|
Bolt, Hex 5/16-18 x 2-1/2" Lg. 44179
|
£4.05
|
Add
|
|
007
|
24095-AF
|
HANDLE BRACE
|
N/A
|
POA
|
|
008
|
2624-018
|
SPACER
|
N/A
|
POA
|
|
009
|
1108-080
|
WHEEL ASSY COMP
|
£116.61
|
Add
|
|
010
|
0425-000
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
011
|
1118-13
|
GEAR HOUSING ASS'Y. - R.H.
|
N/A
|
POA
|
|
012
|
1609-708-AF
|
ROLLER BRKT.--R.H. 1609-708
|
N/A
|
POA
|
|
013
|
46330-AF
|
TRUNNION, ADJ. SCREW
|
N/A
|
POA
|
|
014
|
46472-AF
|
16" ROLLER
|
N/A
|
POA
|
|
015
|
24091-AF
|
ROLLER SHAFT
|
N/A
|
POA
|
|
016
|
710-0942
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
017
|
63191-AF
|
CUTTER BAR ASSEMBLY
|
N/A
|
POA
|
|
018
|
46331-AF
|
SCREW, ADJUSTMENT
|
N/A
|
POA
|
|
019
|
46329-AF
|
TRUNNION, ADJUSTMENT SCREW
|
N/A
|
POA
|
|
020
|
712-0241
|
HEX NUT 3/8-24
|
£2.79
|
Add
|
|
021
|
AF-455
|
SCREW
|
£17.75
|
Add
|
|
022
|
3111-48
|
END PLATE ASS'Y. - L.H. (REPLACES #63205)
|
N/A
|
POA
|
|
023
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
024
|
1609-707-AF
|
ROLLER BRKT.--L.H. 1609-707
|
N/A
|
POA
|
|
025
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
026
|
46462-AF
|
CLEVIS PIN, 5/16" X 1" LG.
|
N/A
|
POA
|
|
027
|
0010-000
|
TRUNNION (DNR)
|
£3.59
|
Add
|
|
028
|
44060-AF
|
RIVET 3/16 X 3/8 PLTD
|
£3.28
|
Add
|
|
029
|
63190-AF
|
SPACER TUBE ASS'Y.
|
N/A
|
POA
|
|
030
|
44738-AF
|
Nut, Hex Lock 5/16-24 "Unitork" 44738
|
£3.91
|
Add
|
|
031
|
1657-19-AF
|
BUSHING 1657-019
|
N/A
|
POA
|
|
033
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
034
|
1629-9-AF
|
RETAINER
|
N/A
|
POA
|
|
035
|
0323-000
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
036
|
428-AF
|
PINION GEAR - L.H. 0428-000 (OBSOLETE)
|
N/A
|
POA
|
|
037
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
039
|
1540-118-AF
|
WASHER, FLAT 1-1/4x17/32x1/16 AF-1540-118
|
N/A
|
POA
|
|
040
|
716-0104
|
RETAINING RING 1650-001
|
£3.58
|
Add
|
|
041
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
046
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
047
|
1631-51
|
AXLE
|
N/A
|
POA
|
|
050
|
44232-AF
|
BALL BEARING
|
£35.66
|
Add
|
|
053
|
24093-AF
|
DUST COVER
|
N/A
|
POA
|
|
054
|
9-0-AF
|
RIVET 3/16 X 13/32 RD. HD.
|
N/A
|
POA
|
|
055
|
63189-AF
|
16" REEL ASS'Y.
|
N/A
|
POA
|
|
056
|
44818-AF
|
BOLT SPINDLE AF-44818
|
£3.58
|
Add
|
|
057
|
3622-54
|
HANDLE PANEL
|
N/A
|
POA
|
|
059
|
3111-47
|
END PLATE ASS'Y. - R.H. (REPLACES #63204)
|
N/A
|
POA
|
|
060
|
1118-14-AF
|
GEARING HOUSING - L.H. 1118-014
|
N/A
|
POA
|
