FG324_0020

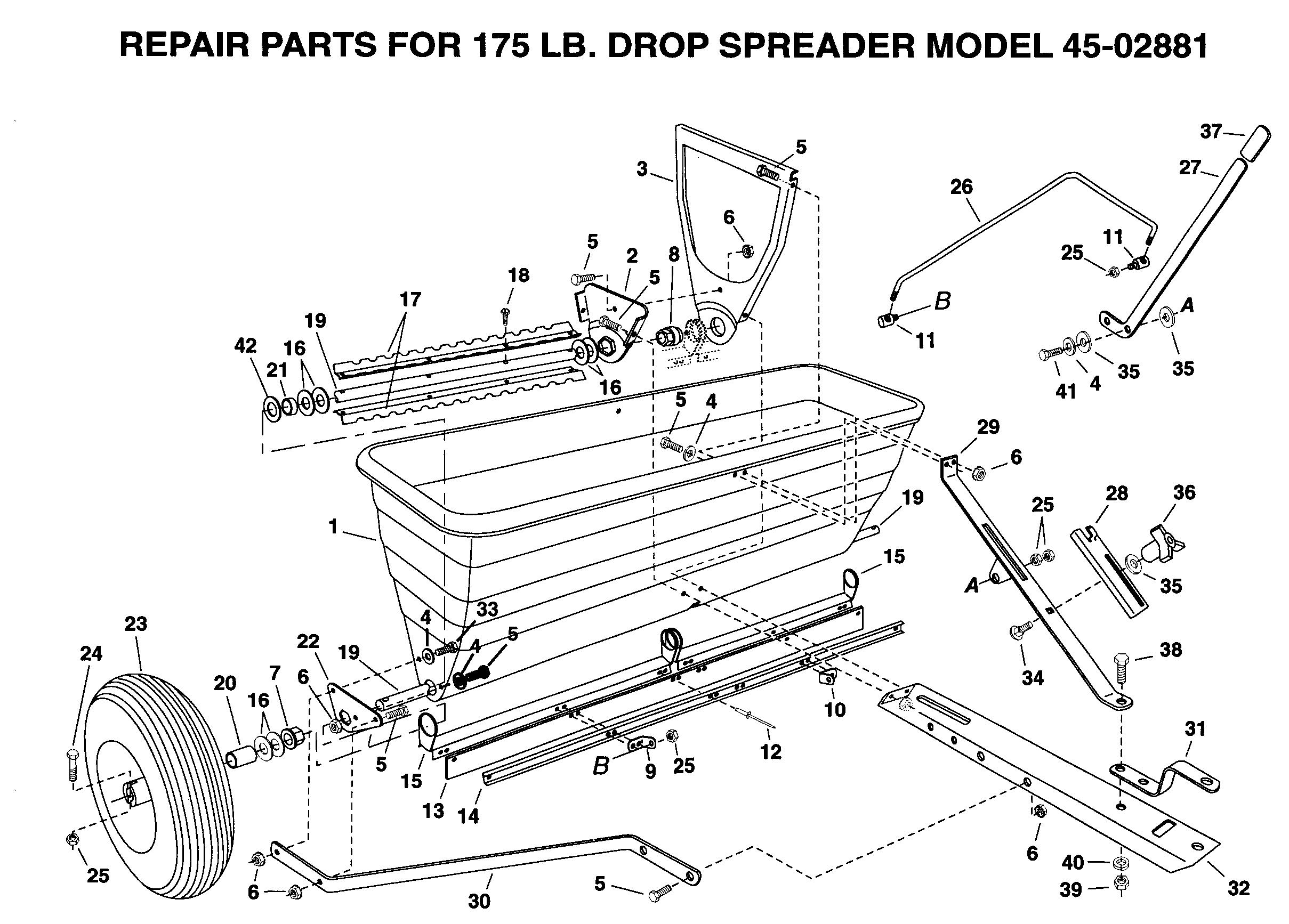

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0020

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47717-AF OWNERS MANUAL N/A POA
001 47451-AF HOPPER £310.42 Add
002 24536-AF HOPPER CENTER PLATE (SMALL) £6.87 Add
003 24535-AF HOPPER CENTER PLATE (LARGE) £35.37 Add
004 43088-AF FLAT WASHER £2.69 Add
005 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.01 Add
006 46978-AF NUT £3.02 Add
007 741-0245 BRG:HEX FLANGE x.75 ID £11.03 Add
008 47484-AF BEARING, HEX FLANGE £19.84 Add
009 24538-AF BRACKET, FEED PLATE (RH) £5.33 Add
010 24539-AF BRACKET, FEED PLATE (LH) £5.33 Add
011 47711-AF FERRULE £13.96 Add
012 728-3001 Pop Rivet N/A POA
013 47459-AF SKIRT, 48" £35.65 Add
014 47508-AF RETAINER, SKIRT £39.21 Add
015 24537-AF FLOW PLATE £17.57 Add
016 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £4.55 Add
017 47259-AF AGITATOR BLADE £8.90 Add
018 47978-AF SCREW, HEX WASH 8-32 x 1/4"LG AF-47978 £3.57 Add
019 24540-AF AXLE N/A POA
020 46497-AF Spacer, 1.2" Long 46497 £3.76 Add
021 47458-AF SPACER, 1.25" OD X .330" LG. £10.37 Add
022 24534-AF PLATE, BEARING N/A POA
023 40939-AF USE 734-1513B 44457 N/A POA
024 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.40 Add
025 712-0291 LOCK-NUT £2.35 Add
026 47712-AF ROD, FLOW CONTROL £52.36 Add
027 24660-AF ARM, FLOW CONTROL £28.40 Add
028 24542-AF GAUGE, FLOW CONTROL £7.27 Add
029 63850-AF BRACE ASSEMBLY, HOPPER £36.37 Add
030 24532-AF BRACE, TONGUE £12.47 Add
031 23014-AF HITCH BRACKET £27.42 Add
032 24531-AF TONGUE £28.28 Add
033 43012-AF BOLT £2.87 Add
034 44950-AF BOLT £3.14 Add
035 1543-69-AF Washer, Nylon 1543-069 N/A POA
036 43849-AF Knob, Plastic 1/4-20 Thd. 43849 £21.31 Add
037 43848-AF Grip, Flow Control Arm 43848 £5.18 Add
038 43001-AF HEX BOLT (RED) £3.02 Add
039 43082-AF HEX LOCK NUT £3.56 Add
040 736-0169 L. WASHER £2.45 Add
041 1509-090 Bolt, Hex 1/4-20 x 1-1/4" Lg. 1509-90 N/A POA
042 43601-AF WASHER £7.78 Add
043 47623-AF HITCH PIN £3.08 Add
044 43343-AF PIN COTTER £4.72 Add
