FG324_0030

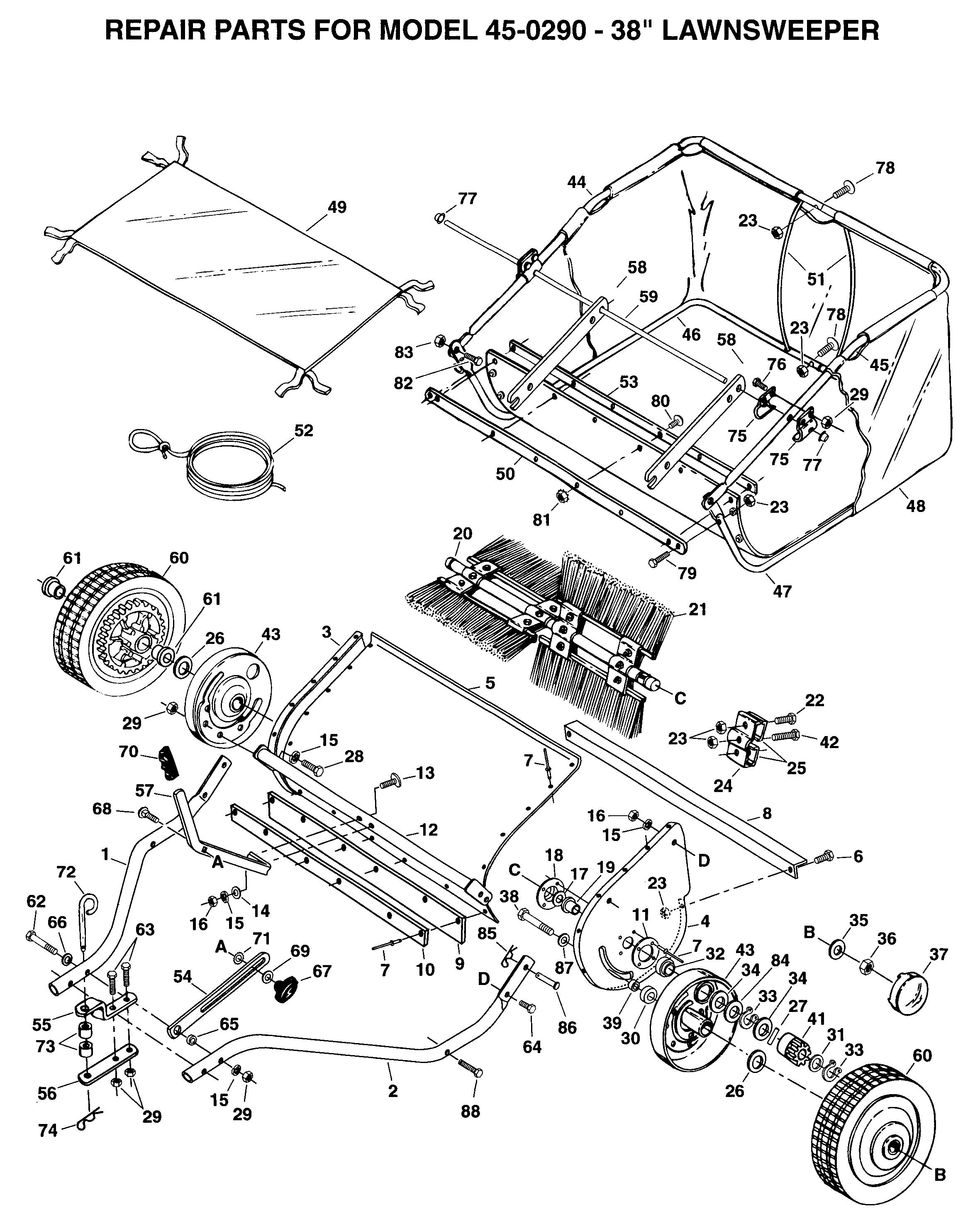

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0030

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47548-AF OWNERS MANUAL N/A POA
001 47370-AF HITCH TUBE, R.H. N/A POA
002 47371-AF HITCH TUBE, L.H. £41.80 Add
003 24182-AF SIDE FRAME RIGHT AF-24182 £30.11 Add
004 24183-AF PLATE-SIDE LH AF-24183 £30.11 Add
005 24485-AF WRAPPER N/A POA
006 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £3.59 Add
007 C-9M5732 Pop Rivet £2.10 Add
008 23854-AF Brace, Rear Support 23854 £19.14 Add
009 43673-AF SKIRT £18.48 Add
010 24486-AF RETAINER, SKIRT N/A POA
011 23336-AF Washer, Special 23336 £4.23 Add
012 63869-AF HEIGHT ADJUSTMENT TUBE ASS'Y. N/A POA
013 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £3.51 Add
014 44695-AF Washer, Bowed 44695 £3.51 Add
015 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
016 43083-AF HEX NUT £2.87 Add
017 R19212113 Washer, 5/8" SAE £5.13 Add
018 AF-1629-56 Retainer, Dust Cover 1629-56 £22.82 Add
019 44910-AF BUSHING BRUSH SHAFT (RED) £7.19 Add
020 24085-AF Brush Shaft 24085 £84.51 Add
021 47488-AF BRUSH £18.00 Add
022 43012-AF BOLT £2.87 Add
023 712-0291 LOCK-NUT £2.35 Add
024 23580-AF BRUSH RETAINER 42-0197 £8.00 Add
025 23581-AF BRUSH RETAINER 42-0197 £4.72 Add
026 44008-AF WASHER £2.81 Add
027 47046-AF DOWELL PIN 1/4 X 3/4 £3.08 Add
028 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £3.51 Add
029 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
030 44911-AF SPACER £3.56 Add
031 44006-AF WASHER £4.34 Add
032 46219-AF SPACER £9.61 Add
033 AF-1650-21 RETAINING RING £2.26 Add
034 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF N/A POA
035 141-AF Washer, Flat 1-1/2" x .375" x .062" 141 £3.38 Add
036 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.01 Add
037 2674-32-AF Hub Cap 2674-32 N/A POA
038 44961-AF Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961 £3.73 Add
039 23400-AF SPACER £5.06 Add
040 2692-6-AF DRIVE PINION R.H. AF-2692-6 £17.18 Add
041 2692-7-AF DRIVE PINION LH AF-2692-7 £18.92 Add
042 43661-AF HEX BOLT £2.69 Add
043 63027-AF ASS`Y, DUST COVER 63027 £63.48 Add
044 44968-AF UPPER HOPPER TUBE - R.H. £18.72 Add
045 44969-AF UPPER HOPPER TUBE - L.H. £17.57 Add
046 43968-AF LOWER HOPPER TUBE RH £36.47 Add
047 43969-AF LOWER HOPPER TUBE LH £38.74 Add
048 44971-AF HOPPER BAG £186.43 Add
049 43687-AF BAG WIND SHIELD 38 IN AF-43687 £26.31 Add
050 23352-AF Strap, Bag Frame 23352 £24.57 Add
051 43926-AF HOPPER SUPPORT ROD £7.78 Add
052 43737-AF Hopper Rope 43737 £5.18 Add
053 24190-AF FIXATION STRIP, INSIDE AF-24190 £9.09 Add
054 24191-AF STRAP, HEIGHT ADJUSTMENT £8.96 Add
055 23687-AF Hitch Bracket 23687 £29.39 Add
056 24192-AF BRACKET (EXRED) £7.69 Add
057 24193-AF HANDLE, HEIGHT ADJUSTMENT £26.05 Add
058 24487-AF BAG-ARM AF-24487 £16.10 Add
059 47373-AF ROD, HOPPER BAG PIVOT £17.14 Add
060 44985-AF WHEEL ASSY. FOR 38" SWEEPER £50.78 Add
061 45088-AF WHEEL BEARING £10.42 Add
062 46782-AF BOLT £2.95 Add
063 43224-AF BOLT £5.06 Add
064 43063-AF BOLT £3.56 Add
065 46847-AF SLEEVE AF-46847 £3.34 Add
066 R19111116-AF WASHER £3.07 Add
067 43720-AF KNOB (RED) £6.78 Add
068 43080-AF CARRIAGE BOLT £3.02 Add
069 43081-AF FLAT WASHER £3.02 Add
070 43943-AF Handle Grip 43943 £7.33 Add
071 44732-AF TOOTH LOCK WASHER £3.02 Add
072 23353-AF HITCH PIN £16.63 Add
073 23368-AF Tube, Hitch Spacer 23368 £7.08 Add
074 43343-AF PIN COTTER £4.72 Add
075 23331-AF THROTTLE CABLE CLIP 23331 £10.40 Add
076 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
077 44917-AF PALNUT (RED) £3.25 Add
078 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £3.51 Add
079 1509-090 Bolt, Hex 1/4-20 x 1-1/4" Lg. 1509-90 N/A POA
080 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.01 Add
081 43662-AF Lock Nut, 10-32 43662 £3.23 Add
082 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.38 Add
083 43082-AF HEX LOCK NUT £3.56 Add
084 736-0287 FLAT WASHER .78" X 1.25" X .062" £6.63 Add
085 43055-AF COTTER PIN £5.23 Add
086 44044-AF CLEVIS PIN 3/8" X 3/4" LG. N/A POA
087 43070-AF Washer, 3/8" £3.38 Add
088 43084-AF BOLT £2.22 Add
