FG324_0080

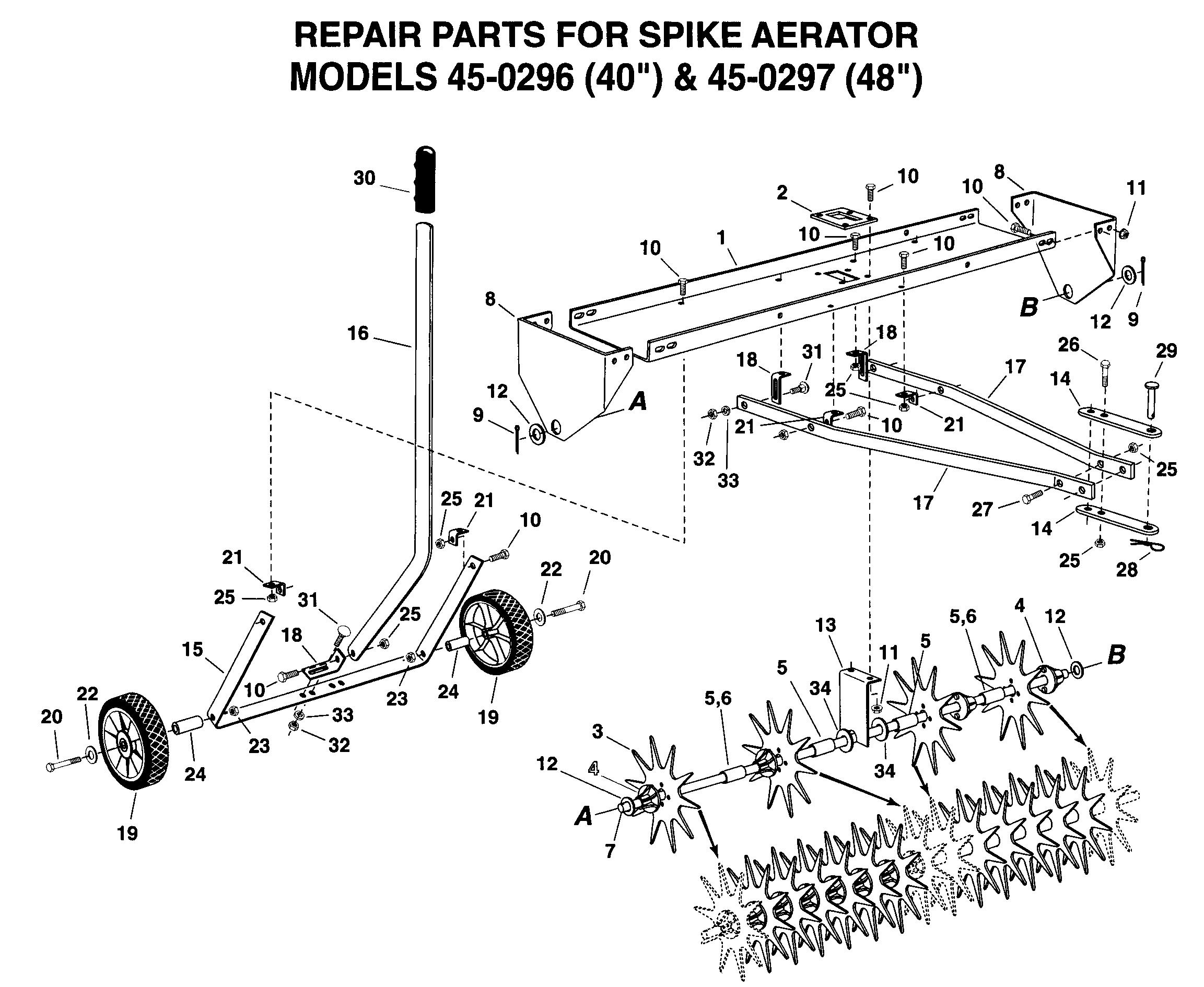

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0080

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47636-AF OWNERS MANUAL N/A POA
001 24597-AF TRAY, 40" SPIKE DISK MOUNT AF-24597 £67.90 Add
001 24628-AF TRAY, 48" SPIKE DISK MOUNT £63.17 Add
002 24594-AF PLATE AF-24594 £15.94 Add
003 23900-AF Disk, Spike 23900 £17.74 Add
003 23900-AF Disk, Spike 23900 £17.74 Add
004 45148-AF Hub, Spike Disk 45148 £6.26 Add
004 45148-AF Hub, Spike Disk 45148 £6.26 Add
005 44494-AF Spacer, 1.33" Long 44494 £4.20 Add
005 44494-AF Spacer, 1.33" Long 44494 £4.20 Add
006 44500-AF SPACER, 1" O.D. X 1" LG. £3.89 Add
007 24598-AF AXLE (40") AF-24598 £61.00 Add
007 24629-AF AXLE (48") £73.32 Add
008 24599-AF END PLATE AF-24599 £20.00 Add
009 43501-AF Cotter Pin, 9/64" x 1-1/2" 43501 £3.01 Add
010 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
011 46584-AF Nut, Whiz Lock 5/16-18 46584 £3.38 Add
012 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £4.55 Add
013 24600-AF BRACKET AXLE SUPPORT £8.05 Add
014 23981-AF HITCH BRACKET £8.48 Add
015 24595-AF AXLE BRACKET AF-24595 £29.92 Add
016 24596-AF LIFT HANDLE £26.89 Add
017 23914-AF Hitch Mount Arm 23914 £30.94 Add
018 23442-AF BRACKET HITCH ARM MOUNT £18.55 Add
019 44238-AF WHEEL ASSY 44238 £35.50 Add
020 43432-AF Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432 £3.51 Add
021 23826-AF Bracket, Angle £6.95 Add
022 43070-AF Washer, 3/8" £3.38 Add
023 43082-AF HEX LOCK NUT £3.56 Add
024 23906-AF BEARING,JOURNAL 23906 £3.51 Add
025 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
026 44180-AF BOLT HEX HEAD £4.26 Add
027 43840-AF HEX BOLT £3.02 Add
028 43343-AF PIN COTTER £4.72 Add
029 47623-AF HITCH PIN £3.08 Add
030 43943-AF Handle Grip 43943 £7.33 Add
031 43080-AF CARRIAGE BOLT £3.02 Add
032 43083-AF HEX NUT £2.87 Add
033 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
034 1540-162-AF Washer, Flat 1/2" 1540-162 £5.73 Add
