FG324_0090

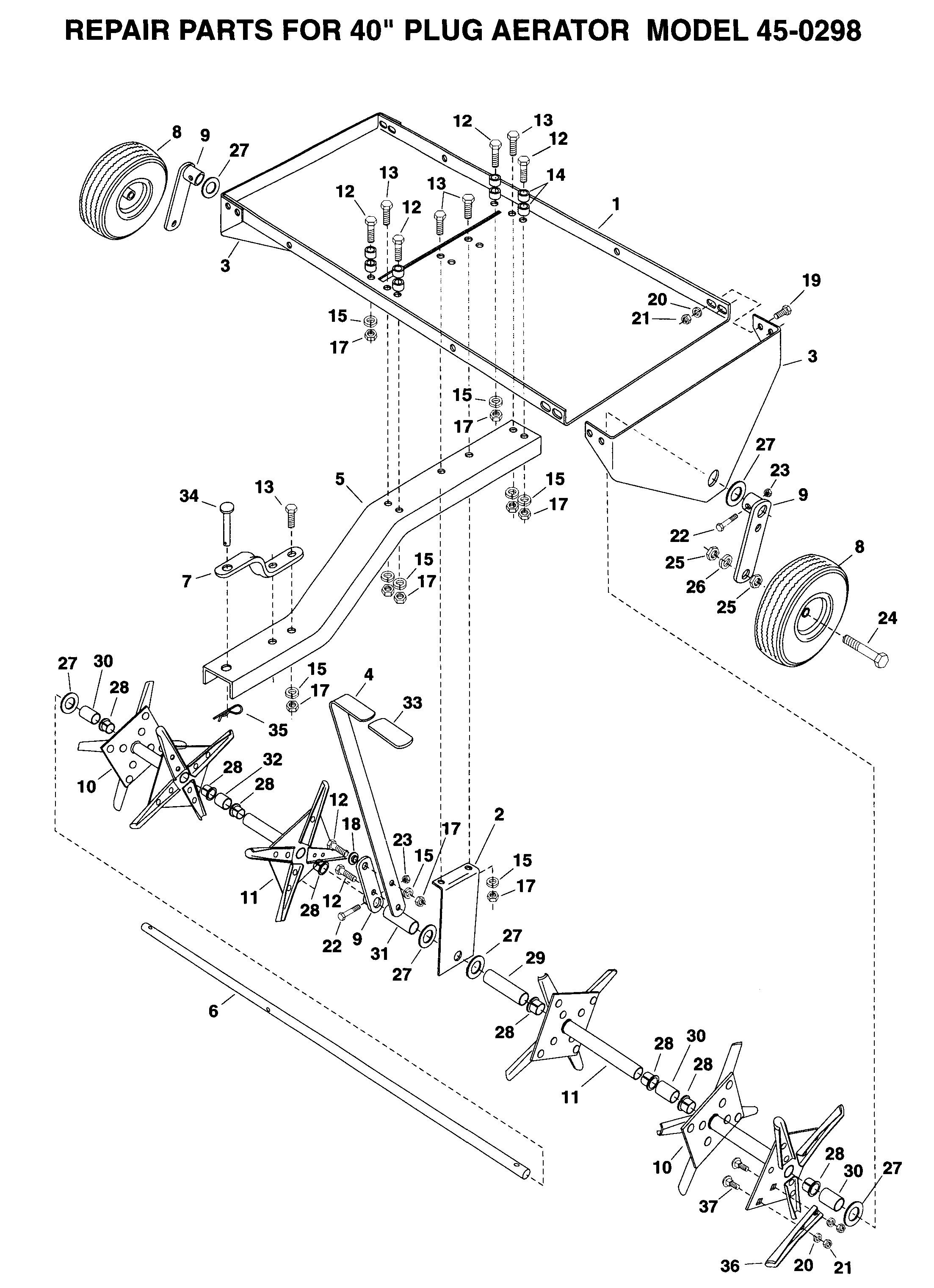

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0090

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47649-AF OWNERS MANUAL N/A POA
001 24618-AF TRAY AF-24618 £107.64 Add
002 24623-AF BRACKET, AXLE REINFORCEMENT AF-24623 £11.22 Add
003 24619-AF END PLATE AF-24619 £50.36 Add
004 24624-AF LIFT HANDLE AF-24624 £27.06 Add
005 24103-AF TONGUE £36.14 Add
006 24622-AF SHAFT N/A POA
007 23687-AF Hitch Bracket 23687 £29.39 Add
008 47052-AF WHEEL £88.36 Add
009 63931-AF WHEEL BRACKET ASSEMBLY £51.06 Add
010 63929-AF SPOOL ASSEMBLY (DOUBLE) £59.82 Add
011 63930-AF SPOOL ASSEMBLY (SINGLE) N/A POA
012 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £3.96 Add
013 43001-AF HEX BOLT (RED) £3.02 Add
014 23625-AF Spacer, 1/4" Long 23625 £8.96 Add
015 736-0169 L. WASHER £2.45 Add
017 43082-AF HEX LOCK NUT £3.56 Add
018 44685-AF Spacer, Shoulder 44685 £5.18 Add
019 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
020 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
021 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
022 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £3.96 Add
023 712-0291 LOCK-NUT £2.35 Add
024 47058-AF HEX BOLT 1/2-13X4"LG AF-47058 £4.80 Add
025 43019-AF Hex Jam Nut, 1/2-13 Thd. 43019 £3.96 Add
026 43353-AF Lock Washer, 1/2" 43353 £2.66 Add
027 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £4.55 Add
028 741-0493A Split Bearing, 3/4" £3.57 Add
029 45151-AF SPACER £9.53 Add
030 44494-AF Spacer, 1.33" Long 44494 £4.20 Add
031 44474-AF Spacer, 2.38" Long 44474 £5.01 Add
032 44500-AF SPACER, 1" O.D. X 1" LG. £3.89 Add
033 47707-AF GRIP N/A POA
034 47623-AF HITCH PIN £3.08 Add
035 43343-AF PIN COTTER £4.72 Add
036 23084-AF MESSERFLÜGEL 23084 £11.15 Add
037 43080-AF CARRIAGE BOLT £3.02 Add
