FG324_0140

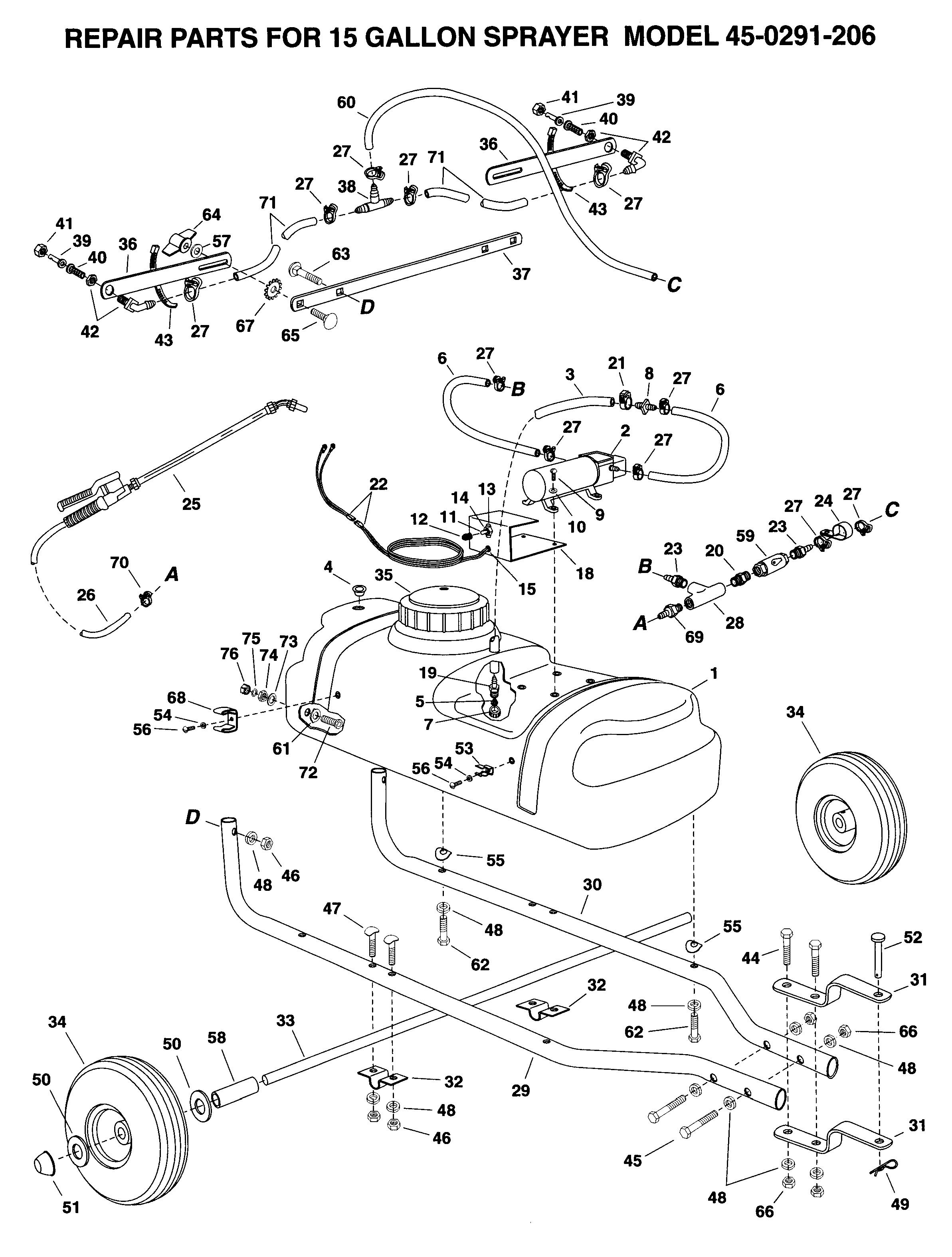

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0140

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47835-AF OWNERS MANUAL N/A POA
001 68391-AF KIT TANK MOUNTING £204.72 Add
002 47001-AF PUMP AND MOTOR N/A POA
003 45022-AF HOSE, 1/2 ID (14" LG.) £9.43 Add
004 46287-AF PLUG £3.76 Add
005 45024-AF CAP STRAINER £3.56 Add
006 47002-AF HOSE, 3/8" ID (10" LG.) N/A POA
007 45032-AF NUT SWIVEL £3.35 Add
008 47005-AF HOSE REDUCER, 1/2" X 3/8" £5.70 Add
009 47078-AF SCREW #10-24 X 3/4" £3.38 Add
010 43910-AF Washer, Flat #10 SAE 43910 £2.76 Add
011 45084-AF Switch, On - Off 45084 £21.99 Add
012 45082-AF Boot, Rubber Switch 45082 £11.97 Add
013 45080-AF PLATE, ON - OFF SWITCH £3.51 Add
014 45048-AF Nut, Hex 15/32-32 Thd. 45048 £3.51 Add
015 45087-AF Bushing, Strain Relief 45087 £3.51 Add
016 45085-AF Terminal, .25 Male Tab (not shown) 45085 £4.92 Add
017 45086-AF Terminal, .25 Female Tab (not shown) 45086 £5.36 Add
018 23889-AF Bracket, Switch Mounting 23889 £16.62 Add
019 46276-AF Adapter, 3/4" GH x 1/2" Barb 46276 £4.92 Add
020 47411-AF NIPPLE (NYLON) 1/4" £5.64 Add
021 45025-AF CLAMP £4.72 Add
022 45018-AF CONNECTOR W/WIRE £62.15 Add
023 47412-AF ADAPTER (NYLON) 1/4" X 3/8" £4.32 Add
024 47413-AF CLAMP, CONDUIT £5.33 Add
025 47406-AF SPRAY GUN £46.72 Add
026 47393-AF HOSE 1/4 £45.94 Add
027 45026-AF CLAMP (RED) £5.06 Add
028 47415-AF TEE, NYLON 1/4" NPT. £19.38 Add
029 47624-AF HITCH TUBE, R.H. AF-47624 £60.91 Add
030 47625-AF Hitch Tube, L.H. 47625 £60.91 Add
031 23014-AF HITCH BRACKET £27.42 Add
032 24586-AF CLIP-BODY AF-24586 £4.16 Add
033 24584-AF AXLE £13.27 Add
034 47052-AF WHEEL £88.36 Add
035 46700-AF LID FOR SPRAYERS £32.29 Add
036 24122-AF BOOM BAR £21.88 Add
037 24585-AF BRACKET BOOM MOUNT £10.67 Add
038 47394-AF TEE £4.99 Add
039 45028-AF NOZZLE FLOODJET £7.09 Add
040 45029-AF STRAINER SCREEN £9.83 Add
041 45037-AF NUT £5.16 Add
042 47396-AF ELBOW, PLASTIC 11/16" THD. £7.02 Add
043 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
044 43224-AF BOLT £5.06 Add
045 46782-AF BOLT £2.95 Add
046 43083-AF HEX NUT £2.87 Add
047 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £3.51 Add
048 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
049 43343-AF PIN COTTER £4.72 Add
050 R19171616-AF Washer, Flat 17/32" I.D. R19171616 N/A POA
051 44663-AF CAP NUT £3.73 Add
052 47623-AF HITCH PIN £3.08 Add
053 45180-AF Clip (Small), Spray Gun 45180 £17.50 Add
054 736-0722 Lock Washer, #10 N/A POA
055 44695-AF Washer, Bowed 44695 £3.51 Add
056 45040-AF BOLT £3.14 Add
057 43081-AF FLAT WASHER £3.02 Add
058 46578-AF SPACER (2) £3.08 Add
059 47416-AF Valve, Nylon 1/4" 47416 £40.20 Add
060 47421-AF HOSE, 3/8" ID (28" LG.) £12.54 Add
061 45072-AF GASKET £3.20 Add
062 43085-AF Bolt, Hex 5/16-18 x 1-1/2" £3.59 Add
063 44215-AF Bolt, Carriage 5/16-18 x 1-3/4" 44215 £3.01 Add
064 712-0421 KNOB £5.39 Add
065 43682-AF BOLT, CARRIAGE £2.69 Add
066 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
067 44732-AF TOOTH LOCK WASHER £3.02 Add
068 47397-AF Clip (Large), Spray Gun 47397 £16.65 Add
069 47414-AF ADAPTER, 1/4" NPT X 1/4" BARB £7.19 Add
070 47405-AF CLAMP £6.80 Add
071 47392-AF Hose, 3/8" ID (20" Lg.) 47392 £9.94 Add
072 47399-AF Drain Body 47399 £7.66 Add
073 47398-AF Washer, Nylon 47398 £3.76 Add
074 47402-AF Nut, Nylon 11/16" Thd. 47402 £3.38 Add
075 47400-AF O RING (OBSOLETE) N/A POA
076 47403-AF CAP NYLON £3.02 Add
