FG324_0150

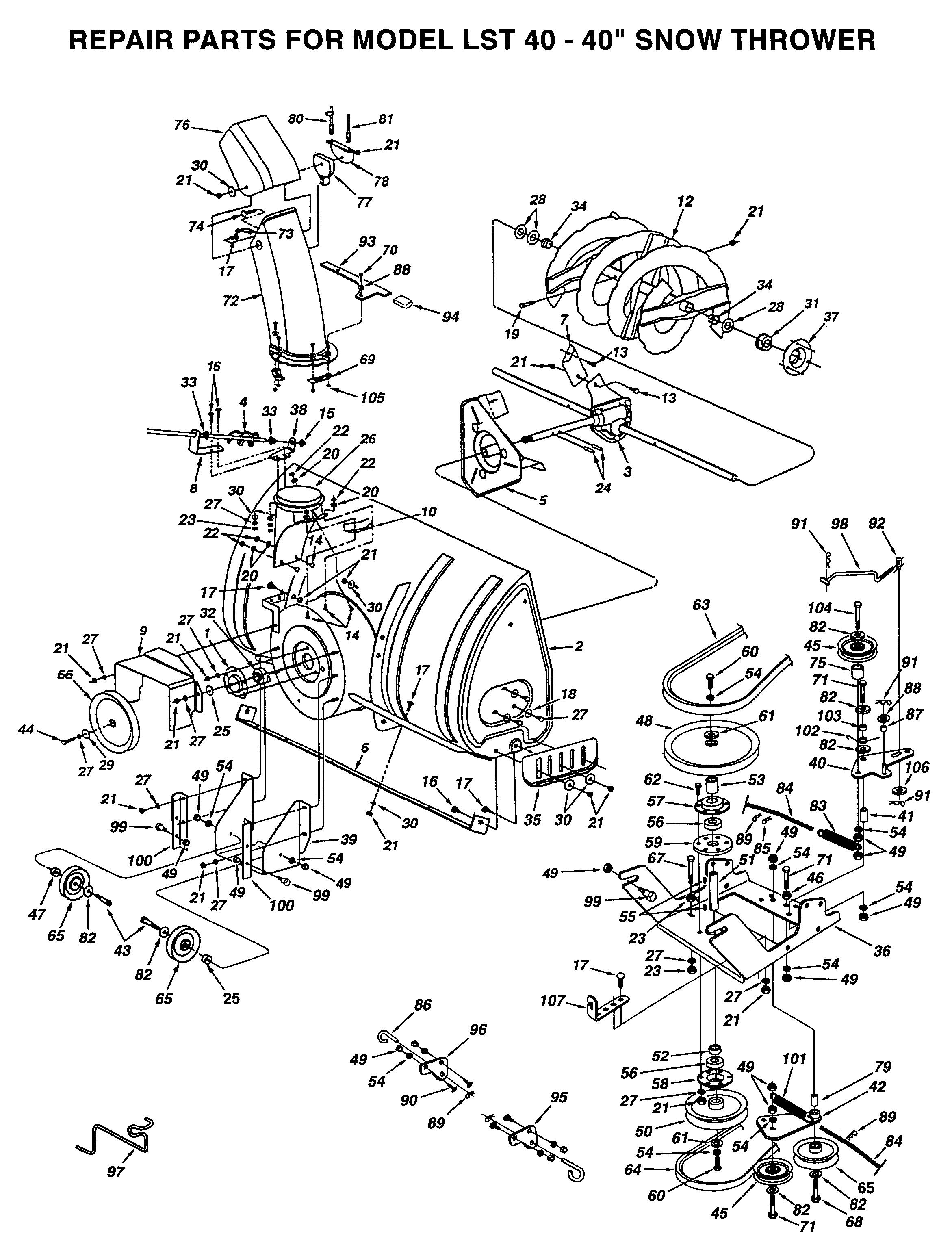

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0150

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47670-AF OWNER'S MANUAL N/A POA
001 5931 HOUSING BEARING £11.23 Add
002 63562-AF HOUSING ASSEMBLY N/A POA
003 618-0161A TRANSMISSION £339.09 Add
004 63579-AF CHUTE CRANK ROD ASSEMBLY N/A POA
005 63768-AF IMPELLER ASSEMBLY N/A POA
006 24278-AF SCRAPER PLATE N/A POA
007 703-2734 BRACKET-HOUSING BRACE N/A POA
008 703-2735A BRACKET-HOUSING BRACE N/A POA
009 703-2736 COVER N/A POA
010 705-5226 REINFORCEMENT-CHUTE 5.0 £58.91 Add
011 705-5269 AUGER-SERRATED L/H £176.43 Add
012 705-5270 AUGER-SERRATED R/H N/A POA
013 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
014 44950-AF BOLT £3.14 Add
015 44917-AF PALNUT (RED) £3.25 Add
016 44326-AF BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326 £3.02 Add
017 43080-AF CARRIAGE BOLT £3.02 Add
018 46703-AF SCREW, SELF TAP 5/16-18 X 3/4" (SEE ALSO ITEM #5 PAGE 38) N/A POA
019 710-0890A BOLT:SHEAR:5/16-18:1.5:GR2 N/A POA
020 43088-AF FLAT WASHER £2.69 Add
021 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
022 712-0291 LOCK-NUT £2.35 Add
023 43083-AF HEX NUT £2.87 Add
024 715-0114A SPRING PIN 715-0114 £4.45 Add
025 750-0437 bush £17.51 Add
026 731-1379C CHUTE ADAPTER £62.44 Add
027 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
028 736-0188 FI-WASHER £5.17 Add
029 736-0231 WASHER FLAT £2.82 Add
030 43081-AF FLAT WASHER £3.02 Add
031 47615-AF BEARING, FLANGE £5.26 Add
032 741-0309 BALL BRG:.75 ID x 1.85 OD FLNG £39.20 Add
033 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
034 741-0493A Split Bearing, 3/4" £3.57 Add
035 24279-AF SKID SHOE N/A POA
036 24294-AF FRAME CLUTCH AND PULLEY N/A POA
037 784-5618 HOUSING-BRG £10.60 Add
038 24393-AF BRACKET, CHUTE CRANK N/A POA
039 24281-AF BRACKET, IDLER N/A POA
040 63904-AF IDLER ARM ASSEMBLY N/A POA
041 24286-AF SPACER, PIVOT N/A POA
042 63762-AF IDLER BRACKET ASSEMBLY N/A POA
043 41576-AF Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576 £3.51 Add
044 47600-AF HEX BOLT, 5/16-24 X 1" (LOCKING) N/A POA
045 756-0405 IDLER:FLAT:W/FLANGE 3.75"O.D. £67.75 Add
046 712-0798 HEX. NUT £5.75 Add
047 711-0242 SPACER £7.23 Add
048 46981-AF PULLEY, V TYPE 9" N/A POA
049 43082-AF HEX LOCK NUT £3.56 Add
050 46982-AF PULLEY, V TYPE 5-1/2" N/A POA
051 738-0680 SHAFT N/A POA
052 750-0456 SPACER .790 ID X .347 LG. £6.91 Add
053 750-0660 SPACER £5.03 Add
054 736-0169 L. WASHER £2.45 Add
055 714-0161 KEY:HI-PRO:3/16 x 5/8 £12.95 Add
056 741-0919B BALL BEARING £23.93 Add
057 08253B HOUSING, BEARING (OBSOLETE) N/A POA
058 15296A HOUSING, OPEN BEARING N/A POA
059 14088B SPACER, SPINDLE £20.51 Add
060 44377-AF Hex Bolt, 3/8-24 x 1" 44377 £3.51 Add
061 736-0247 F.I. WASHER £7.30 Add
062 43063-AF BOLT £3.56 Add
063 46989-AF BELT, V TYPE DRIVE N/A POA
064 47278-AF BELT, V TYPE AUGER N/A POA
065 47044-AF PULLEY, V TYPE 4" N/A POA
066 47026-AF PULLEY, V TYPE N/A POA
067 47025-AF HEX BOLT, 5/16-18 X 3-1/2" N/A POA
068 43432-AF Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432 £3.51 Add
069 731-0851A FLANGE KEEPER 5.0 DIA £9.50 Add
070 43661-AF HEX BOLT £2.69 Add
071 43054-AF Bolt, Hex 3/8-16 x 2" Lg. * 43054 £5.01 Add
072 731-1300A CHUTE-LOWER £63.29 Add
073 710-0896 SCREW WITH WASHER ST £3.55 Add
074 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.01 Add
075 24571-AF SPACER N/A POA
076 731-1320 UPPER CHUTE £42.38 Add
077 731-1313C CBL:GDE 731-1313 £18.95 Add
078 784-5594 BRKT:MT:CBL £6.24 Add
079 24472-AF BUSHING N/A POA
080 746-0929 CABLE-CHUTE CNTL £74.39 Add
081 746-0928 CHUTE-CONTROL CABLE £74.39 Add
082 43070-AF Washer, 3/8" £3.38 Add
083 46959-AF SPRING N/A POA
084 46963-AF CHAIN N/A POA
085 43055-AF COTTER PIN £5.23 Add
086 43038-AF STECKER (AF-43038) 43038 £5.57 Add
087 23727-AF Spacer 23727 £6.16 Add
088 43088-AF FLAT WASHER £2.69 Add
089 43343-AF PIN COTTER £4.72 Add
090 43350-AF Bolt, Carriage 3/8-16 x 1" Lg. 43350 £3.23 Add
091 47134-AF PIN HAIR COTTER .08" X 1.58" £3.38 Add
092 711-0198 PIVOT BUSHING £9.13 Add
093 24394-AF BRACKET, CHUTE ANTI-ROTATION N/A POA
094 1643-60 KNOB N/A POA
095 63566-AF HANGER BRACKET ASSEMBLY, R.H. N/A POA
096 63567-AF HANGER BRACKET ASSEMBLY, L.H. N/A POA
097 47043-AF KEEPER, ENGINE PULLEY N/A POA
098 46948-AF ROD, ENGAGEMENT N/A POA
099 738-0234 SCREW-SHLD £8.76 Add
100 24466-AF BRACKET, DOWN STOP N/A POA
101 47620-AF SPRING N/A POA
102 47607-AF SPRING, TORSION N/A POA
103 23625-AF Spacer, 1/4" Long 23625 £8.96 Add
104 43509-AF BOLT 3/8-16 X 2-3/4 HEX HEAD £3.96 Add
105 47598-AF HEX LOCK NUT, 1/4" WASH. FACE N/A POA
106 47605-AF WASHER, FLAT 3/8" N/A POA
107 24558-AF CABLE BRACKET N/A POA
