FG324_0160

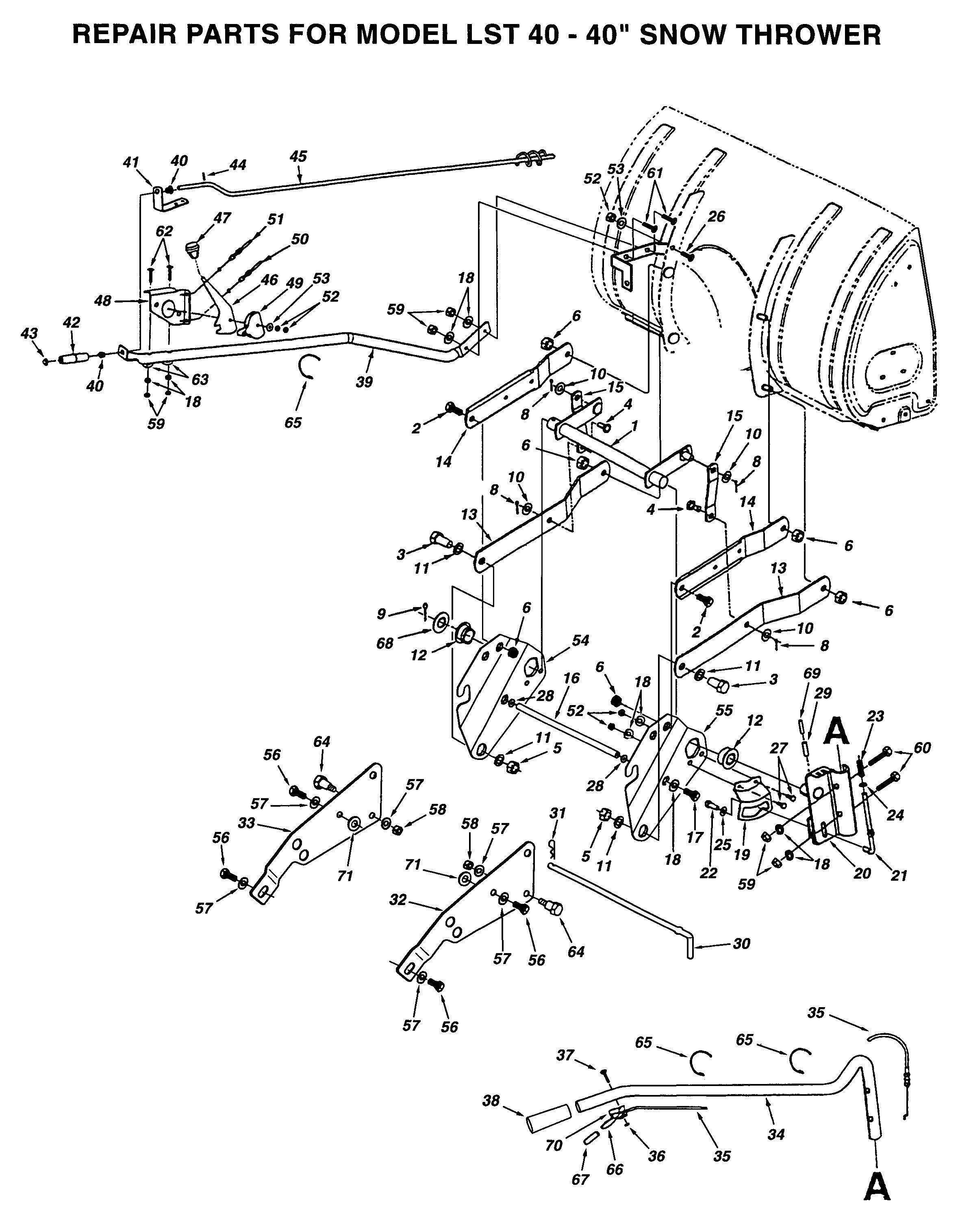

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0160

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 63764-AF LIFT SHAFT ASSEMBLY N/A POA
002 710-0865 HEX BOLT, 1/2-13 X 1" £3.90 Add
003 710-0367 SCREW-HEX £7.88 Add
004 711-0332 CLEVIS PIN (RED) £10.97 Add
005 712-0261 NUT-HEX CENTER L £12.86 Add
006 43262-AF NUT 1/2-13 HEX LOCK £5.36 Add
008 142 COTTER £2.36 Add
009 43093-AF COTTER PIN £2.69 Add
010 R19171616-AF Washer, Flat 17/32" I.D. R19171616 N/A POA
011 736-0366 WASHER £3.34 Add
012 741-0192 FLANGE BEARING N/A POA
013 783-0380 LINK-15.80 LG POWDER BLACK £18.71 Add
014 783-0381 LINK-11.75 LG N/A POA
015 24476-AF LINK, 4.88" LONG N/A POA
016 24311-AF ROD, SPACER N/A POA
017 47599-AF HEX BOLT, 5/16-18 X 1" (LOCKING) N/A POA
018 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
019 24298-AF BRACKET, LIFT N/A POA
020 683-0130 BRACKET ASSY-HNDL POWER BLACK N/A POA
021 747-3248A ROD-LIFT LATCH £32.93 Add
022 47277-AF SCREW, HEX SLOTTED #10 N/A POA
023 732-0306A SPACER £4.44 Add
024 R19131316-AF Washer, .8175 x 1.5 x .06 R19131316 N/A POA
025 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
026 43080-AF CARRIAGE BOLT £3.02 Add
027 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
028 R19111116-AF WASHER £3.07 Add
029 47338-AF PIN, SPRING 1/4" X 1-1/2" N/A POA
030 46954-AF PIN, ATTACHMENT N/A POA
031 43343-AF PIN COTTER £4.72 Add
032 24354-AF PLATE, SIDE (R.H.) N/A POA
033 24283-AF PLATE, SIDE (L.H.) N/A POA
034 47326-AF TUBE, LIFT HANDLE N/A POA
035 47555-AF CABLE, LIFT N/A POA
036 712-0127 NUT-FLAT WELD £7.85 Add
037 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £7.37 Add
038 46446-AF GRIP N/A POA
039 47027-AF TUBE, CRANK ROD SUPPORT N/A POA
040 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
041 703-2735A BRACKET-HOUSING BRACE N/A POA
042 720-0201A KNOB:CRK:1.00 DIA x 3.2 CHUTE £17.11 Add
043 44917-AF PALNUT (RED) £3.25 Add
044 43850-AF ROLL PIN £5.87 Add
045 63579-AF CHUTE CRANK ROD ASSEMBLY N/A POA
046 784-5604 LEVER-CONTROL £29.89 Add
047 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
048 603-0302 BRKT:TRNMT N/A POA
049 731-1313C CBL:GDE 731-1313 £18.95 Add
050 746-0928 CHUTE-CONTROL CABLE £74.39 Add
051 746-0929 CABLE-CHUTE CNTL £74.39 Add
052 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
053 43081-AF FLAT WASHER £3.02 Add
054 24285-AF PLATE, MOUNTING (L.H.) N/A POA
055 24284-AF PLATE, MOUNTING (R.H.) N/A POA
056 47631-AF HEX BOLT, 3/8-16 X 1" SELF THR. N/A POA
057 736-0169 L. WASHER £2.45 Add
058 43082-AF HEX LOCK NUT £3.56 Add
059 43083-AF HEX NUT £2.87 Add
060 43084-AF BOLT £2.22 Add
061 43682-AF BOLT, CARRIAGE £2.69 Add
062 44215-AF Bolt, Carriage 5/16-18 x 1-3/4" 44215 £3.01 Add
063 44695-AF Washer, Bowed 44695 £3.51 Add
064 738-0234 SCREW-SHLD £8.76 Add
065 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
066 63755-AF ASSEMBLY, CABLE RELEASE TRIGGER N/A POA
067 47317-AF PLASTIC CAP £3.38 Add
068 43601-AF WASHER £7.78 Add
069 47336-AF PIN, SPRING 5/32" X 1-1/2" N/A POA
070 47554-AF HOUSING, TRIGGER N/A POA
071 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
