FG324_0170

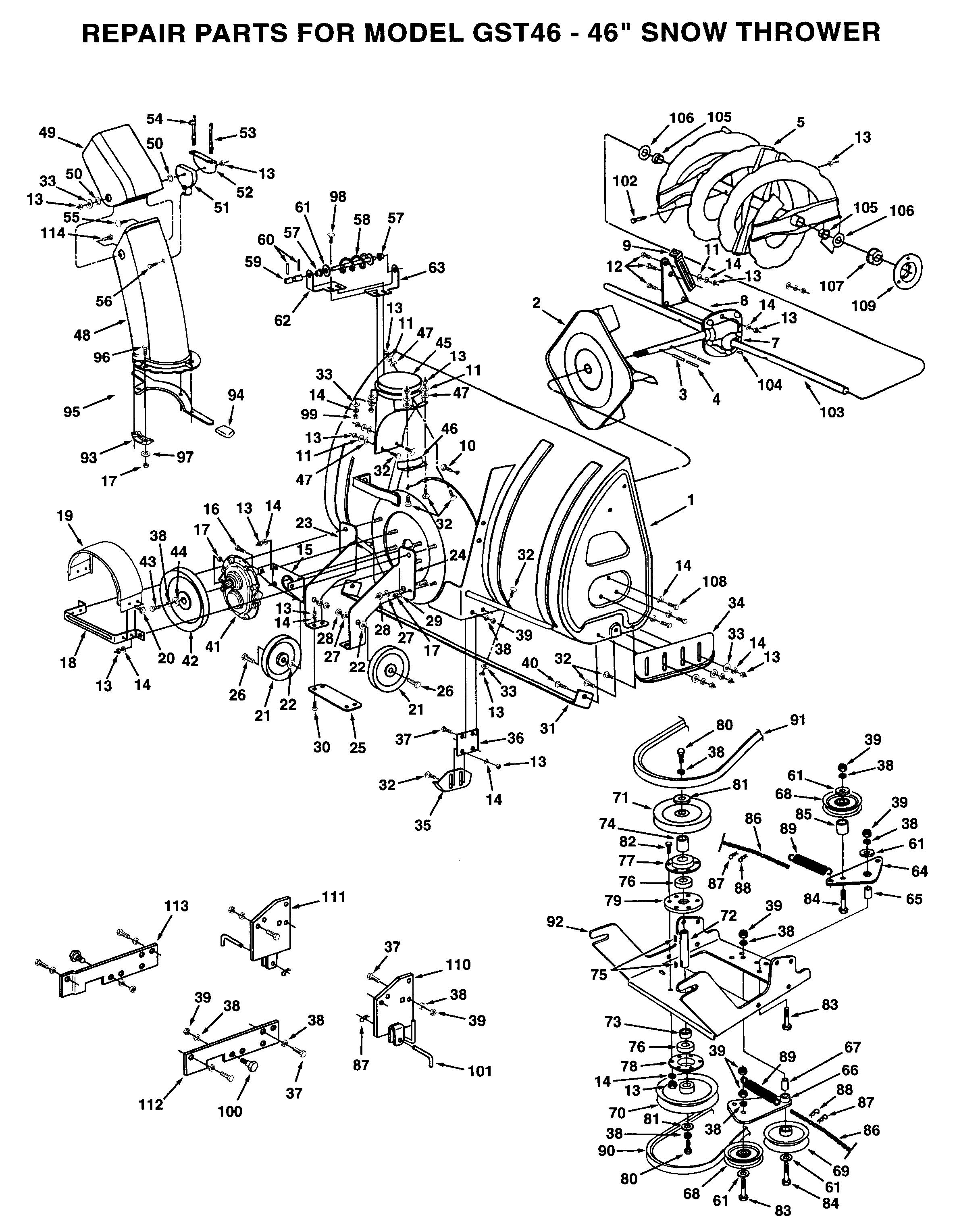

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG324_0170

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
47673-AF OWNER'S MANUAL N/A POA
001 63576-AF HOUSING ASSEMBLY N/A POA
002 63795-AF IMPELLER ASSEMBLY N/A POA
003 47368-AF SPRING PIN, 5/16" X 1-3/4" N/A POA
004 47369-AF SPRING PIN, 3/16" X 1-3/4" N/A POA
005 63772-AF SPIRAL ASSEMBLY, R.H. N/A POA
006 63771-AF SPIRAL ASSEMBLY, L.H. (NOT SHOWN) N/A POA
007 618-0244 GEAR CPL. £308.35 Add
008 24308-AF GEAR HOUSING SUPPORT PLATE N/A POA
009 784-5076 BRACKET GEAR HOUSING N/A POA
010 46703-AF SCREW, SELF TAP 5/16-18 X 3/4" (SEE ALSO ITEM #5 PAGE 38) N/A POA
011 R19111116-AF WASHER £3.07 Add
012 43063-AF BOLT £3.56 Add
013 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
014 43086-AF Lock Washer, 5/16" 43086 £3.01 Add
015 784-5703 BUSHING, AXLE SHAFT N/A POA
016 43012-AF BOLT £2.87 Add
017 712-0291 LOCK-NUT £2.35 Add
018 703-2870 BELT COVER BRACKET N/A POA
019 703-2869 BELT COVER N/A POA
020 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
021 756-3090 V-PULLEY, 7" IDLER N/A POA
022 47351-AF FLAT WASHER, 1/2" N/A POA
023 24315-AF FIXED IDLER BRACKET N/A POA
024 24316-AF PIVOT IDLER BRACKET N/A POA
025 24378-AF CROSS TIE PLATE N/A POA
026 41596-AF HEX BOLT, 1/2-13 X 2" N/A POA
027 43353-AF Lock Washer, 1/2" 43353 £2.66 Add
028 43262-AF NUT 1/2-13 HEX LOCK £5.36 Add
029 43177-AF Washer, Lock 1/4" I.D.* 43177 £2.66 Add
030 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £2.69 Add
031 24309-AF WEAR PLATE N/A POA
032 43080-AF CARRIAGE BOLT £3.02 Add
033 43081-AF FLAT WASHER £3.02 Add
034 24279-AF SKID SHOE N/A POA
035 G586868 LEVELING SHOE N/A POA
036 24481-AF SKID SHOE BRACKET N/A POA
037 43001-AF HEX BOLT (RED) £3.02 Add
038 736-0169 L. WASHER £2.45 Add
039 43082-AF HEX LOCK NUT £3.56 Add
040 43079-AF CARR, BOLT 5/16-18 X 1 £2.79 Add
041 684-0113 GEAR BOX ASSEMBLY £448.42 Add
042 756-3087 PULLEY, 9" N/A POA
043 710-0696 HEX BOLT, 3/8-24 X 7/8" £10.89 Add
044 736-0247 F.I. WASHER £7.30 Add
045 731-1696 CHUTE £71.93 Add
046 784-5711 BRACKET-MTG £17.05 Add
047 1543-69-AF Washer, Nylon 1543-069 N/A POA
048 731-0903D LOWER CHUTE £103.25 Add
049 731-0846C UPPER CHUTE £64.45 Add
050 731-1319 CHUTE PIVOT SPACER £3.23 Add
051 731-1313C CBL:GDE 731-1313 £18.95 Add
052 784-5594 BRKT:MT:CBL £6.24 Add
053 746-0928 CHUTE-CONTROL CABLE £74.39 Add
054 746-0929 CABLE-CHUTE CNTL £74.39 Add
055 43085-AF Bolt, Hex 5/16-18 x 1-1/2" £3.59 Add
056 710-0896 SCREW WITH WASHER ST £3.55 Add
057 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
058 684-0061 CRANK-ASS`Y CHUTE £50.63 Add
059 784-5149 JOINT BLOCK ASSEMBLY N/A POA
060 43850-AF ROLL PIN £5.87 Add
061 43070-AF Washer, 3/8" £3.38 Add
062 24300-AF CHUTE CRANK BRACKET, REAR N/A POA
063 24299-AF CHUTE CRANK BRACKET, FRONT N/A POA
064 63767-AF IDLER ARM ASSEMBLY N/A POA
065 24286-AF SPACER, PIVOT N/A POA
066 63762-AF IDLER BRACKET ASSEMBLY N/A POA
067 24472-AF BUSHING N/A POA
068 756-0405 IDLER:FLAT:W/FLANGE 3.75"O.D. £67.75 Add
069 47044-AF PULLEY, V TYPE 4" N/A POA
070 47064-AF V-PULLEY, 5.9" N/A POA
071 46982-AF PULLEY, V TYPE 5-1/2" N/A POA
072 738-0680 SHAFT N/A POA
073 750-0456 SPACER .790 ID X .347 LG. £6.91 Add
074 750-0660 SPACER £5.03 Add
075 714-0161 KEY:HI-PRO:3/16 x 5/8 £12.95 Add
076 741-0919B BALL BEARING £23.93 Add
077 08253B HOUSING, BEARING (OBSOLETE) N/A POA
078 15296A HOUSING, OPEN BEARING N/A POA
079 14088B SPACER, SPINDLE £20.51 Add
080 44377-AF Hex Bolt, 3/8-24 x 1" 44377 £3.51 Add
081 736-0247 F.I. WASHER £7.30 Add
082 43063-AF BOLT £3.56 Add
083 43054-AF Bolt, Hex 3/8-16 x 2" Lg. * 43054 £5.01 Add
084 43432-AF Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432 £3.51 Add
085 24571-AF SPACER N/A POA
086 46963-AF CHAIN N/A POA
087 43343-AF PIN COTTER £4.72 Add
088 43055-AF COTTER PIN £5.23 Add
089 46959-AF SPRING N/A POA
090 47676-AF V-BELT, AUGER N/A POA
091 46960-AF V-BELT, DRIVE N/A POA
092 24295-AF CLUTCH & PULLEY FRAME N/A POA
093 731-0851A FLANGE KEEPER 5.0 DIA £9.50 Add
094 1643-60 KNOB N/A POA
095 24482-AF ANTI-ROTATION BRACKET N/A POA
096 43661-AF HEX BOLT £2.69 Add
097 43088-AF FLAT WASHER £2.69 Add
098 43079-AF CARR, BOLT 5/16-18 X 1 £2.79 Add
099 43083-AF HEX NUT £2.87 Add
100 738-0234 SCREW-SHLD £8.76 Add
101 43038-AF STECKER (AF-43038) 43038 £5.57 Add
102 710-0891 SHEAR BOLT 516-18x1.75" £5.99 Add
103 738-0492 SHF:CONT N/A POA
104 714-0135 KEY-WOODRUFF NR.91,1/4X3/4" £5.26 Add
105 741-0494 BUSHING £7.37 Add
106 736-0250 WASH:FLAT:1.00x1.75x.107 £5.39 Add
107 741-0192 FLANGE BEARING N/A POA
108 46703-AF SCREW, SELF TAP 5/16-18 X 3/4" (SEE ALSO ITEM #5 PAGE 38) N/A POA
109 05845A HOUSING-BRG N/A POA
110 63572-AF HANGER BRACKET ASSEMBLY, R.H. N/A POA
111 63571-AF HANGER BRACKET ASSEMBLY, L.H. N/A POA
112 23924-AF FRAME BRACKET, R.H. N/A POA
113 23923-AF FRAME BRACKET, L.H. N/A POA
114 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £3.73 Add
