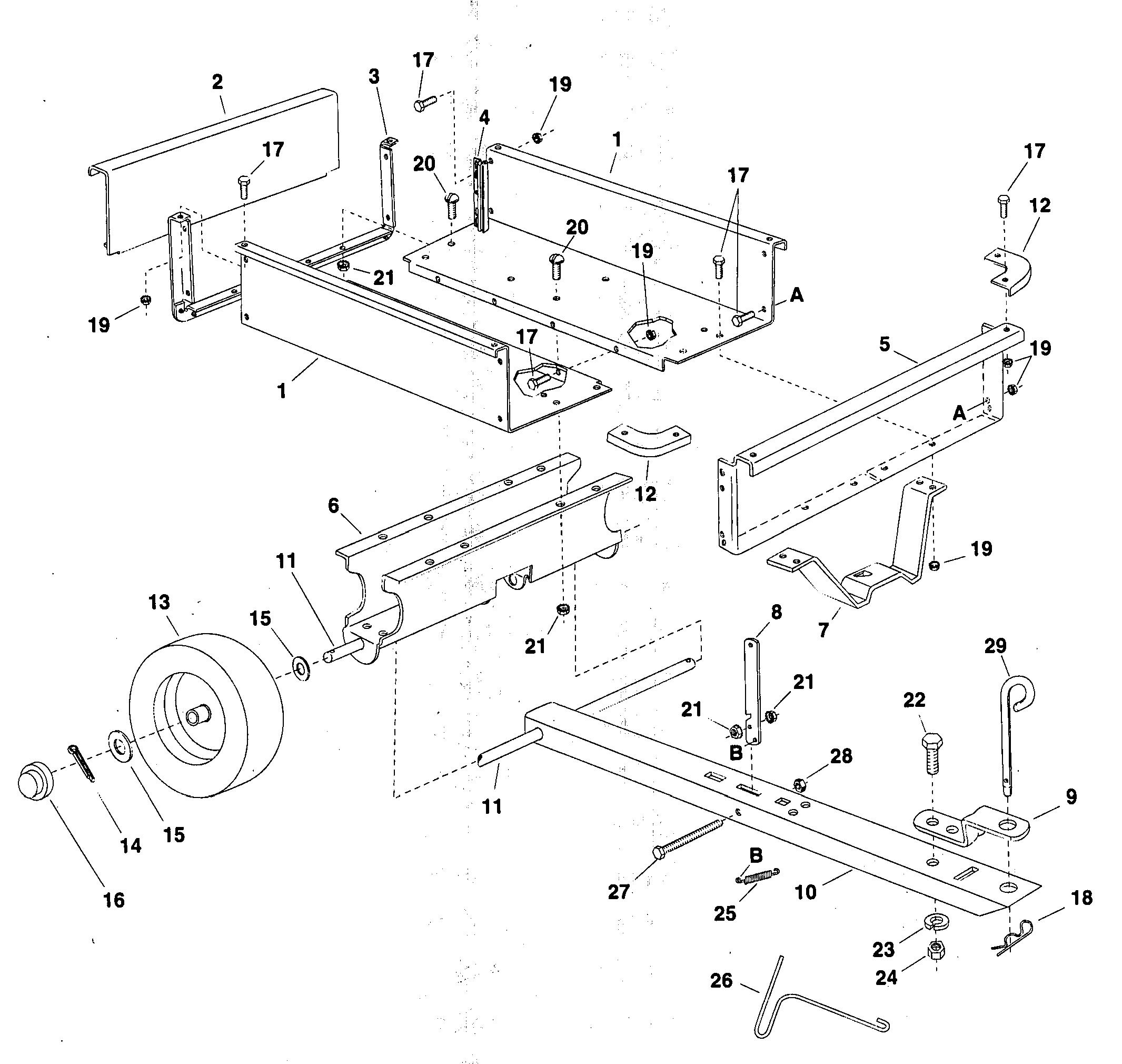

FG716_0100

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	24756-AF	DRAW BAR TONGUE	£97.16	Add
	24756-AF	DRAW BAR TONGUE	£97.16	Add
	23984-AF	CART BODY (425)	£321.52	Add
	23984-AF	CART BODY (425)	£321.52	Add
	48452-AF	OWNER'S MANUAL	N/A	POA
001	24096-AF	CART BODY	N/A	POA
001	24096-AF	CART BODY	N/A	POA
002	23504-AF	Tailgate 23504	£127.46	Add
003	62457-AF	Tailgate Reinforcement Bracket 62457	£103.07	Add
004	23548-AF	Tailgate Guide 23548	£11.15	Add
005	23490-AF	Front Panel 23490	£172.00	Add
006	23487-AF	Wheel Support 23487	£240.05	Add
007	24497-AF	LATCH STAND	£23.24	Add
008	24498-AF	LATCH LOCK LEVER AF-24498	£10.71	Add
009	23014-AF	HITCH BRACKET	£31.67	Add
010	24750-AF	DRAW BAR TONGUE	N/A	POA
010	24750-AF	DRAW BAR TONGUE	N/A	POA
011	24897-AF	AXLE	£90.04	Add
012	23484-AF	Front Corner Cap 23484	£21.81	Add
013	69599-AF	WHEEL ASSY	£257.23	Add
014	43093-AF	COTTER PIN	£3.11	Add
015	43601-AF	WASHER	£8.99	Add
016	731-0484A	HUB CAP	£5.05	Add
017	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
017	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
018	43343-AF	PIN COTTER	£4.20	Add
019	46978-AF	NUT	£3.49	Add
019	46978-AF	NUT	£3.49	Add
020	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
021	46980-AF	NUT	£3.41	Add
022	43001-AF	HEX BOLT (RED)	£3.49	Add
023	736-0169	L. WASHER	£2.89	Add
024	712-0798	HEX. NUT	£7.61	Add
025	47408-AF	SPRING	£3.79	Add
026	47622-AF	Spring AF-47622	£4.53	Add
027	47407-AF	Hex Bolt, 5/16-18 x 3-3/4" * 47407	£4.20	Add
028	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
029	23353-AF	HITCH PIN	£19.20	Add
